NetBrain domain is a workspace to separate areas, branches or departments to simplify network management for an enterprise, as a subset of a tenant. The landing page of your domain is displayed as soon as you log in.

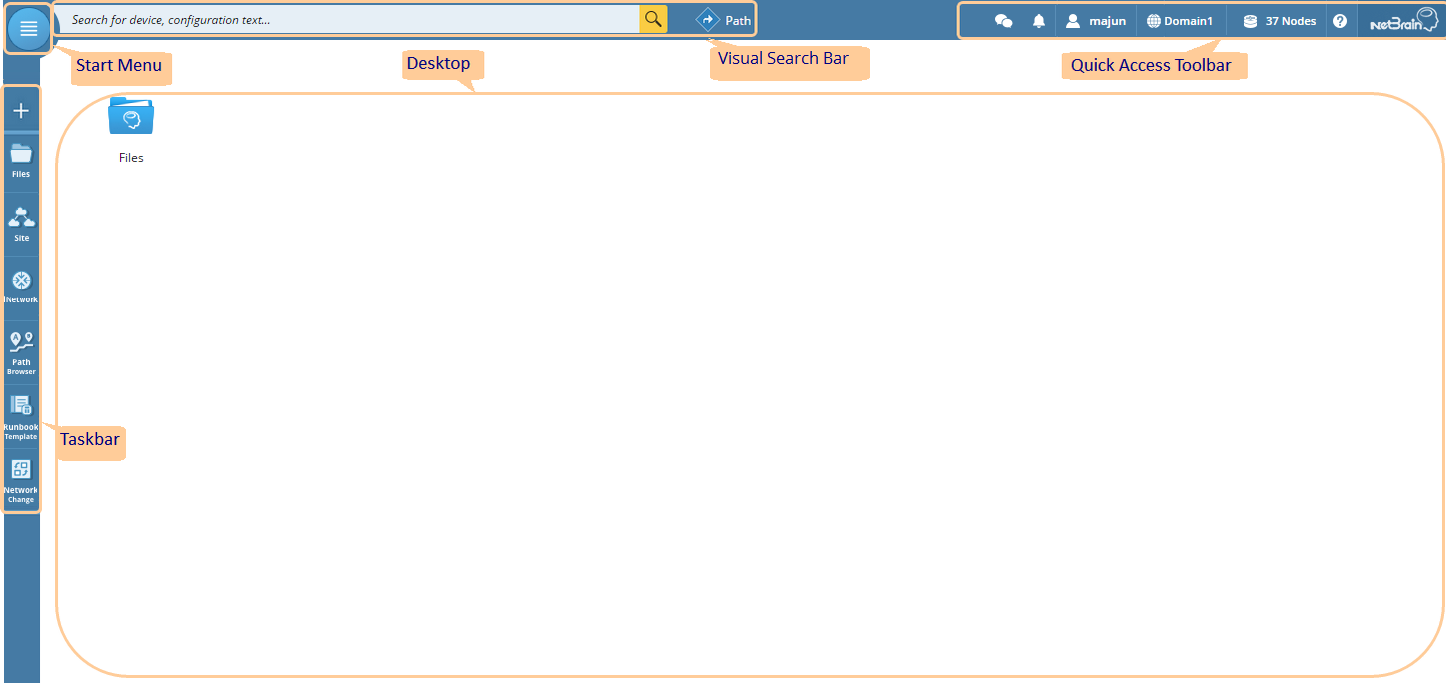

It includes the following parts:

▪Taskbar

▪Start Menu

▪Desktop

▪Visual Search Bar

▪Quick Access Toolbar

Taskbar

The taskbar is located at the leftmost and includes the following menus.

Icon

Description

Create a map, dashboard, runbook, Qapp, parser, Gapp, or network change task from scratch. See New Map, New Dashboard, New Runbook, New Qapp, New Parser, New Gapp, or New Network Change Task for more details.

Organize files and folders. See Files for more details.

Browse devices by site, browse site details, and so on. See Site for more details.

Browse your network resources. See Network Pane for more details.

Browse and manage saved paths. See Path Browser for more details.

Browse and manage runbook templates. See Runbook Template for more details.

Manage network changes in the system. See Managing Network Changes for more details.

Start Menu

Click the icon on the top of the taskbar. The start menu opens as follows:

You can click an icon to start the application, or click the icon to pin the application to your desktop.

Desktop

Desktop is your personal space to visually organize your frequently used map files, dashboard files and group them into a folder. You can also send file shortcuts or pin applications to the desktop for quick accesses. See Desktop for more details.

Visual Search Bar

Use NetBrain's powerful search functionality to quickly find your interested objects in your domain, including devices, maps, paths, sites and much more. See Search for more details.

Quick Access Toolbar

The quick access toolbar is located at the upper-right corner of your Thin Client.

Each icon and menu option is described as follows:

Icon

Description

Get notifications for map and dashboard collaboration from your colleagues, such as sharing a map or dashboard, and transfer editing rights of a map or dashboard.
See Collaboration for more details.

Get notifications of events, such as errors and warnings in tasks and activities.
See Event Console for more details.

▪User Profile — maintain your personal information.

▪System Management (only for system administrators) — redirect to the System Management page.

▪Change Password — available only if you have the privileges to change your password.

▪Log Out

▪Go to more tenants and domains, or create your domain.
The hyperlink Manage Domain is available only if you have the role of the domain administrator, or the privileges of domain management.
See also: Selecting a Domain, Creating a Domain.

▪Get to know the licensed node count and consumed node count by device type, as well as the licensed seat count and the newly created objects in 30 days.

Note: SDN licensed ports and CPU processors require additional purchase.

▪System Health — monitor NetBrain servers and services. It is available only when Service Monitor Agent is installed. See Monitoring Servers and Services for more details.

▪Help — visit online help.

▪Support — redirect to NetBrain Website for support.

▪About NetBrain — view version number and legal notice.



See also:

▪Tenant

▪One-IP Table
