This section introduces how to create a network change task as well as the nodes and their functions involved in the network change task.

Tip: Before creating a network change task, ensure that you have sufficient privilege. See Access Controls for more details.

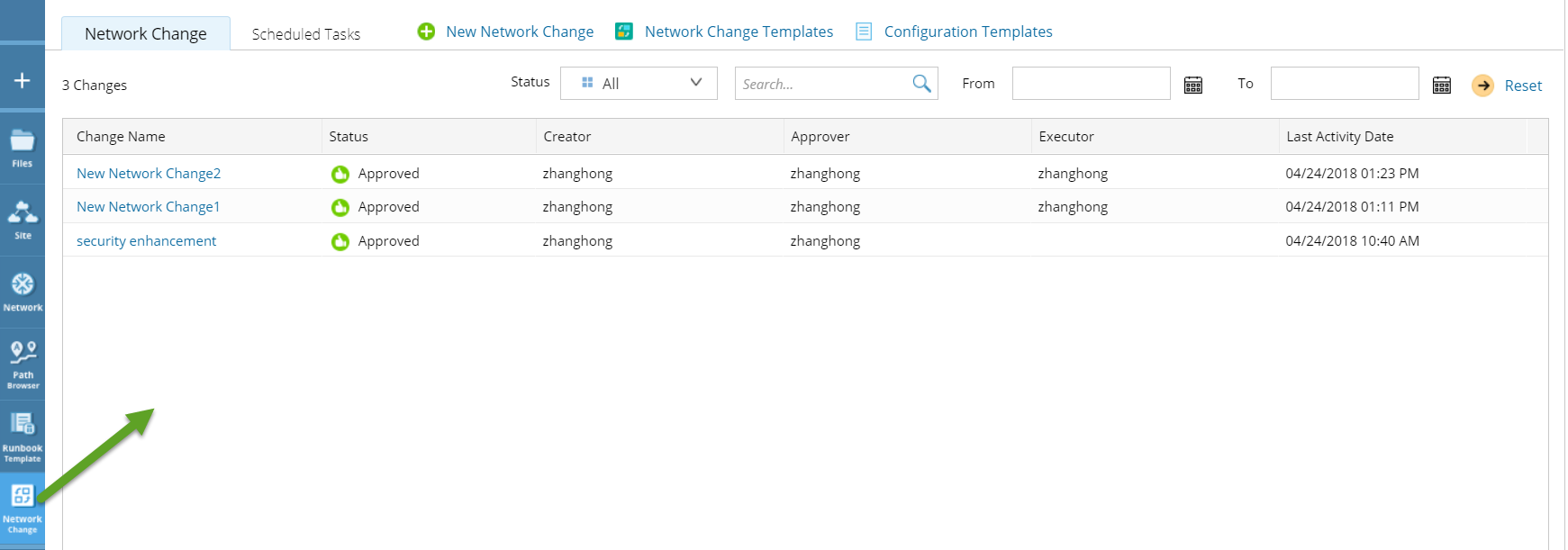

1.Click Network Change on the taskbar.

2.In the Network Change pane, click New Change.

Tip: The Network Change pane displays all network change tasks created in a domain.

3.In the New Network Change dialog, enter the task name, select a template and click OK. The Runbook pane opens. Then you can define the network change task node by node in the runbook.

▪Defining the Change node

▪Defining the Benchmark Before node

▪Defining the Execute Node

▪Defining the Approval Node

▪Defining the Benchmark After node

▪Defining the Compare node

▪Adding and Defining a Change Note Node

4.Click the icon to save the map. The network change task is saved in the map.
