Data Tables

In the Device Details pane, you can perform the following actions:

Supported Data Tables

#
Data Table
IPv4 Supportability
IPv6 Supportability
1
Route Table
Yes
Only support data retrieval via CLI
2
ARP Table
Yes No
3
MAC Table
Yes
No
4
NDP Table
Yes
Only support data retrieval via CLI
5
NCT Table
Yes
Only support data retrieval via CLI

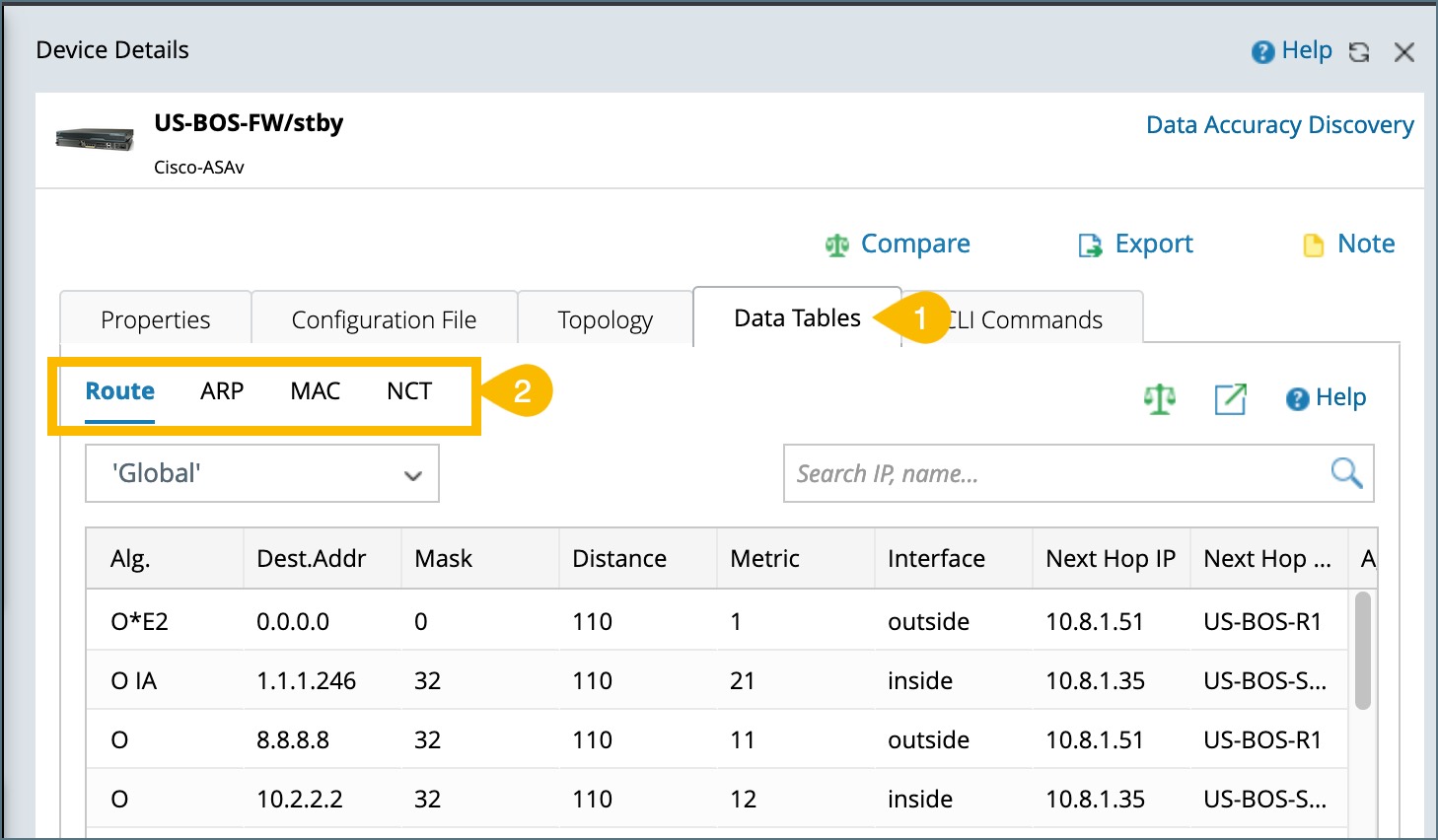

View Data Tables in Device Details Pane

  1. In the Device Details pane, select the Data Tables tab. Only the available data tables for the target device are listed.
  2. Select the table type you are interested in to view detailed data.

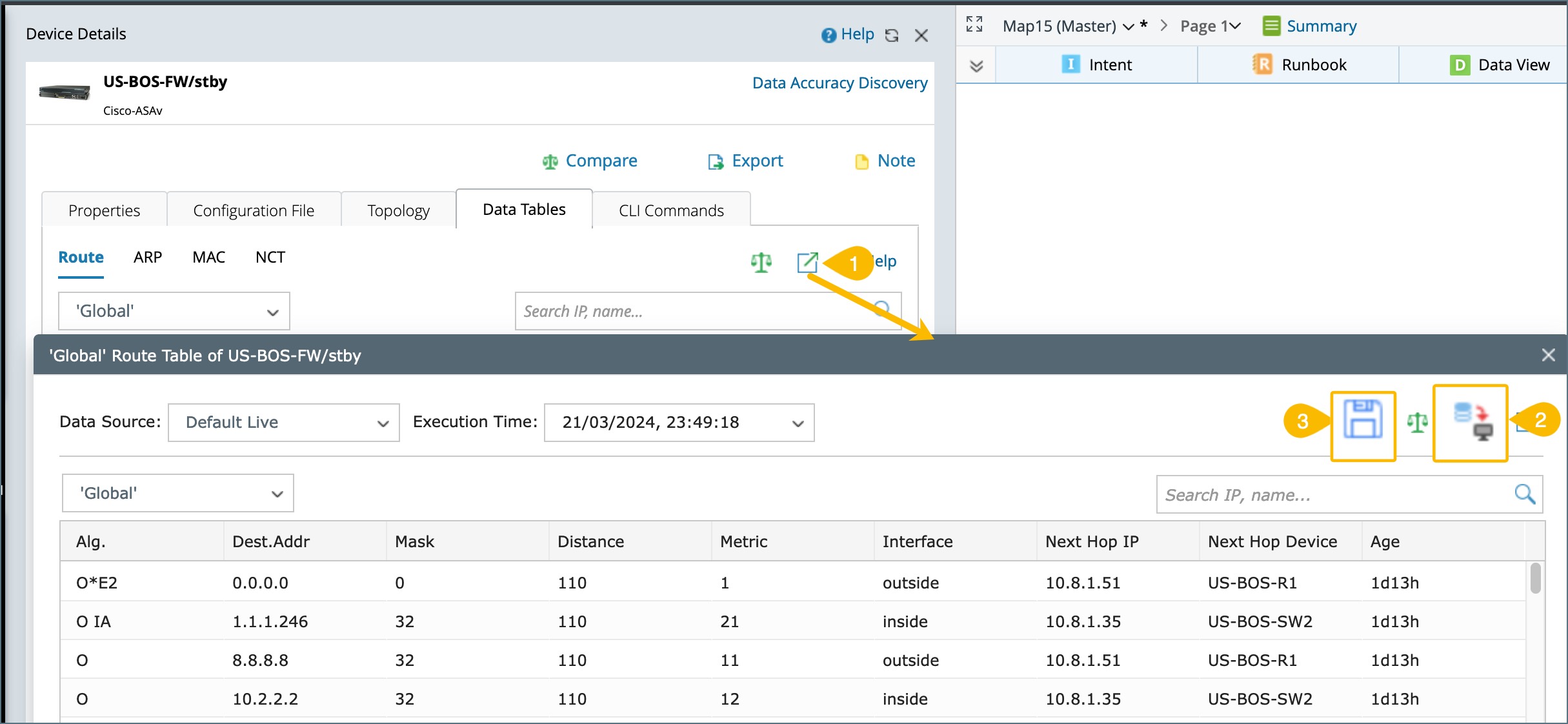

Retrieve Data Tables from the Live Network

  1. In the Device Detail pane, click to open the pop-up window.
  2. Click to retrieve live configuration.
  3. Click to save the newly retrieved data table to the current baseline.


  4. click the icon to review the original text data rather than in the table view,

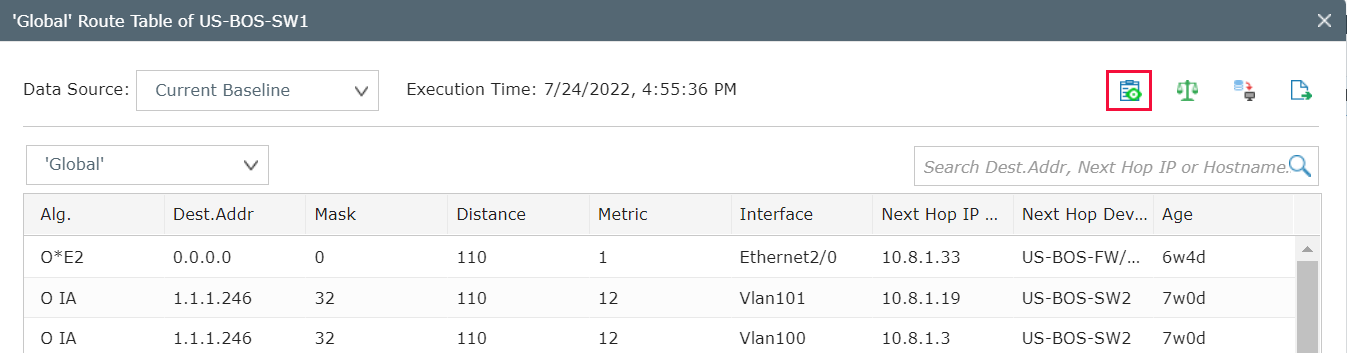

    5. Graphical user interface, tableDescription automatically generated

    Information

    		Tip: To save the data table to the current baseline, close the window and open it again to enable the icon .

Compare Historical Data Tables

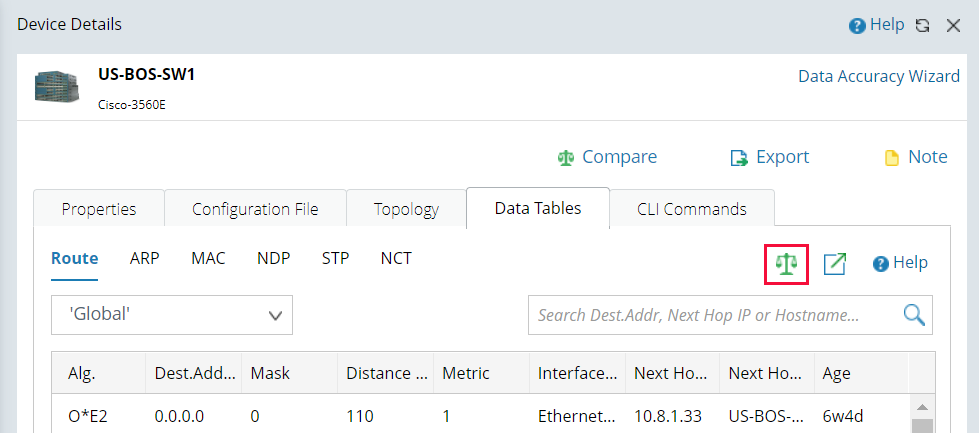

  1. Click in the Device Details pane to open the Compare window for Data Table.

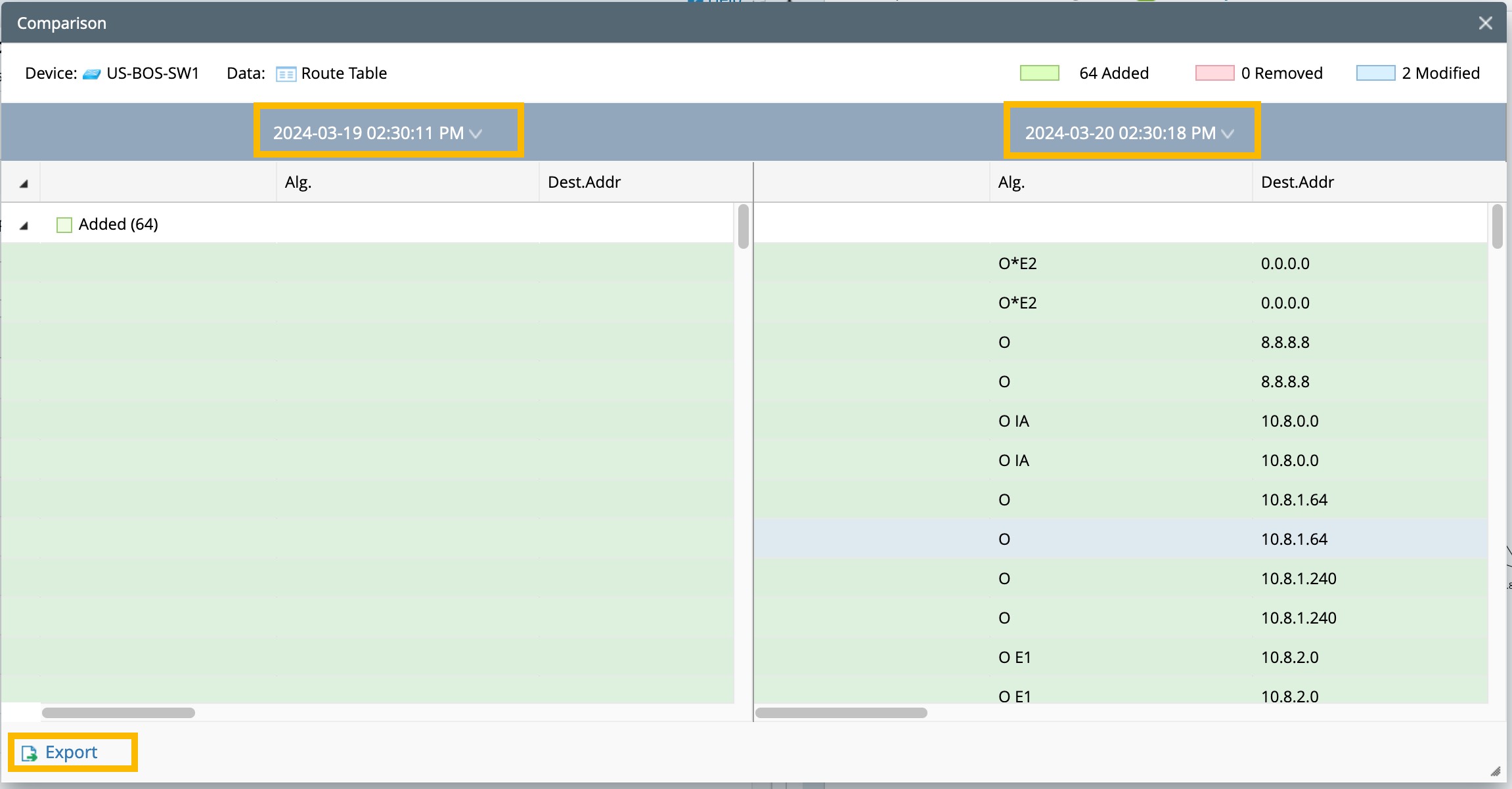

Graphical user interface, text, application, email Description automatically generated

  1. You can select data tables from different times to compare. Exporting the comparison result is also available.
