CLI Commands

In the Device Details pane, you can perform the following actions for CLI Commands:

View CLI Command Outputs in Device Details Pane

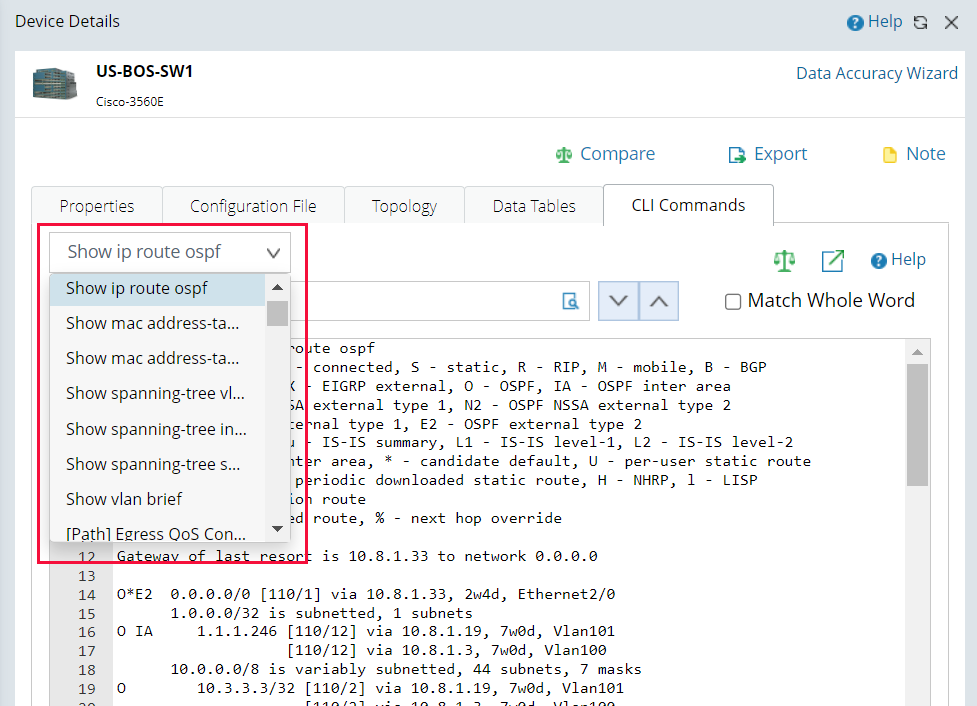

  1. In the Device Details pane, select the CLI Commands tab. The outputs of the first CLI command saved in the Current Baseline for the target device are displayed by default.

    2. Graphical user interface, text Description automatically generated

    Information Tip: The CLI command outputs saved in the Current Baseline can be customized in a scheduled benchmark task. To add more CLI cmd to the device, go to benchmark and load the CLI Template accordingly. See Benchmark Task Settings and CLI Command Template for more details.
  2. Select another CLI command from the drop-down list to navigate to its outputs.

Search Keywords in CLI Command Results

For CLI Command Results, you can search keywords:

  • Normal Search: Type a keyword in the search bar, and the system will highlight all words containing the whole or partial keyword. You can use to easily browse the next or the previous highlighted items.
  • Match Whole Word: Type a keyword in the search bar, and the system will only highlight the words exactly matching the whole keyword. You can use to easily browse the next or the previous highlighted items.

Retrieve CLI Command Results from the Live Network

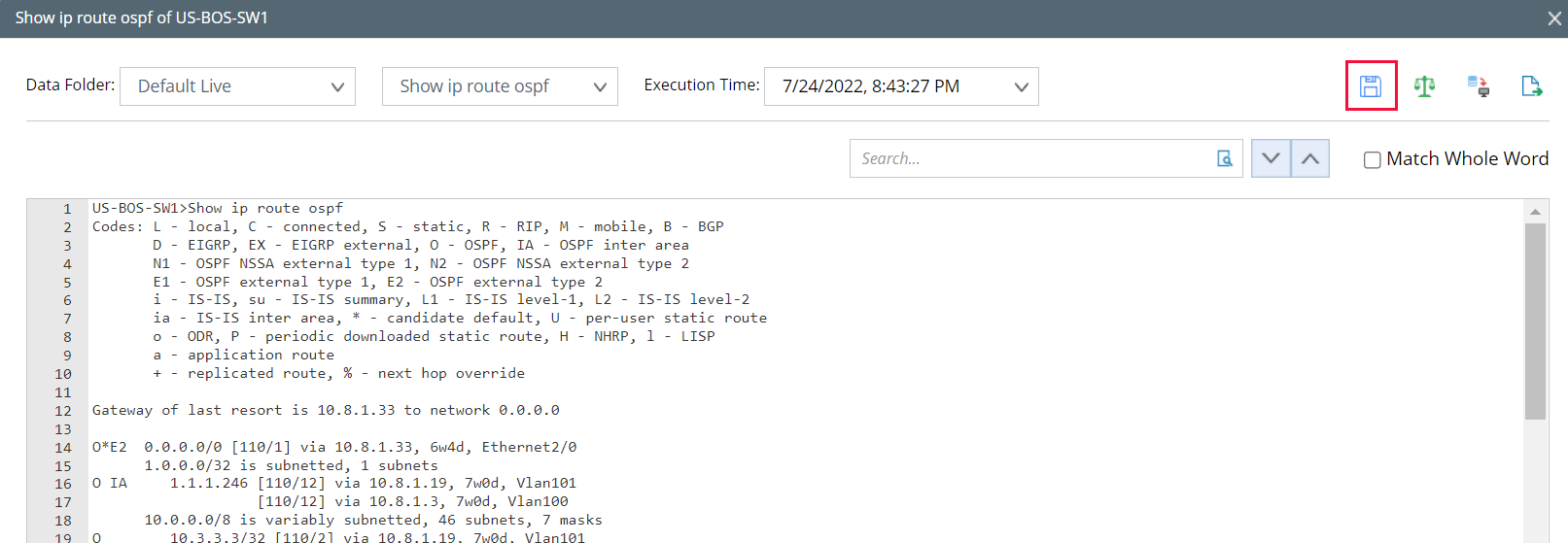

  1. In the Device Detail pane, click to open the pop-up window.
  2. Click to retrieve live configuration.
  3. Click to save the newly retrieved data table to the current baseline.

Graphical user interface, text, application, email Description automatically generated

Comparing Historical CLI Command Results

  1. Click in the Device Details pane to open the Compare window for CLI Command Results.
  2. You can select the CLI Command Results from different times to compare.

    3. Graphical user interface, text, application, email Description automatically generated

    Information Tip: You can use the Manual Tag function to help you find the data you want. When you manually add tags to data, you can filter out the data with a manual tag.

    Graphical user interface, application Description automatically generated

  3. Use to find the next changed item. You can also export the comparison result.

    4. Graphical user interface, text, application, email Description automatically generated
