Schedule CLI Command allows you to benchmark certain CLI commands on specified devices. With these CLI historical data, network engineers could view and compare the CLI result data to speed up the troubleshooting process and reduce MTTR.

Note: The Schedule CLI command is a part of Essential module and is not subject to any license restrictions, however the frequency settings will be affected by the Intent-based Automation (IBA) license. See Defining Timer-based Flash Probe for more details.

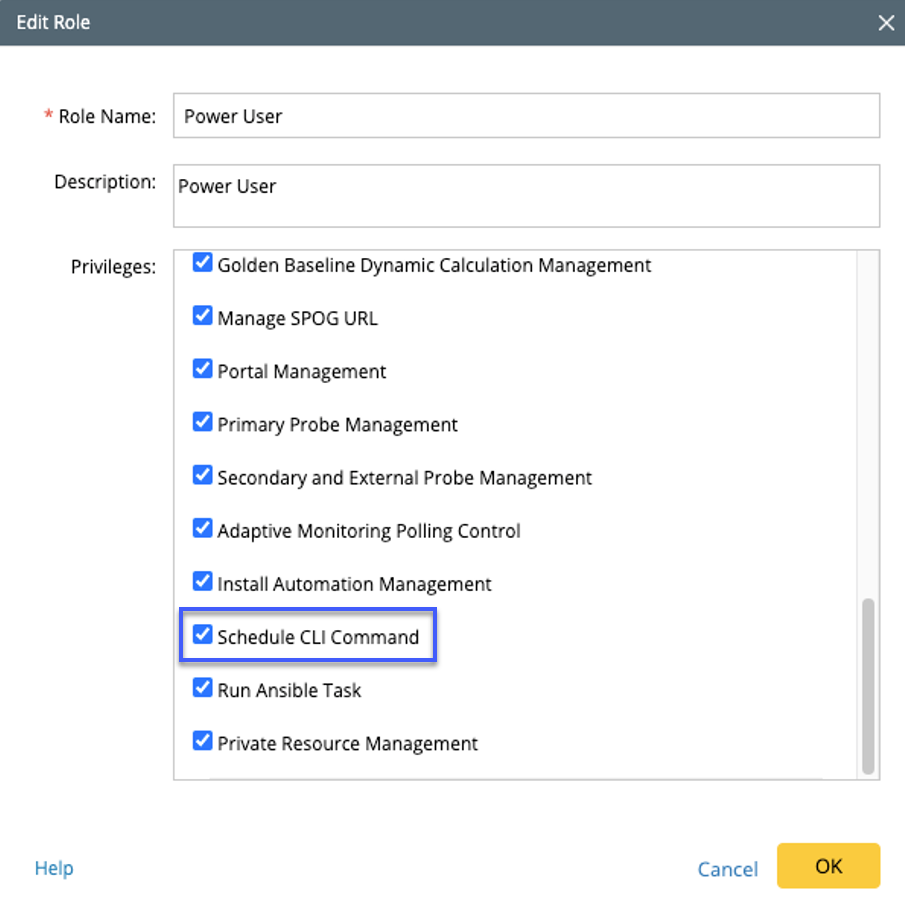

Note: The privilege option Schedule CLI Command can be used to control which users can use schedule CLI function. See Managing System Users Accounts for more details regarding how to manage user privileges.

Key User Flow

1.Define CLI commands and frequency: Scheduled CLI commands are supported by both NetBrain Workstation and standalone Smart CLI application. See Scheduling CLI Command on Single Device and Scheduling CLI Command on Multiple Device for more details.


2.Retrieve CLI commands: The system will execute the respective CLI commands automatically based on the frequency specified by the scheduled CLI. Refer to Retrieve CLI commands for more details.

3.Use CLI results: After the CLI command results are retrieved, they will be saved in the Front Server Data Engine and utilized by features such as Compare CLI result, View CLI result. The typical use cases of leveraging historical CLI results to troubleshoot network issues are as follows:

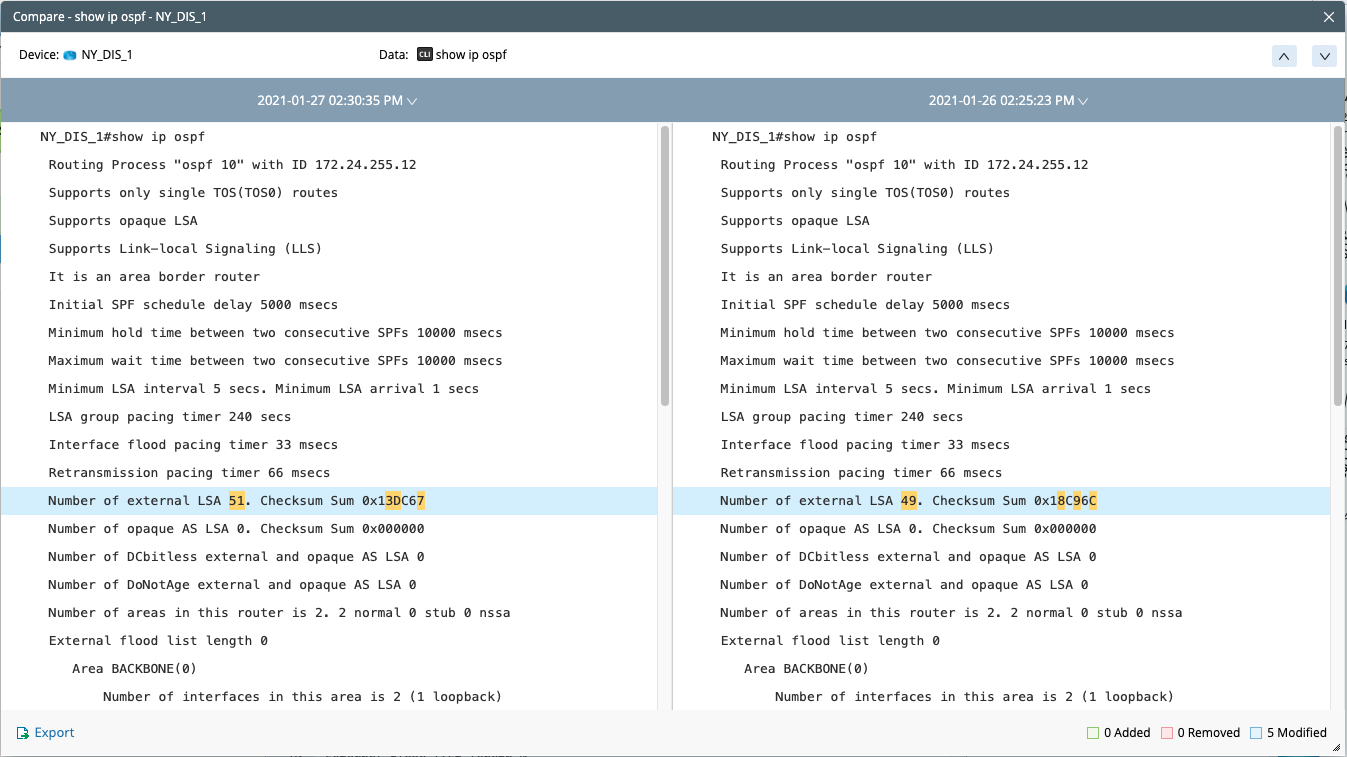

1)View and Compare CLI result in NetBrain Workstation: refer to Comparing Network Data Changes for more details.

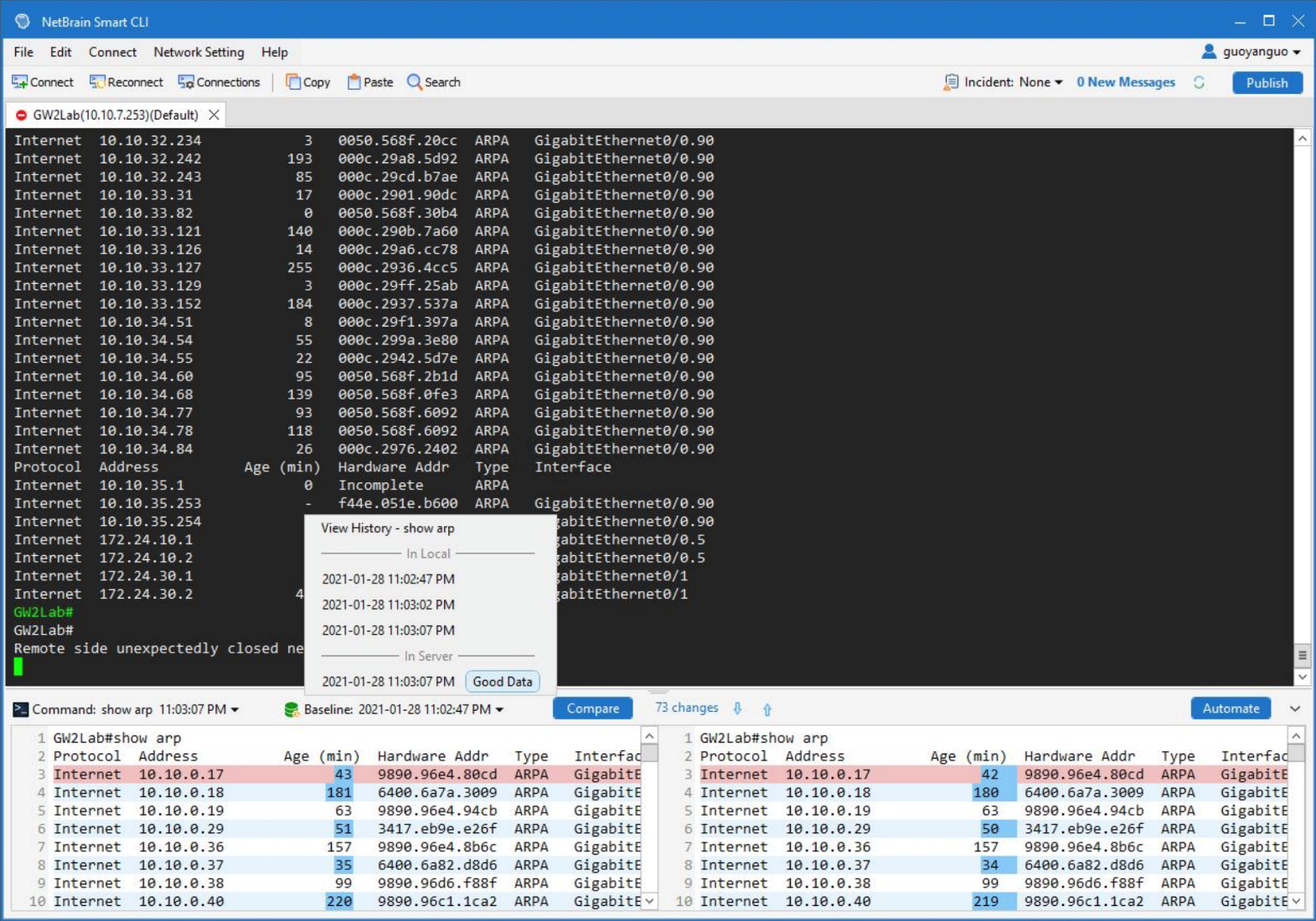

2)View and Compare CLI result in Smart CLI application: refer to Comparing with Historical Data to Detect Changes for more details.



See also:

Scheduling CLI Command on Single Device
Scheduling CLI Command on Multiple Device
Retrieve CLI commands
Comparing Network Data Changes
Comparing with Historical Data to Detect Changes
Auto Cleaning Historical Data
