Interface Properties

Both built-in and customized interface properties for different topology types are stored in the Global Data Repository. You can browse, modify, and export the values of interface properties for each device from the Device Details pane.

Edit an Interface Property Value

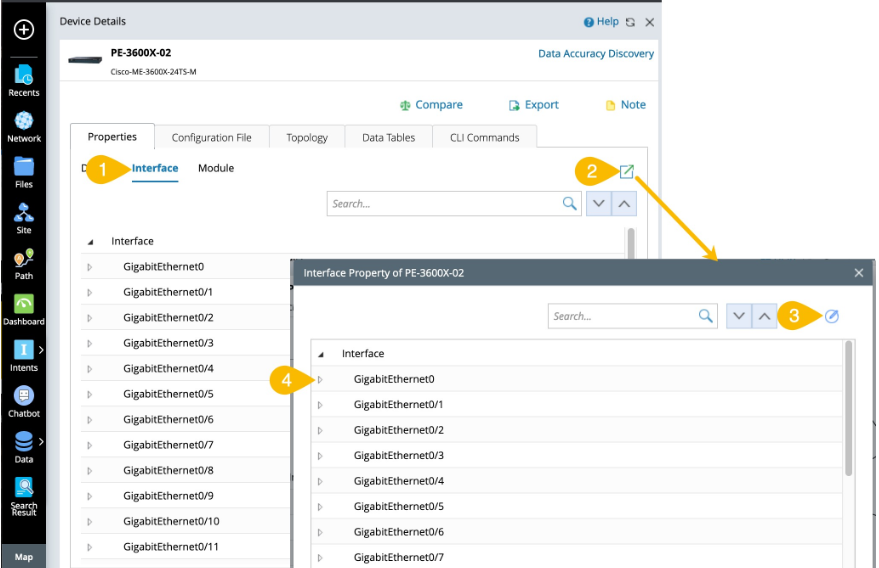

1. In the Device Details pane, select the Properties > Interface tab. The interface properties are listed by interface type.
2. Click the  icon to pop out the interface details in a pop-up dialog.
3. Click the icon to enter the editing mode.
4. To expand the interfaces you want to modify, open the interface by clicking .


5. Modify the values of the interface properties and click Save.



Note: The values of some built-in interface properties cannot be edited.

See also:

• Adding an Interface Type
• Adding a Device Property
• Built-in Interface Properties
