Draw Map Logic

Map and data view are the foundation for troubleshooting network problems. Intent data view can display the results of intent on the map, such as the network design and the intent status. An Intent Map is a map embedded in an intent to show the network relationship between devices of this intent.

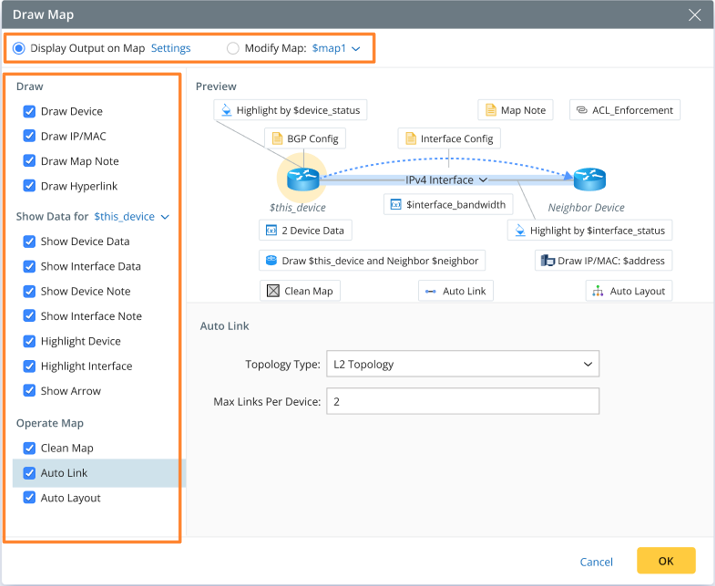

Users can add a Draw Map node to the intent diagnosis to draw map, create data view, and define the output map and intent map.

Operate Map

You can operate the selected map on Operate Map area.

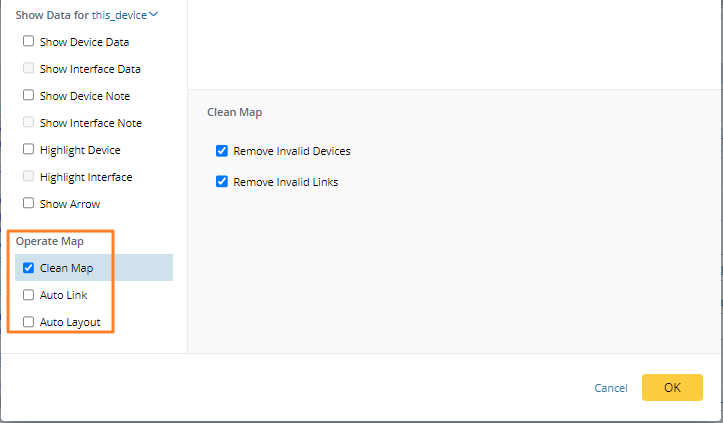

• Clean Map: Users can determine to remove the invalid devices and links.

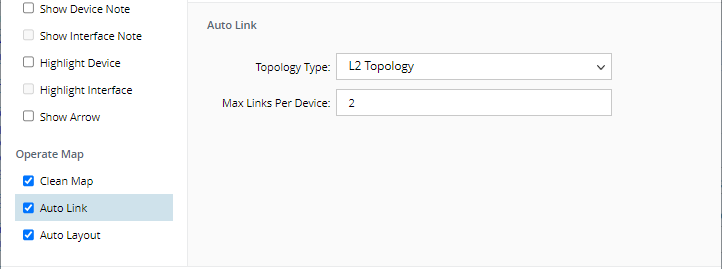

• Auto Link: Select the topology type for links and define the max links per device.

• Auto Layout: Auto layout the map with the circular style.
