Draw Map

In the Draw area, you can Draw Device, Draw IP/MAC, Draw Map Note, and Draw Hyperlink. And preview the effect on the Preview area.

Note: In the Draw area, all types of variables are supported. If a table/list variable is selected, the table/list name will be converted into a string for value passing.

Draw Device

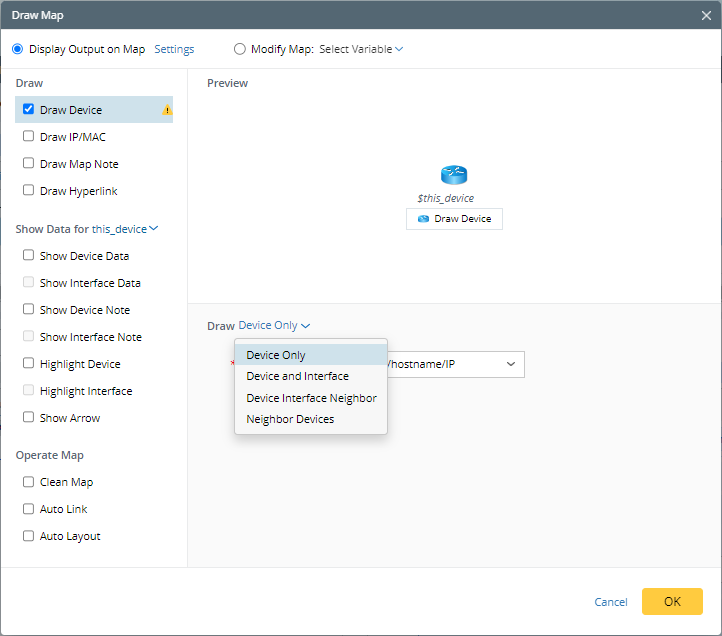

This node supports the following cases:

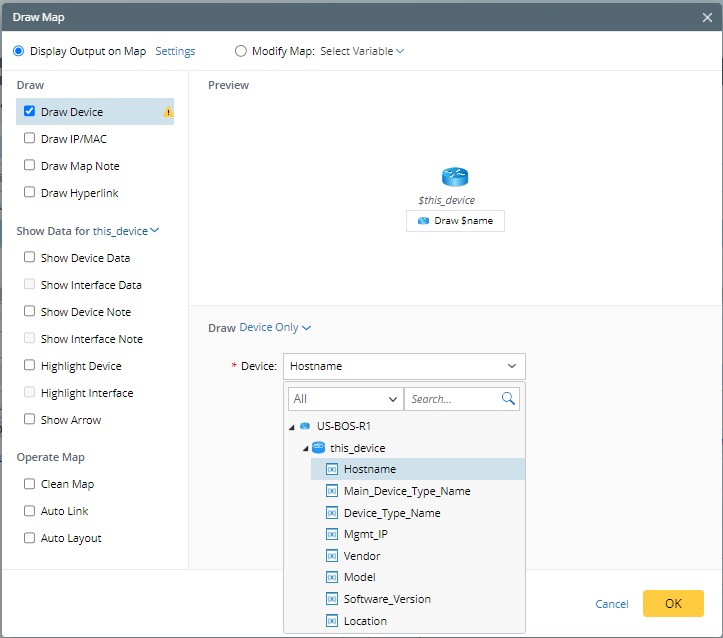

• Device Only: Only draw the device on a map, and its interface and neighbor are not included.



  Note: If you select an IP address in the Select Device field, it will be automatically converted to a device hostname.

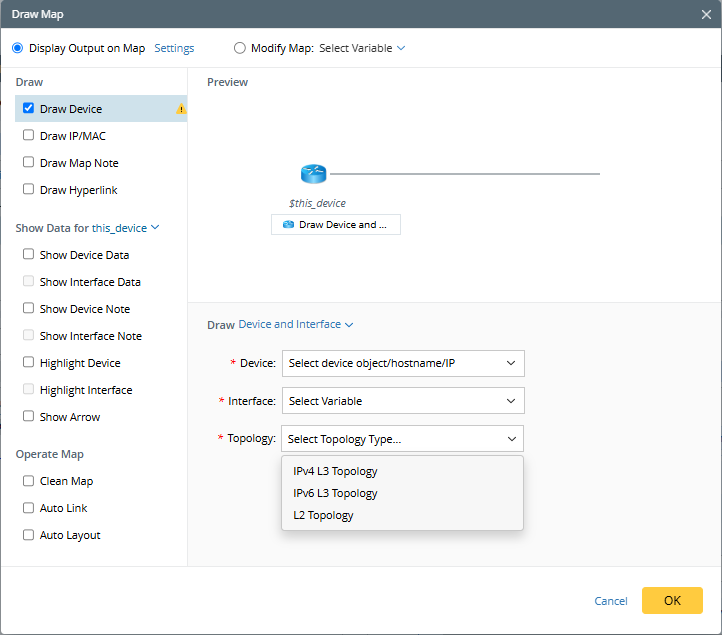

• Device and Interface: draw the device and interface contained in the interface variable, and the topology type can be selected.

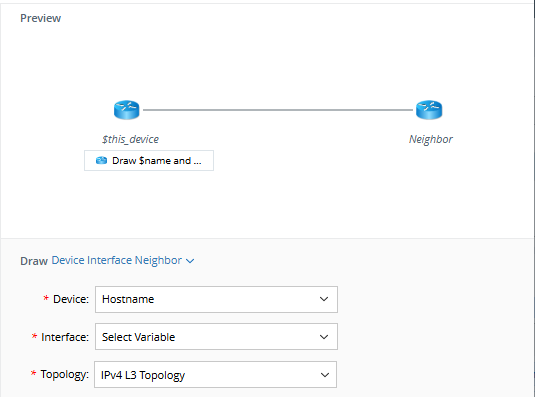

• Device Interface Neighbor: Draw the selected device and the interfaces corresponding to the selected topology, and the connected neighbors of such interfaces.

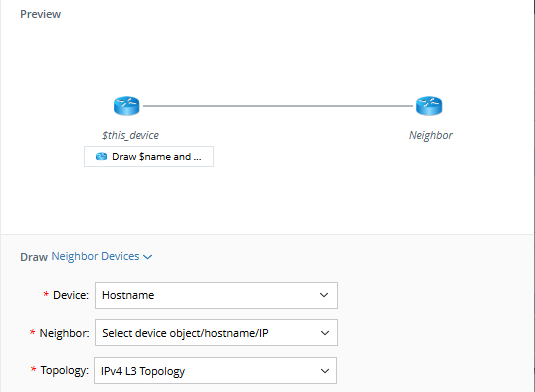

• Neighbor Devices: Draw the selected device and its neighbor if they are connected with the selected topology.

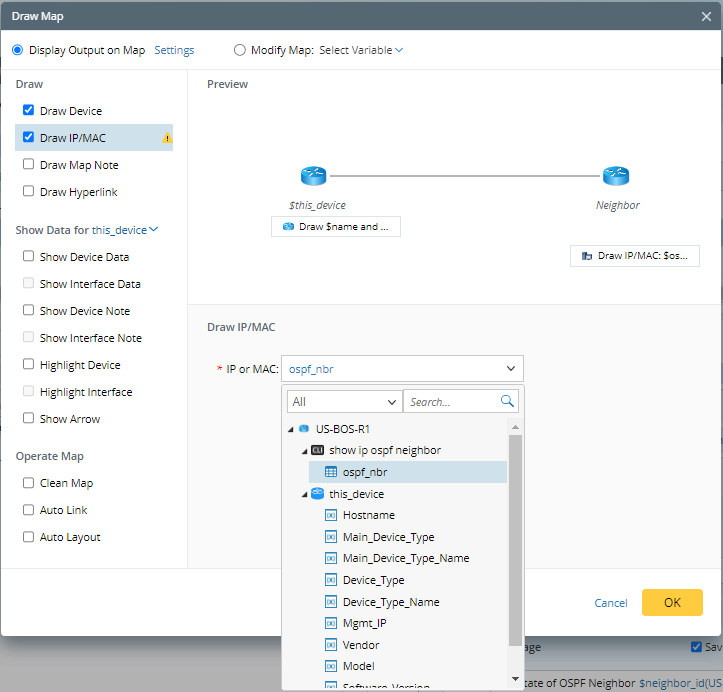

Draw IP/MAC

Enter or select the IP and MAC address here. The devices and switch ports corresponding to the IP/MAC in the one-ip table will be drawn on the map, and only the L2 topology is supported.

Draw Map Note

You can insert variables in the Title and Content fields. More note-style settings can be defined in Advanced Settings.

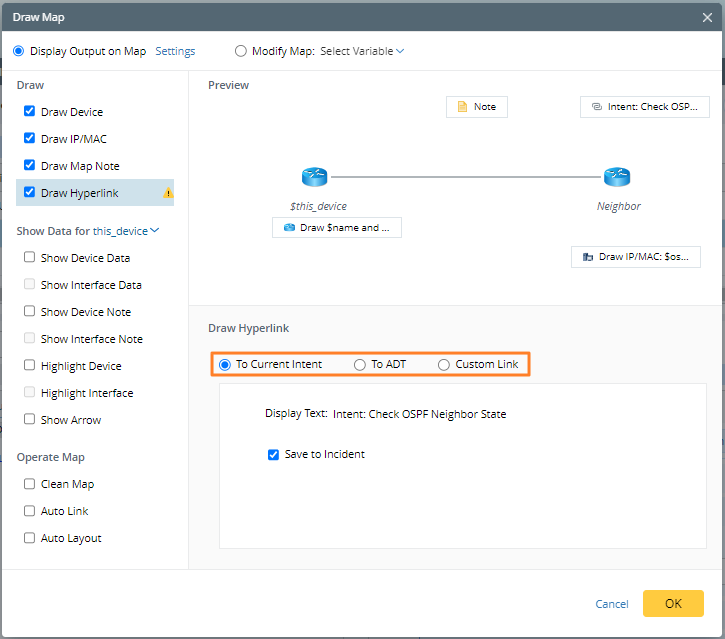

Draw Hyperlink

You can draw hyperlink to the current intent or selected ADT. Or customize your link.
