Create Intent Data View

The Intent Data View is aimed to display the diagnosis data and results on an intent map or any map, so you can view the network design or monitor the network status on the map. When define the Intent Data View, you are allowed to select other device objects instead of $this_device only. You can select another relevant device of $this_device, e.g. LWAP device of the current WLC device, or a virtual device of the current physical device.

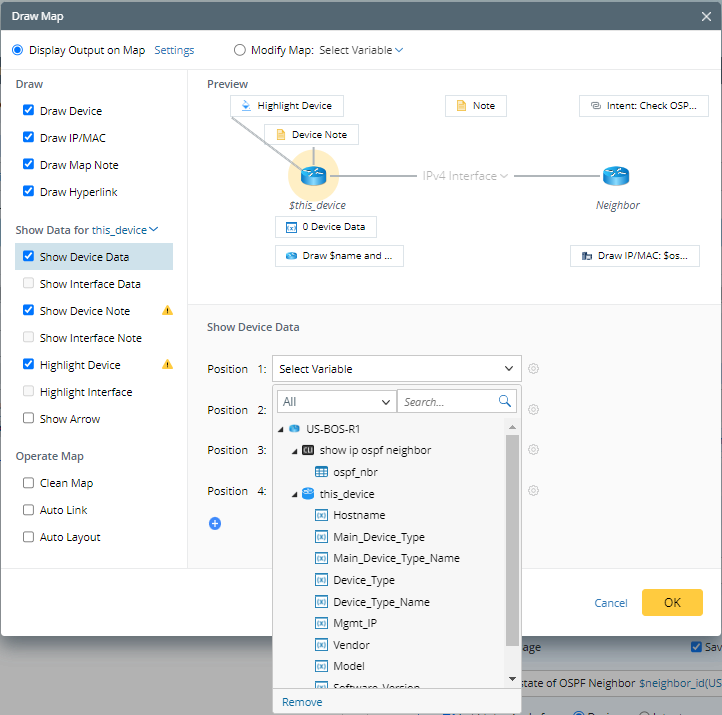

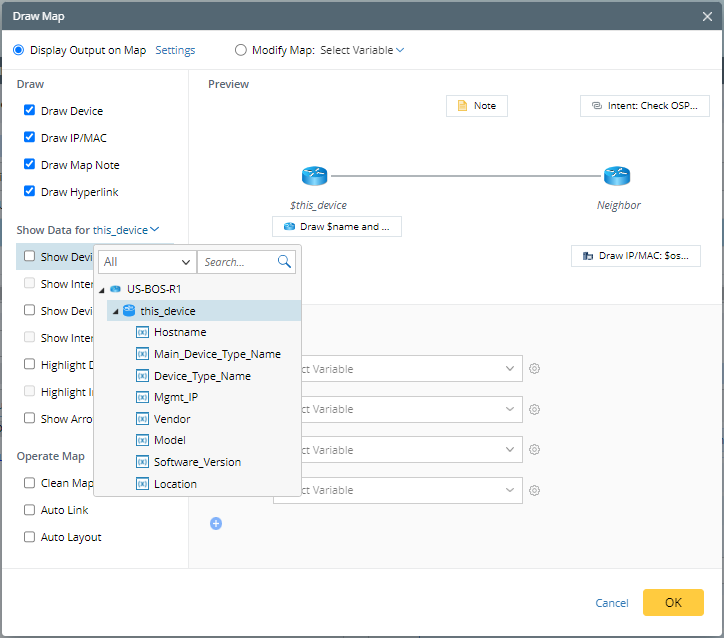

• Select device/interface data units to display in the intent data view.


• Define devices/interfaces highlight. You can define how to highlight the device/interface, such as the line style and line width. See Supported Variables for more details.

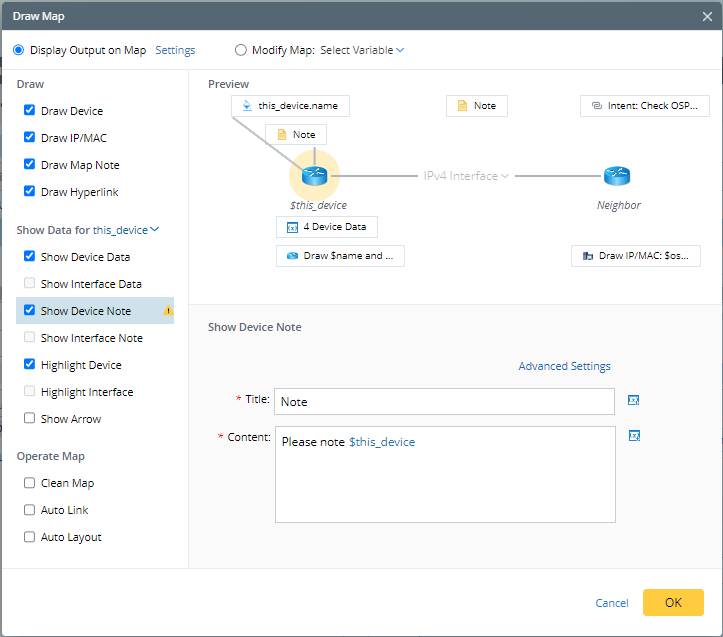

• Draw device/interface note.

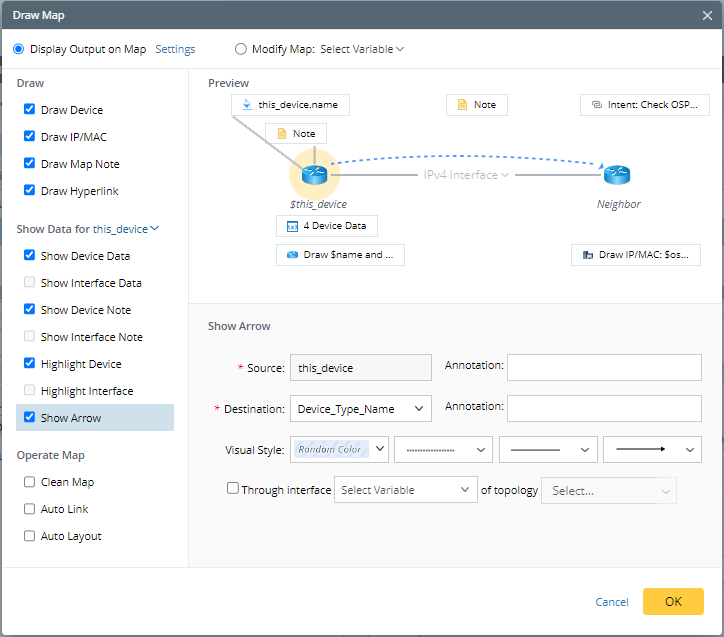

• Draw a relationship arrow between devices.



  Note: If you select an IP address as the Destination Device, it will be converted to device hostname automatically.

Supported Variables in Intent Data View

You are allowed to select almost all types of variables for intent data view. But for interface-level data (Show Interface Data, Show Interface Note, and Highlight Interface), you also need attention as follows:

• If this data view is in a loop, you can only select the column variables under the current table/list variable (the root nodes cannot be selected) and other single-value variables (single-value variables in parser, global variable, and local variable).
• If this data view is not within a loop, the three interface-level data options mentioned above are disabled.
