Map Page Settings

The Map Page Settings dialog box is a central place where you can set various options for map pages. You can go to Map > Map Page Settings from the Map Toolbar to set the map page options.

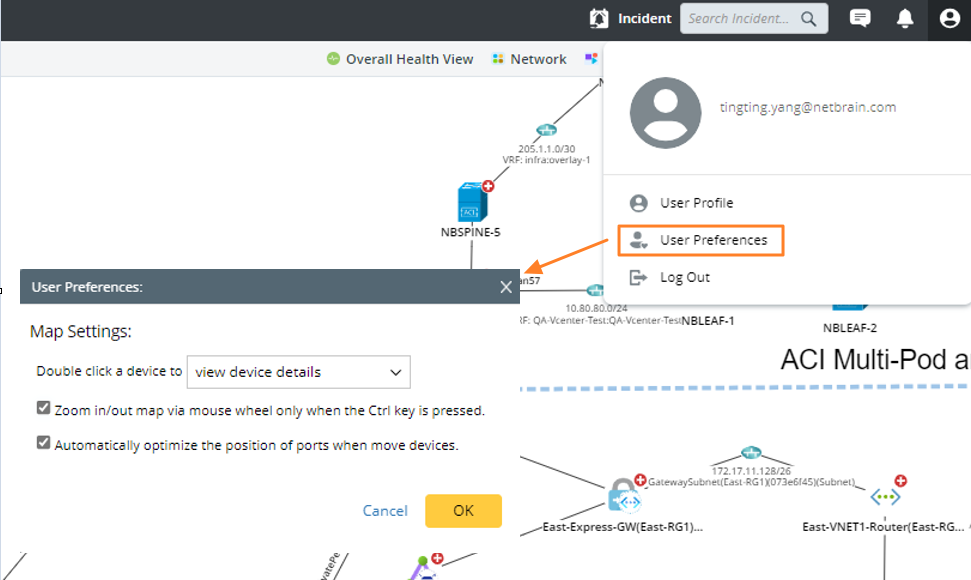

	Tip: In User Preference, you can define the behavior of double-clicking a device and whether scrolling the mouse wheel to zoom in/out a map requires pressing the Ctrl key.

The attributes of map settings are described as follows:

Table1 - Map Page Settings

Area

Content

Explanation

View Options for Data Unit

Data Unit

Includes device hostname, interface name, Device Note and the following:

Device/Link Position — where device properties can be defined in data view templates. See Creating a Data View Template for details.
Overflow Position — shown as under a device icon on a map.
Other Draw Shapes — the shapes drawn on a map. See Map Stencil for more details.

Display Ratio

Indicates the threshold of zoom controls for displaying a corresponding data unit on a map.

Zoom Step

Indicates the zoom controls changed by each zoom-in or zoom-out action. See Browse Device Data on Map for more details.

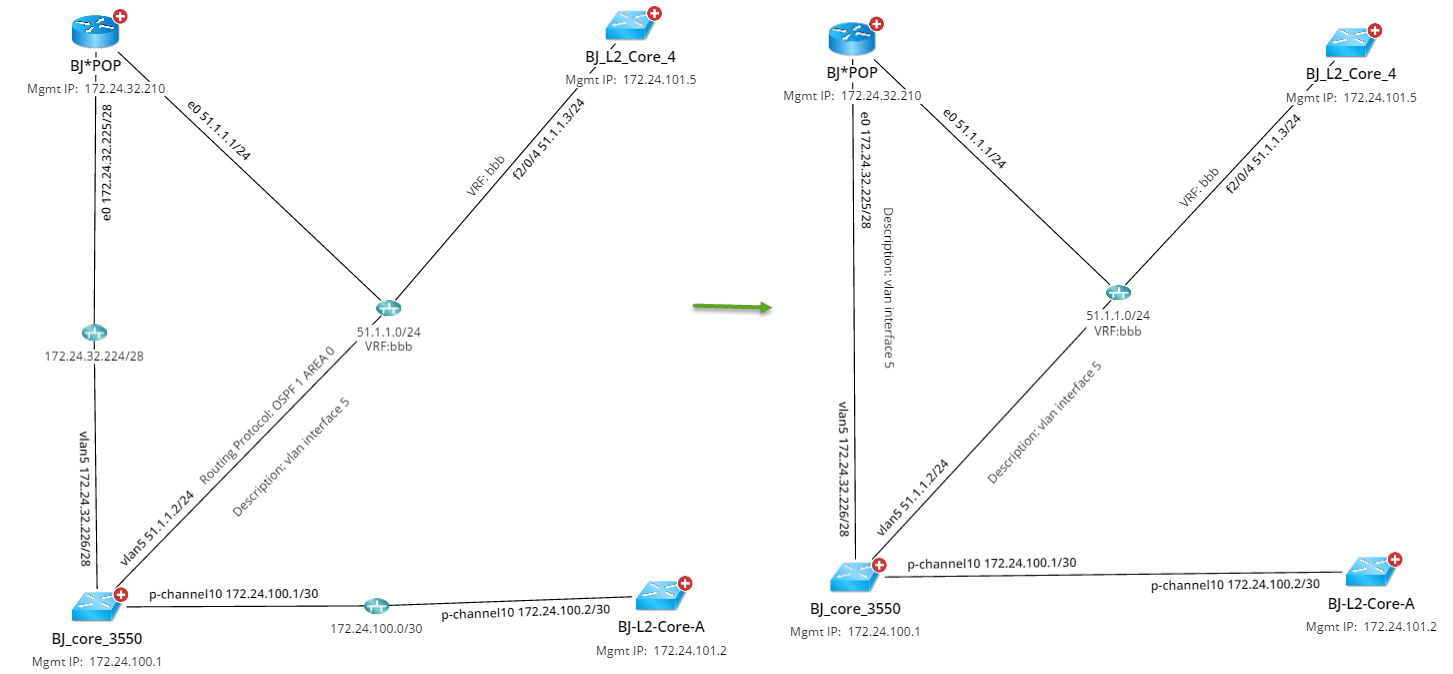

Hide media connected with two topology links only

Hide the media with only two topology links in total in the database, not the media with only two topology links drawn on the map.
Graphical user interface Description automatically generated with medium confidence

Graphical user interface Description automatically generated with medium confidence

Interactive & Backend Auto Link Settings

Default Auto Link:

IPv4 L3 Topology
IPv6 L3 Topology
L2 Topology
L3 VPN Tunnel
Logical Topology
L2 Overlay Topology

See Topology Type for details.

Link Option Between Two Devices:

Exclude Management Interface

Excludes management links from map while using the auto-link function.

	Note: This option has dependency with the execution of the built-in plugin Identify Management Interfaces through the basic system benchmark task.

Extend Links

A Random Link
All Found Links

Defines how many links are automatically drawn between devices.

Auto Link after Update Map

Always auto link all devices

Auto link all devices after the map is updated

Apply to Other Maps

Enables applying the auto link setting to existing maps/map pages

Device View on Expanded Style

A picture containing diagram Description automatically generated

One device type that is suitable for Layer 2 topology. You can point to a port or click a link to view its detailed information.

Interface Highlight Mode

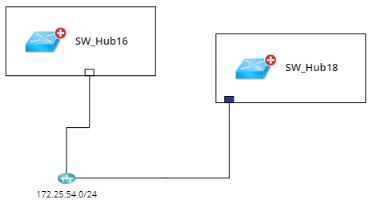

Highlight Link & Port

Highlight both link and port.
Diagram Description automatically generated

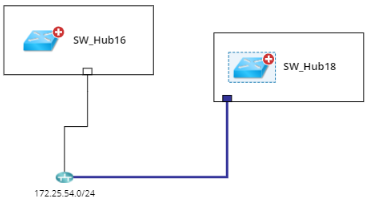

Only Highlight Link

Highlight link.
Diagram Description automatically generated

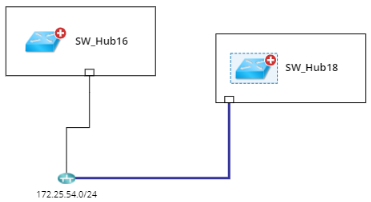

Only Highlight Port

Highlight port.
Diagram Description automatically generated

Enable Tip Window of Switch Port

Set to give tips for switch port.

Hide the Author and Time in the Note

Set to make the Author and Time invisible in the Note.

Map Background Color

Map Background Color
Set Color

Set the background color for a map.

Dynamic Grid

A Dynamic Grid will appear on the elements when dragging on the map. The L3 device can achieve horizontal/vertical alignment and spacing with another device by selecting and holding it and adjust it as needed. This guide supports multiple selections as well within the map.

	Note: For some map page settings, you can check Set as Default to keep the currents settings as default settings.

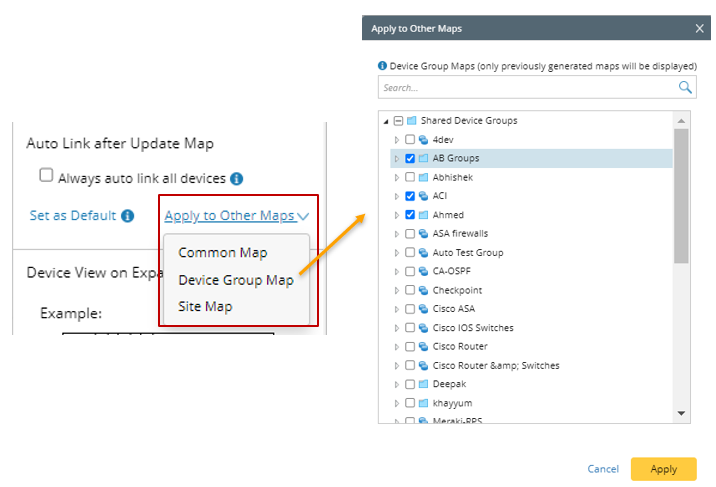

	Note: For some map page settings, you can apply the setting to other maps. Click Apply to Other Maps, then click one of the three map categories (Common Map, Device Group Map, Site Map) to select maps to apply the setting.
