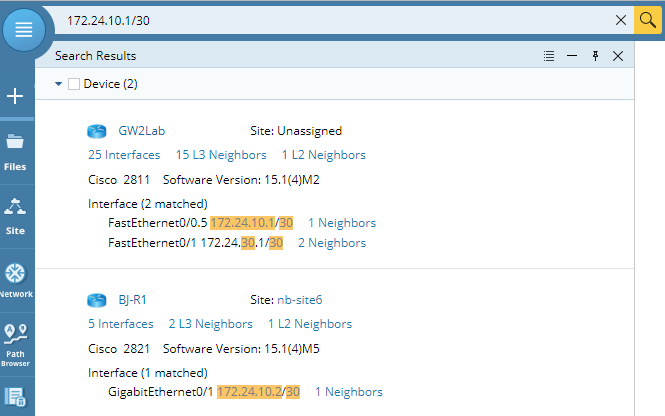

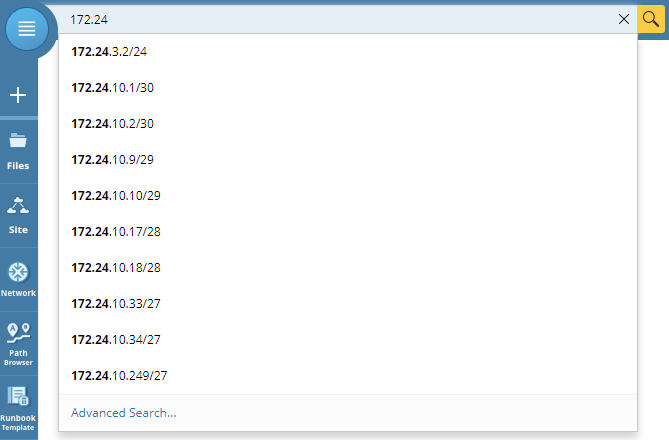

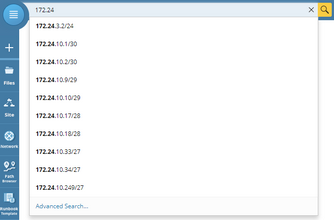

With NetBrain, your entire network becomes a searchable database, and you can search for a device by using one of the following search terms:
▪Text string in Configuration File

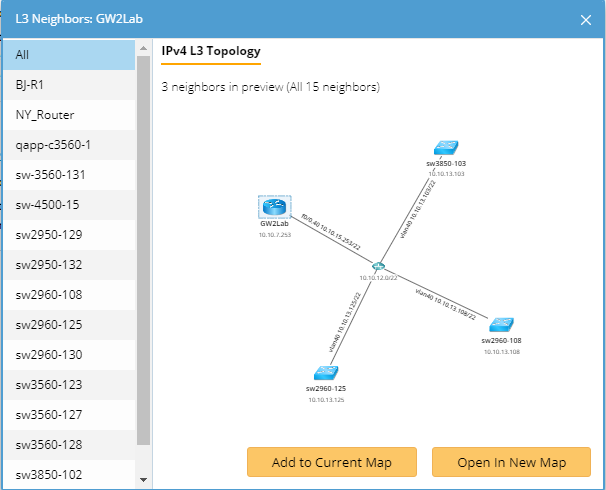

4.To display the preview map on the existing map, click Add to Current Map; To display the preview map on a new map, click Open in New Map.

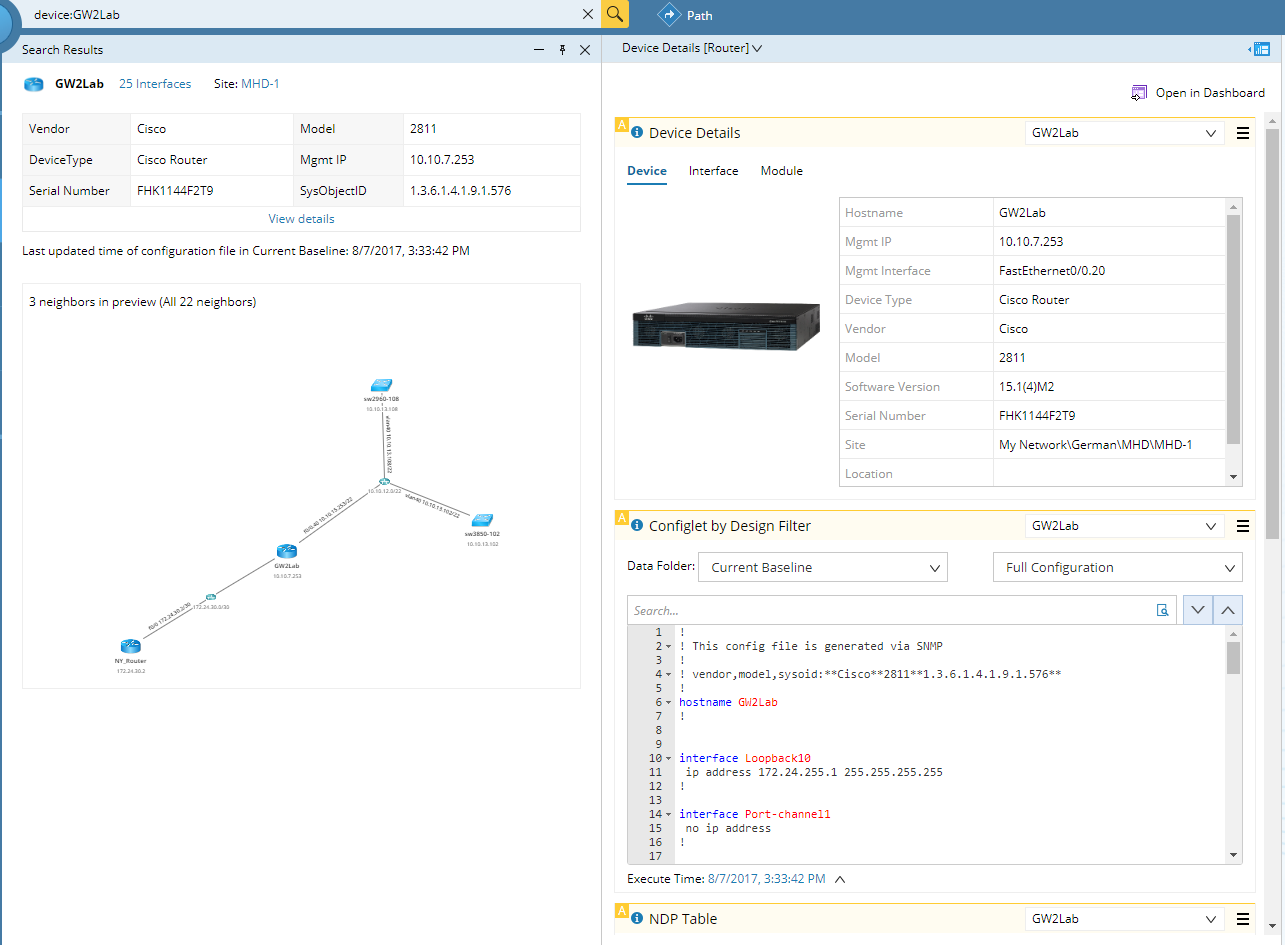

Click the device name in the search result. A Device Details dashboard matching its device type opens, showing the detailed information about the device. See Semantic Search for further operations.
1)Point to the target device in the search result pane.
2)Click the icon and select View Device Details from the drop-down menu. See Device Details for more details.
1)Click the X L2 Neighbors hyperlink (for instance, 2 L2 Neighbors) to open the corresponding neighbor list as well as the preview map of the neighbor topology.
2)To open the preview map, click Open in New Map.
1)Click the X Interface hyperlink (for instance, 15 Interfaces) to open the interface list of the device.
2)Click the IP address of the target interface. The system automatically starts a new search using the IP address as the keyword.
