Define Drill-down Actions
Drill-down actions in Report provide navigation from Report data to other related NetBrain features by the hyperlinks in Report Details columns. This helps provide deeper insights for Reports by drilling down into the underlying data.
- Choose the desired report column and click
beside the report. - Select a Drill-down Action.
- (If required) Define the parameter value.
- Click the hyperlink on report columns to use Drill-down Actions.
Drill-down Action Types
Report Columns can be selected as the parameter for the Drill-down actions. The parameter is used to define the details of the Drill-down Actions, such as the name of the Intent to be opened.
- Open Configuration File – Open the configuration file for the device. The value of the device name is defined by the parameter.
- Open Intent Details – Open the Network Intent in View Mode. The name of the Intent is defined by the parameter.
- Open Device Details – Open the device detail pane for the device. The name of the device is defined by the parameter.
- Open Diagnosis Tree - Open the Diagnosis Tree of an Intent execution result. The name of the Intent and execution time of the result are defined by the parameter.
- Open Path Overview – Open the Path Overview pane. The name of the Path and Verified Time are defined by the parameter.
- Open Change Management Task – Open the Change Management Task. The name of the Change Management Task is defined by the parameter.
- Open Map – Open the map in another window. The map name is defined by the parameter.
Example: Define the Drill-down Actions to View Intent Details
Example: Define a Drill-down action for Report Column Intent Name that opens the Intent as specified by the unit.
Follow the steps below to define the Pivot Table:
- Click beside the Report Column Intent Name.

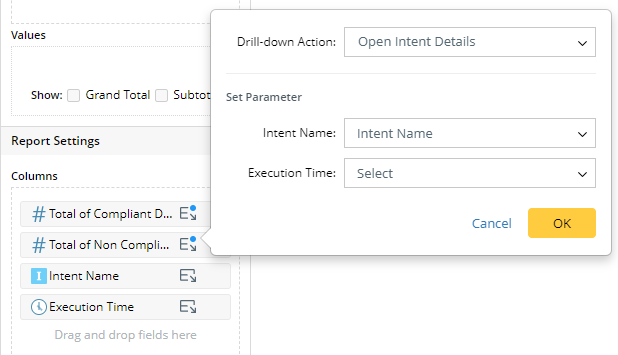

- Define the Drill-down Action as below: Set the Drill-down Action to be Open Intent Details, and set the parameter to be Intent Name.
- Now you can open the Intent from the Report.
