Global Search IntelliSense

Global Search is the start point for you to find any domain data.  After entering more than 2 characters, the intellisense will display the data matching the characters. The search history is also listed.

IntelliSense Detail

When you enter a keyword, the IntelliSense will provide the corresponding device, interface, device type, interface status and so on. The displayed information varies depending on the type of entered content. Here is an example when an IP is matched.

The search scope is as follows:

  • IP
    • Management IP
    • Interface IP
    • Virtual IP
    • One IP Table
  • Hostname
    • Hostname
    • DNS Name
    • Path Name/Application Name

Some examples of IntelliSense are as follows:

Information Note: When you click the search box, if there is a historical search record, it will be displayed. Otherwise, the IntelliSense will only be displayed when the input content exceeds 2 characters.

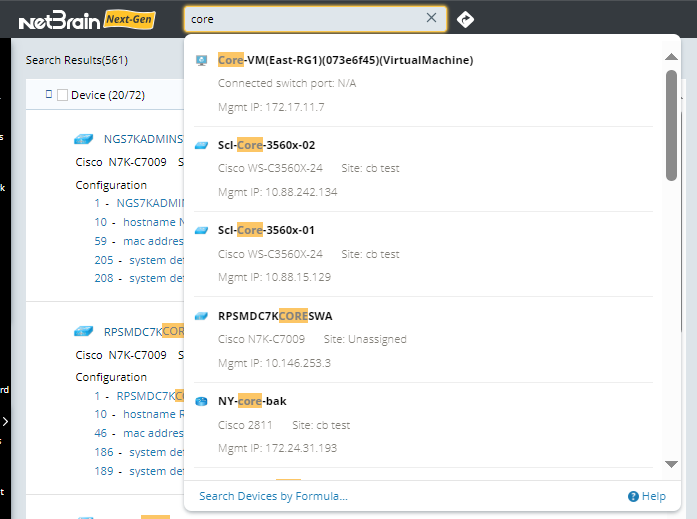

  • Enter Hostname:

    Information Note: Hover over a matched device entry, and you can click Map to draw the device on a map.
  • Enter Map Name. The map name, page summary, editor, and last updated time are displayed.

  • If the input item matches Internet Cloud or MPLS cloud, you can distinguish them by the icon. Here is an example when the Internet Cloud is matched.

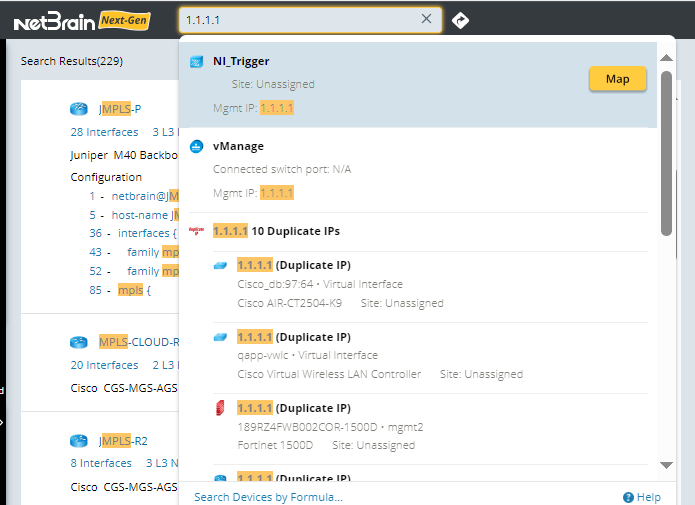

  • If the entered IP is an IP:

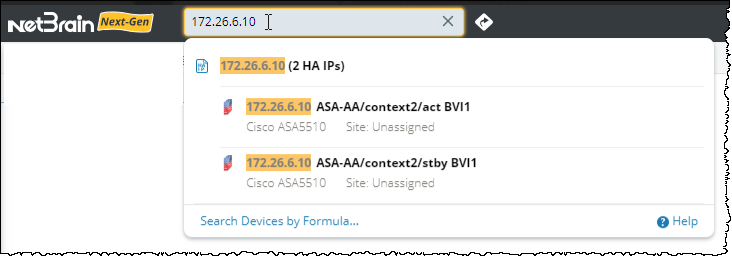

  • If the entered IP matches a device, and this device belongs to an HA group:

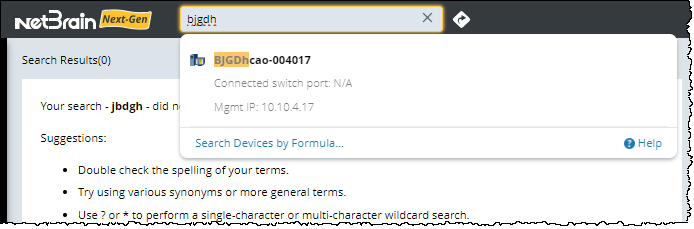

  • If the entered DNS matches multiple items, the device corresponding to the DNS will be listed separately:

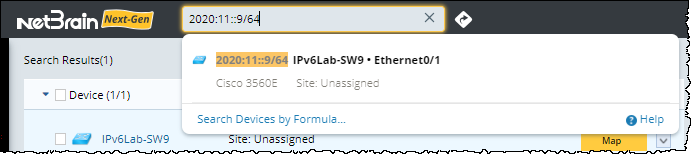

  • If the input content is in IPv6 format, the corresponding device interface information will also be listed:

The matched items can be categorized as follows:

Table 1 - Matched Items in Search
Input Item
Matched Item
Displayed Information
Supported Operation
IP
Device Interface IP
Interface IP
Device Name
Interface Name
Vendor module
Site
  • View neighbor map

HSRP/VRRP/GLBP Virtual IP
Virtual IP
Virtual IP Tag
Tech Protocol
Real IP summary
Real IP
Real IP Device Name
Real IP Device interface Name
Real IP Device Vendor module
Real IP Device Site
  • View the information in the device group corresponding to the Virtual IP
  • View neighbor map

Internet Cloud
IP Address
Cloud Type
Connected Switch Port

  • View neighbor map

MPLS Cloud
IP Address
Cloud Type
Connected Switch Port

  • View neighbor map

Endsystem
IP Address
Device Name
Connected Switch Port
  • View neighbor map

Unknown Endsystem
IP Address
DNS Name
Connected Switch Port
  • View neighbor map

Unknown IP
IP Address
  • View neighbor map

HA Group
HA tag
HA interface IP
Device Name
Interface Name
Vendor Module
Site
  • View neighbor map

Duplicate IP
IP Address
Duplicate IP summary
Information Note: The displayed information varies with the Device type corresponding to different IPs.

  • View neighbor map
Keyword
Device Name
Device Name
Type
Vendor module
Site
Interface IP
  • View neighbor map

DNS Name
DNS Name
IP address
Connected Switch Port
  • View neighbor map

Internet Cloud
Cloud Name
Cloud Type
Connected Switch Port

  • View neighbor map

MPLS Cloud
Cloud Name
Cloud Type
Connected Switch Port
  • View neighbor map

Endsystem
Device Name
Connected Switch Port
  • View neighbor map

MAC Device Name
Device Name
DNS Name
Connected Switch Port
  • View neighbor map

Application Name
Path Name
Path Source Destination Protocol
Path Name
Application name
Latest result time


Map Name

Map Name

Page Name

Editor

Last Updated

  • Open map

Map/Select Action Detail

In IntelliSense, each item has a Map button. Some examples of displaying the Map button are as follows:

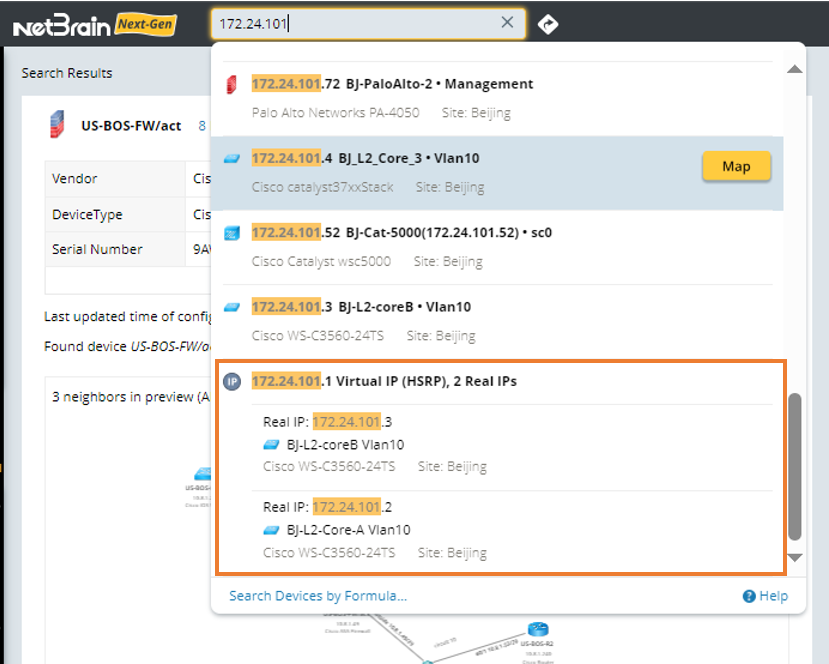

  • Search by virtual IP:

  • Search by host:

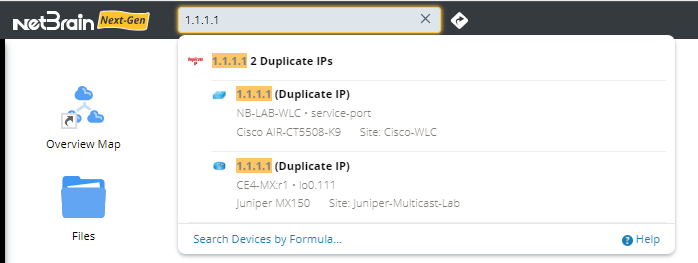

  • Search by duplicate IP:

Depending on the device type, the content displayed after clicking Map is also different:

Table 1 - Mapping Actions per Device Type
Device Type
Map Action
Select Action
Device Interface IP
Map the L3 neighbor of the first hop of the device.
Enter the corresponding IP.
Host Name
Map the L3 neighbor of the first hop of the device.
Enter the corresponding name.
HSRP/VRRP/GLBP Virtual IP
Map the auto L3 links of all devices in the group corresponding to the virtual IP.
Enter the corresponding IP or name.
Internet Cloud
Map Internet Cloud.
Enter the corresponding IP or name.
MPLS Cloud
Map MPLS Cloud.
Enter the corresponding IP or name.
Endsystem
Map the first L2 neighbor of the device.
Enter the corresponding IP or name.
Unknown Endsystem
Map the first L2 neighbor of the device.
Enter the corresponding IP or name.
Unknown IP
Map the unknown IP.
Enter the corresponding IP or name.
HA Group
Map all devices in the HA group, and auto-link L3 links.
Enter the corresponding IP or name.
Duplicate IP

Map all devices with duplicate links.

Information Note: The neighbors will not be expanded.

Enter the corresponding IP.

Path
Map the path.

Map
Open the map.

IPv6 Device Interface IP
Map the IPv6 neighbor of the first hop of the device.
Enter the corresponding IP.
