ADT can serve to build an intent-based automation database for customized network assets to share across the organization, and you can use this database for Triggered and Preventive automation.
Where to Start?

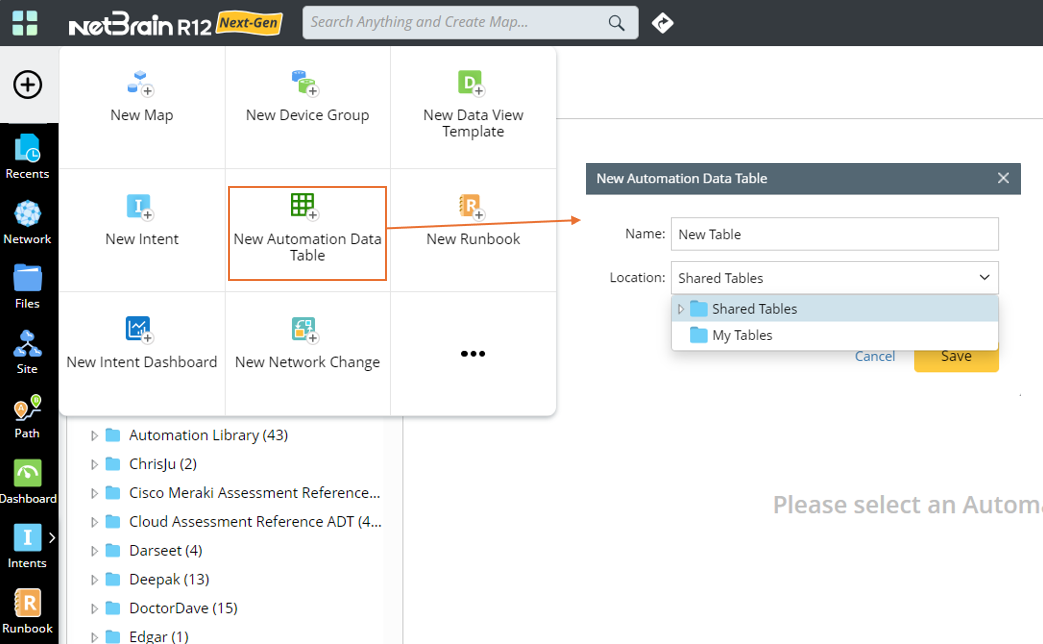

- Go to the
menu, then click New Automation Data Table widget. In the popup dialog, define table name and select location to store the table.

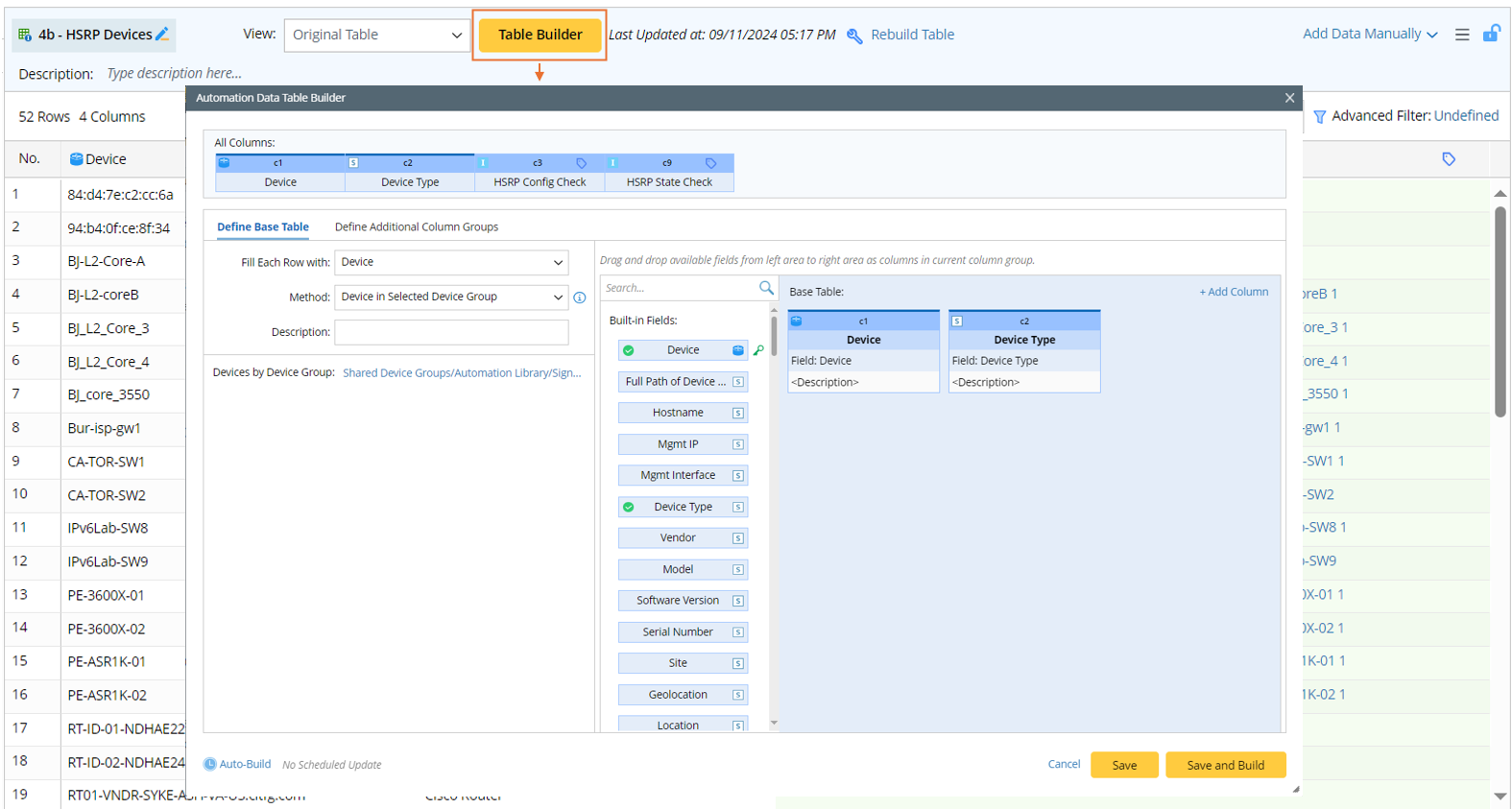

- Go to Table Builder> Define Base Table to build a base table containing data fields to include automation asset data to be used.

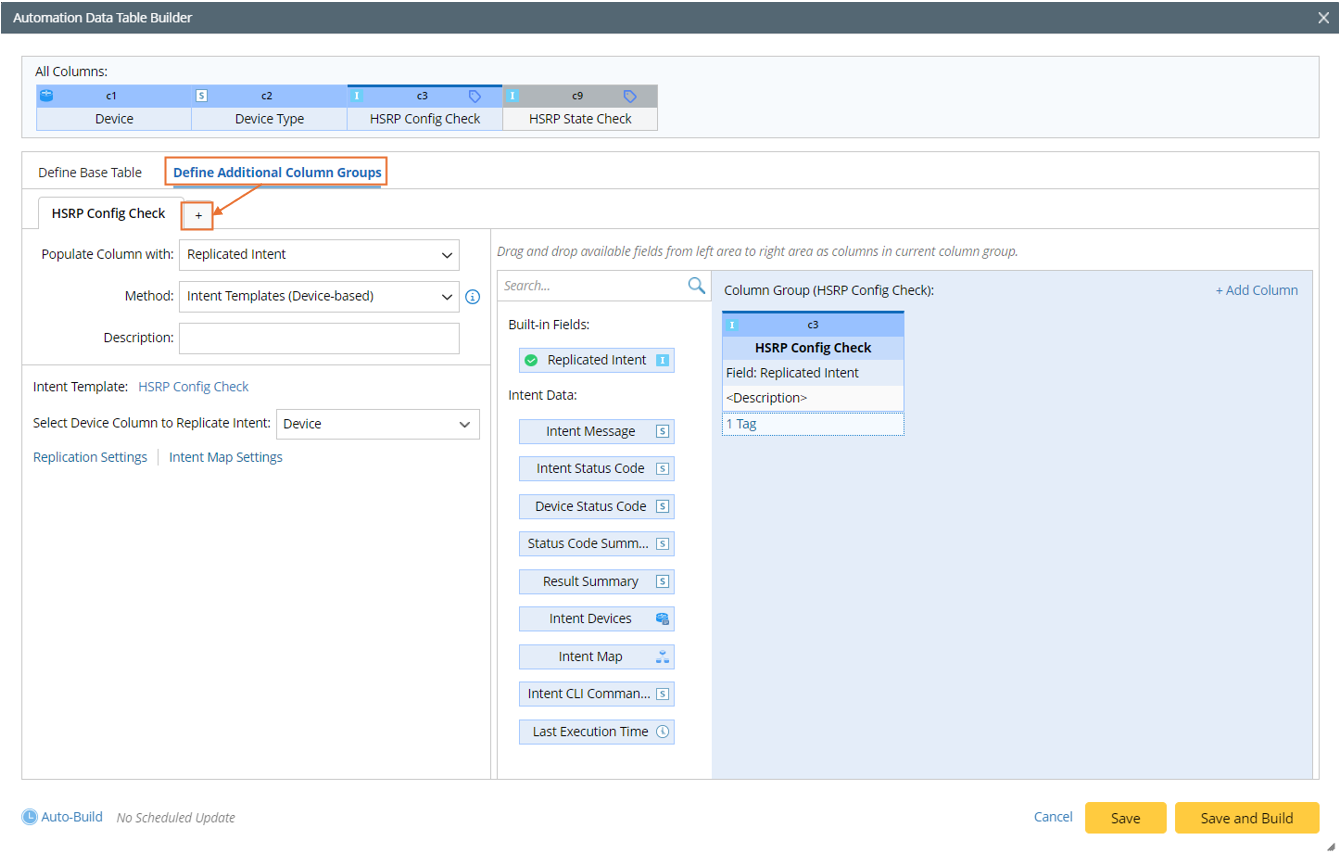

- Go to Table Builder > Define Additional Column Groups, then click
to create column groups to enrich the base table data.

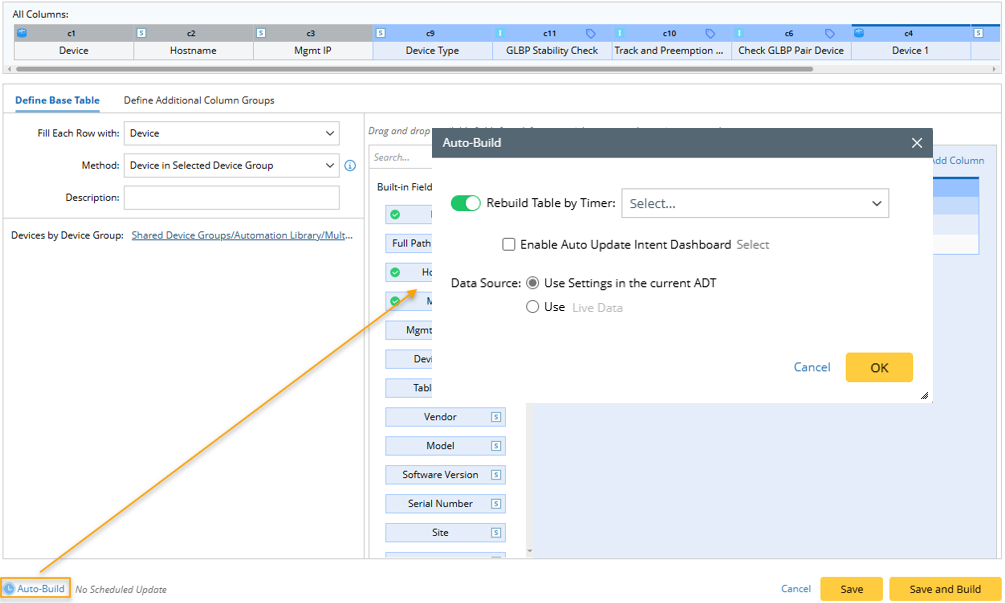

- Go to Automation Data Table Builder (Auto-Build) to schedule to update ADT data periodically.

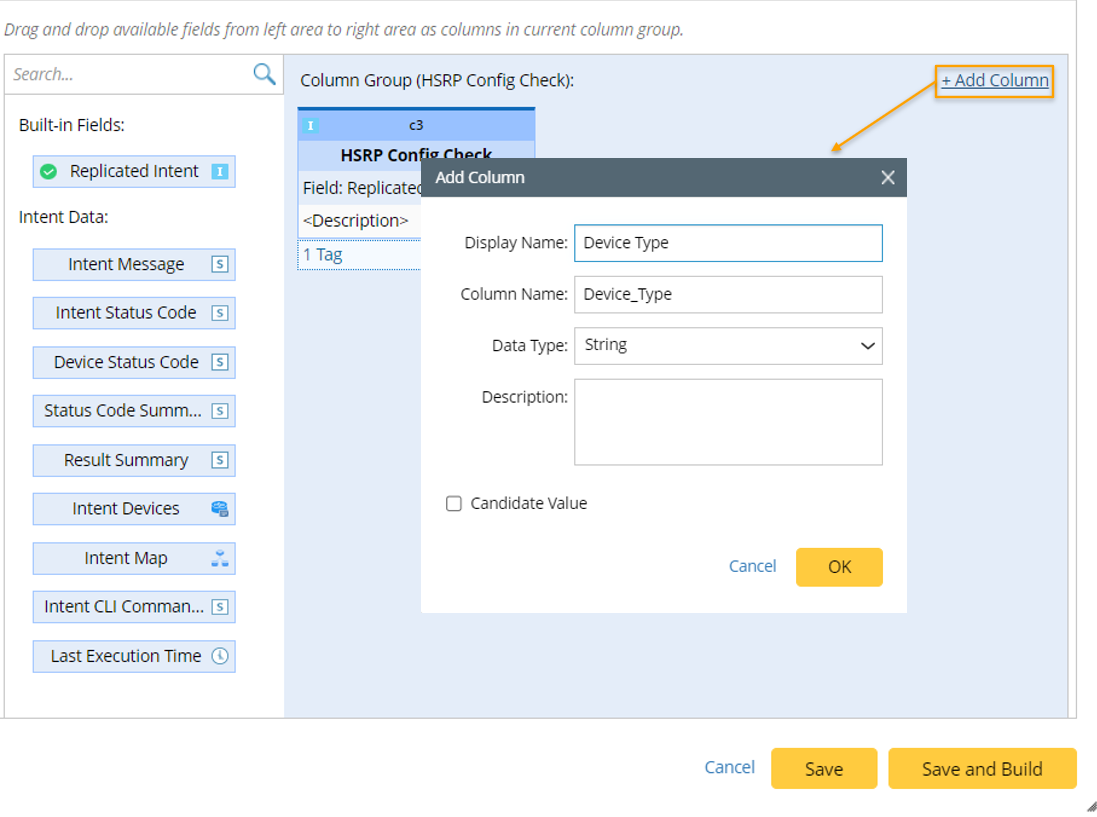

- Go to Automation Data Table Manager (Add Column) to manually add or adjust the table data.

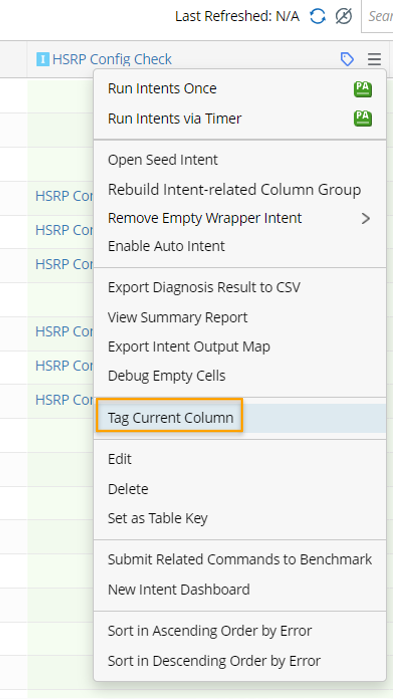

- Go to Automation Data Table Manager, then create tags for the automation column/map column from Tag Current Column of the drop-down menu. The tags can be applied to filtering the intents used for TAF, PAF, Bot, Auto Intent or Follow-up Intent.
To build an ADT, several methods are provided to build the base table automatically. The following table provides an overview of the methods:
Methods for Building Base Table | When do I need to use this method? | Use Case | |
| Device | Device Group | Need to create a critical device properties data table. Required Necessary Condition:
| Build automation intent database for device groups with device properties in the device group. The resulting table contains 1 device per row. |
| Site | Need to create a critical device properties data table. Required Necessary Condition:
| Build automation intent database for sites with device properties in a site. Each member device of the selected sites will occupy a row. | |
| Map | Need to create a critical device properties data table. Required Necessary Condition:
| Build automation intent database for map with device properties in a map. Each map device of the selected maps will occupy a row. | |
| Pre-Decoded Intent Template | Need to create a device-based data table using intent template. Required Necessary Conditions:
| Build the intent database for each pre-decoded device with the selected intent template. The resulting table contains 1 device and 1 replicated intent per row. Furthermore, the network attributes corresponding to the device can be extended by Macro Variables. | |
| Device Interface | Device Group | Need to create a device and Interface data table. Required necessary group:
| Build automation intent database for device groups with device and interface in the device group. Each member device interface of the selected device groups will occupy a row. |
| Map | Need to create a device and Interface data table. Required necessary group:
| Build automation intent database for device groups with device and interface ion a map. Each visible interface on selected maps will occupy a row. | |
| Application Path | N/A | Need to create a key application paths data table. Required Necessary Conditions:
| Build automation intent database for a set of selected critical application paths. The resulting table contains 1 path per row. Furthermore, the path properties can be used to extend this table. |
| Other Object | Map & Map Intent | Need to create a key map properties data table. Required Necessary Conditions
| Build an automation intent center for a set of selected key maps and use this ADT for trigger automation to fix the network problem of the devices of the key map. The resulting table contains 1 map and 1 map intent per row. Further, the map properties can be used to extend this table. |
| Device Group | Need to create a key device group properties data table. Required Necessary Conditions • Create some device groups.
| Build an automation intent center for a set of selected device groups. Furthermore, the device group properties can be used to extend this table. Each selected device group will occupy a row. | |
| Site | Need to create a critical site properties data table. Required Necessary Conditions:
| Build automation intent database for a set of selected critical sites. The resulting table contains 1 site device and 1site map intent per row. Furthermore, the site properties can be used to extend this table. | |
| Intent from Intent Cluster | Need to create a network automation asset data table about a specific network technology. Required Necessary Conditions:
| Build automation intent database for pre-generated member intents of an intent cluster. One intent cluster represents one network technology. The resulting table contains 1 member intent per row. Furthermore, the attributes corresponding to the automation asset can be extended by signature variables. | |
| Data from Other Table | Merged ADT | Some ADTs already exist and want to create a table by merging the data from those ADTs. Required Necessary Conditions:
| Build a new ADT by merging the data from several other tables with defined paired key. The method for joining table can be selected. |
| Subset of ADT | A source ADT already exists and want to create a table by extracting part of the data from the source ADT. Required Necessary Conditions:
| Build a new ADT from the column data from an existing ADT. The data of the existing ADT can be filtered by empty cell or by defining conditions. | |
| Imported CSV | A pre-generated CSV file is available and want to create a table data with the CSV data. Required Necessary Condition:
| Build an intent database with the columns in the imported CSV file. The table key can be manually set. The resulting table contains 1 CSV row per row. | |
| Manual Input | N/A | This method is applied when the auto-generated data cannot meet the requirements. | Manually Build an automation intent database with the available data type. One row or column (added one by one). |
|
Tip: You can populate ADT column or update ADT column by using intent template data in Intent Replication Wizard. |
If you need to enrich the ADT with more column groups, follow the instructions in Enrich Basic Table Data with Column Groups.
