R12.1-JA-2025June05
View Recommended Automation in Predefined Guidebook
You can select a predefined Guidebook in the Guidebook drop-down list.
|
TIP: Mouse over the Guidebook, and the basic information such as name, ID, and description will be shown. |

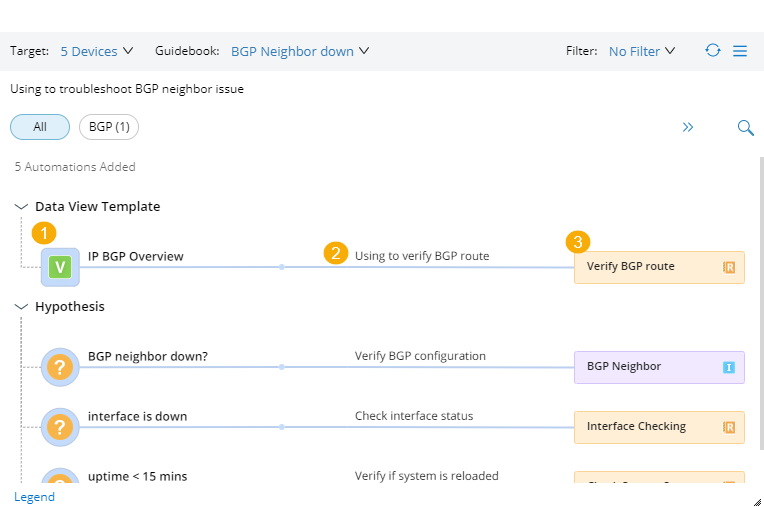

After a manually defined Guidebook is selected, the recommended automations belonging to this Guidebook will be displayed.
The displayed results vary with different types of Guidebook elements:
Hypothesis
| # | Meaning | After Clicking |
| 1 | a dummy node representing the manually defined hypothesis | N/A |
| 2 | the predefined note | N/A |
| 3 | the instance of the respective Runbook Template, Network Intent or Network Intent Cluster | Refer to: Viewing Runbook Template or network intent in Viewing Auto Qualified Recommended Automation. |
Data View Template
| # | Meaning | After Clicking |
| 1 | the manually added Data View Template | Refer to: Viewing Data View Template in Viewing Auto Qualified Recommended Automation. |
| 2 | the description defined by the user when adding Runbook Template or Network Intent to Data View Template. | N/A |
| 3 | the instance of the respective Runbook Template or Network Intent | Refer to: Viewing Runbook Template or network intent in Viewing Auto Qualified Recommended Automation. |
