Draw Devices and Group on Map

Draw a Group on Map

  1. In the Device Group pane, point to the target device group.

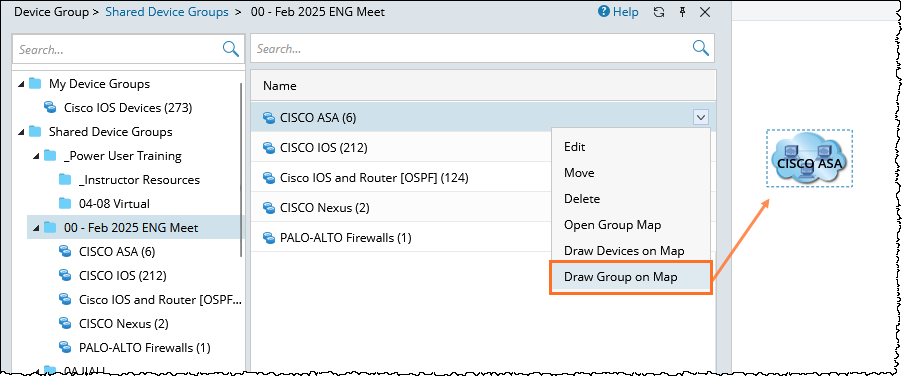

  2. Click the  icon to select Draw Group on Map. A Device Group icon will be added to the current map.
  3. You can double-click the device group icon on the map to open the auto-generated device group map.
    4. Related topic:

Draw Devices on Map

  1. In the Device Group pane, point to the target group only with devices.
  2. Click the icon to select Draw Devices on Map.
  3. Devices will be added to the current map. If no map is opened, the system will automatically create a map for those devices and show L3 topology links by default.
