Auto Link

The auto link function automatically draws links between devices or sites on a map. For example, when you draw devices on a map, the links between the connected devices are automatically drawn based on IPv4 Layer 3 topology by default. You can change the default topology type by Customize Auto Link Options.

To change the topology type for the auto links on your Map:

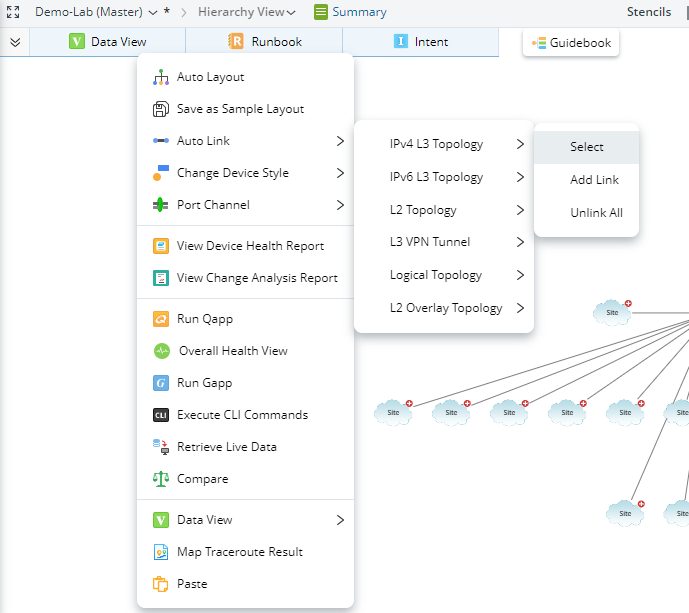

  1. Right-click the blank area on the Map and select Auto Link.
  2. Select one topology type among all available options.
    Graphical user interface, diagram

Description automatically generated
    Information Tip: To draw the link between a site and a device or between a site and an MPLS cloud, you need to extend neighbors. See Extend Neighbors for details.
