NetBrain can discover Software-Defined Network (SDN) data from SDN controllers via APIs and visualize the SDN data on dynamic maps.

Currently, the system supports the following SDN solutions:

▪Cisco ACI

▪VMware vCenter

▪NSX-v

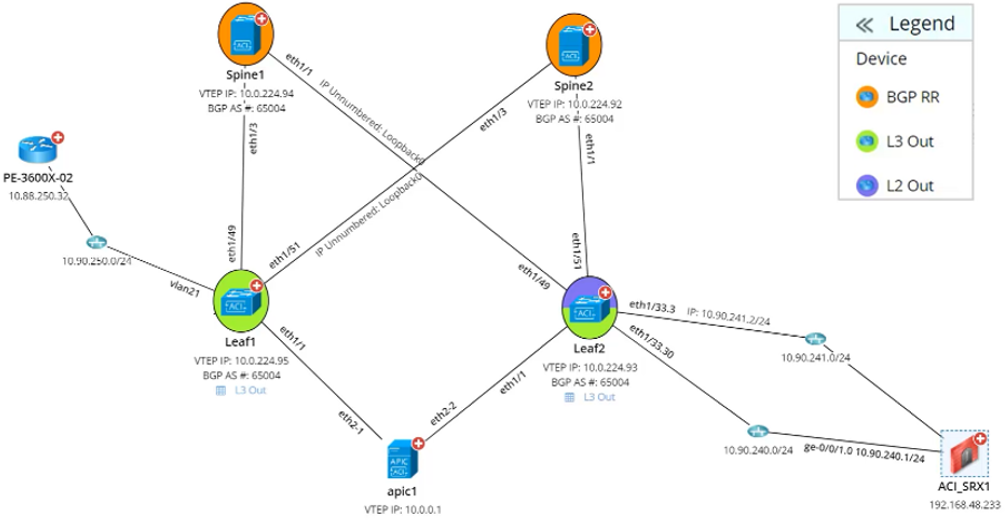

Example: A Visualized Topology Map of a Cisco ACI Fabric.

Use Flow

The general flow of visualizing and managing an SDN network in the system is as follows:

1.Discover SDN Devices in your NetBrain Domain.

2.Benchmark to Build Topology and Context Maps for SDN Data.

3.View SDN Resources in NetBrain Network Pane.

4.View Details and Context Maps of an SDN Node.

5.Map End-to-End Traffic Flows with Path Calculator.

6.Apply Data View to Visualize More SDN Data.

7.Run Runbooks or Qapps.
