Viewing Recommended Automation in Guidebook
Contents
If the qualified devices of the Guidebook match the target devices in Decision Tree, you can select this Guidebook in the select Guidebook drop-down list.
TIP: Mouse over the Guidebook, and the basic information such as name, ID, description will be shown.

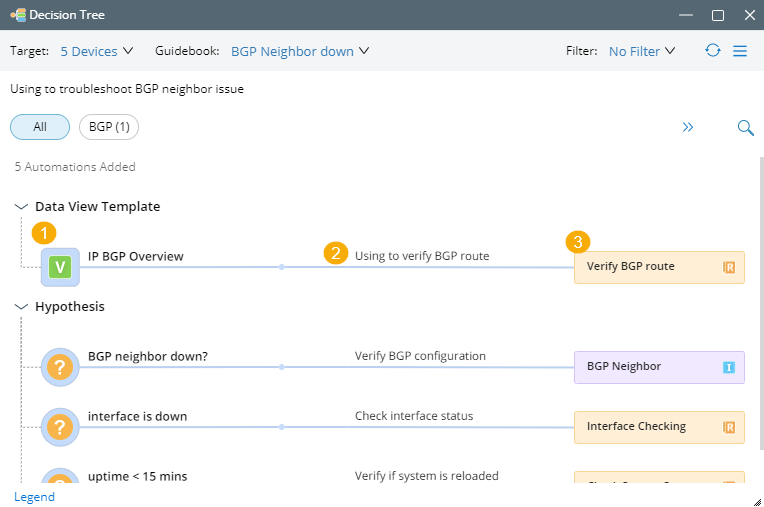

After a manually defined Guidebook is selected, the recommended automations belonging to this Guidebook will be displayed in Decision Tree.
The displayed results vary with different types of Decision Tree elements:
Hypothesis
# |
Meaning |
After Clicking |
1 |
a dummy node representing the hypothesis |
N/A |
2 |
the predefined note |
N/A |
3 |
the instance of the respective Runbook Template or Network Intent |
Refer to: Viewing Runbook Template or network intent in Viewing Auto Qualified Recommended Automation. |
Data View Template
# |
Meaning |
After Clicking |
1 |
the manually added Data View Template |
Refer to: Viewing Data View Template in Viewing Auto Qualified Recommended Automation. |
2 |
the description defined by user when adding Runbook Template or Network Intent to Data View Template. |
N/A |
3 |
the instance of the respective Runbook Template or Network Intent |
Refer to: Viewing Runbook Template or network intent in Viewing Auto Qualified Recommended Automation. |
