Viewing Auto Qualified Recommended Automation

After the target devices are properly defined, the Data View Template, Runbook Template and Network Intent will be qualified by the pre-defined target devices and displayed in Decision Tree.

The display results vary with different types of recommended automations:

Data View Template

Runbook Template

Network Intent

Data View Template

#

Meaning

After Clicking

1

the qualified Data View Template associated with the target device(s)

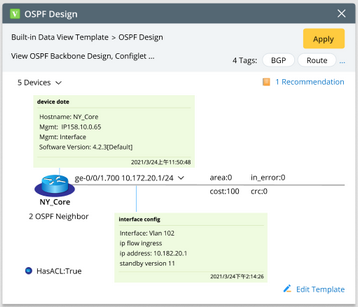

The preview dialog will pop up.

You can click Apply to apply this Data View Template to the current map.

2

the description defined by user when adding Runbook Template or Network Intent to Data View Template.

N/A

3

the instance of the respective Runbook Template or Network Intent

The preview dialog will pop up.

For Runbook Template: click Add to Current Runbook or Add to New Runbook to add the available Runbook Node(s) into the current or new Runbook

Note: The target device(s) of the Decision Tree will be used as the default target device(s) of the Runbook Nodes.

For Network Intent:

1)Click Open Network Intent to activate the NI detail pane,

2)Click Add to Current Runbook or Add to New Runbook to add the available Network Intent(s) into the current or a new Runbook.

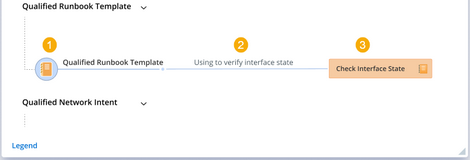

Runbook Template

#

Meaning

After Clicking

1

a dummy node representing all the Runbook Template(s) qualified by  the target device(s)

N/A

2

the description of each specific Runbook Template

N/A

3

the instance of each specific Runbook Template

The preview dialog will pop up.

Click Add to Current Runbook or Add to New Runbook to add the available Runbook Node(s) into the current or new Runbook

Note: The target device(s) of the Decision Tree will be used as the default target device(s) of the Runbook Nodes.

Network Intent

#

Meaning

After Clicking

1

a dummy node representing all the Network Intent(s) qualified by the target device(s)

N/A

2

the description of each specific Network Intent

N/A

3

the instance of each specific Network Intent

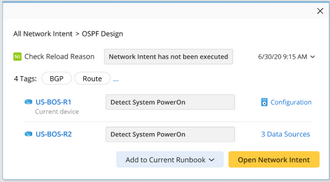

The preview dialog will pop up.

1)Click Open Network Intent to activate the NI detail pane,

2)Click Add to Current Runbook or Add to New Runbook to add the available Network Intent(s) into the current or a new Runbook.
