With NetBrain, network data from different sources and third-party systems can be visualized on a single map, which enables a map to serve as a single pane of glass (SPOG) for all valuable network data. In most SPOG scenarios, either the link to access a third-party webpage appears in the drill-down action list, or the detailed information retrieved from third-party systems via APIs is displayed in a table format with generated URL. With one click, you can directly go to the predefined webpage for drill-down investigations and operations.

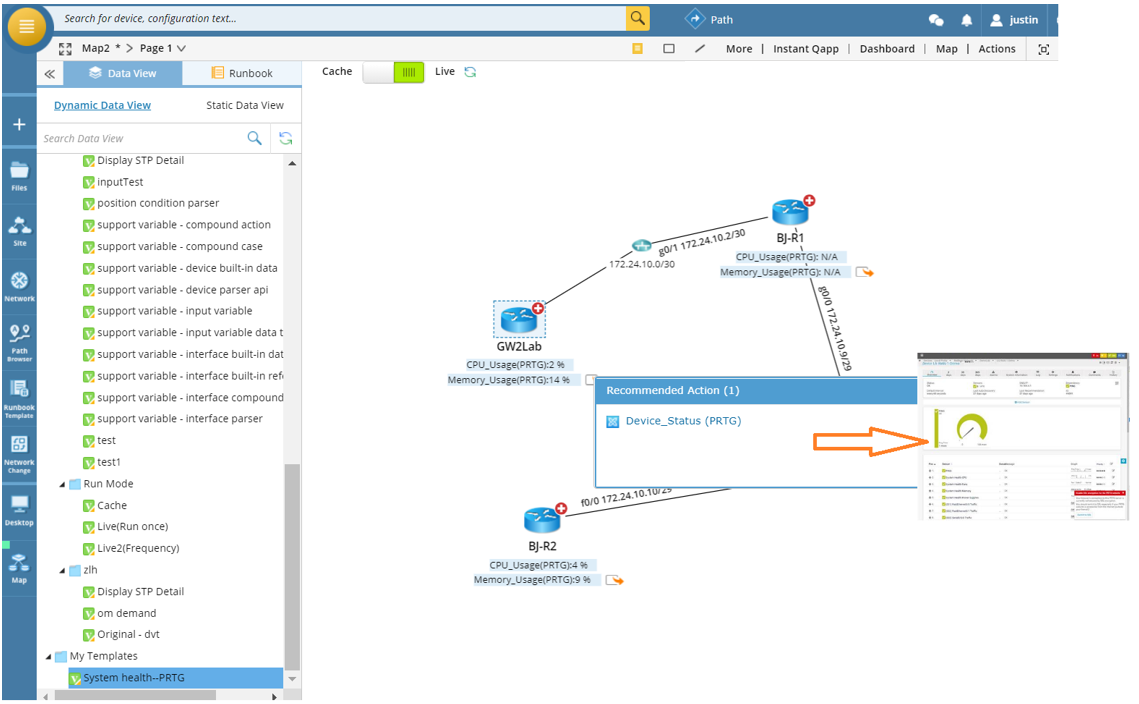

For example, apply a dynamic data view to a map, and click on the table link to go to the PRTG website for details.

Use Flow

1.Define an API Parser.

2.Define a SPOG URL.

3.Create a Data View Template to reference the API parser, and add the predefined SPOG URL as a recommended automation. See Creating a Data View Template for more details.

4.Apply the Data View Template to a map, and click on the generated SPOG link appeared in the recommended action list, to redirect to the target webpage. See Applying a Data View Template for more details.

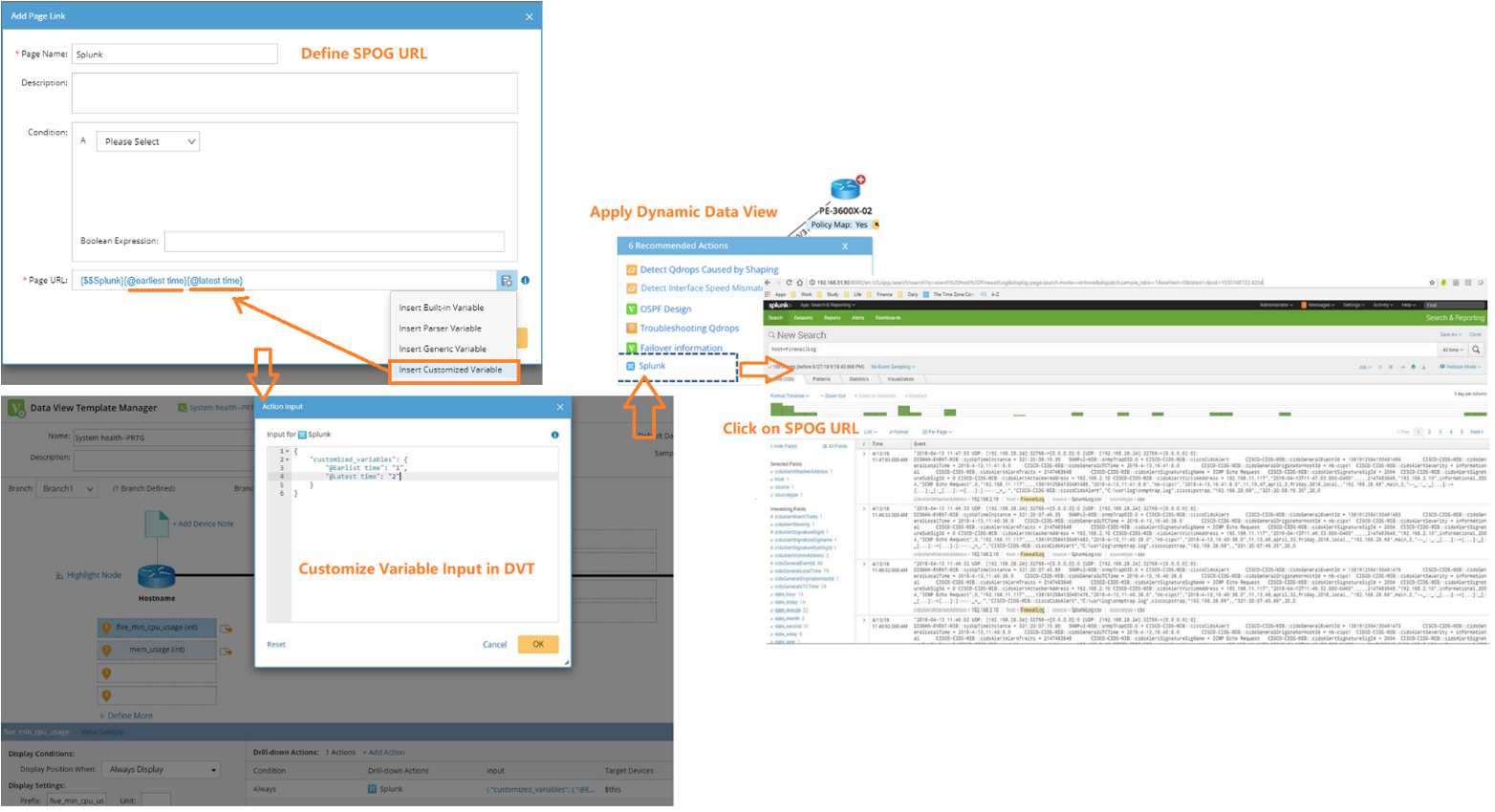

The diagram below describes the main flow:
