Creating a Qapp to Annotate OSPF Routing Design

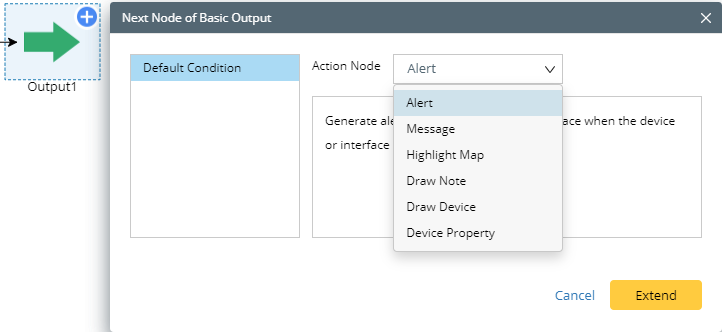

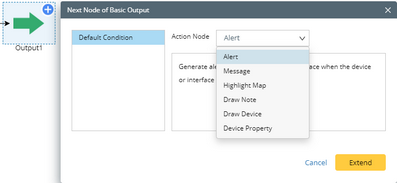

You can use the built-in functions in the Basic Output node of a Qapp to analyze and display data, such as highlighting a map, drawing a map, defining an alert and exporting a CSV report.

This section introduces how to create a Qapp to highlight devices with OSPF configured and annotate OSPF configurations on the map.

Complete the following two steps:

1.Use Configuration Command to Obtain OSPF Configuration

2.Define Output to Highlight Devices with OSPF Configuration
