Retrieving Live Device Data

You can retrieve the following data types for each device from the Device Details pane:

• Configuration file
• Data tables
• CLI commands

Retrieving Live Data for a Single Data Type from Device Details Pane

Take the configuration file, for example:

1. In the Device Details pane, select the Configuration File tab.
2. Click the  icon to open the configuration file in a pop-up dialog.
3. Click the  icon to retrieve the configuration file from the live network. See Default Live for more details.

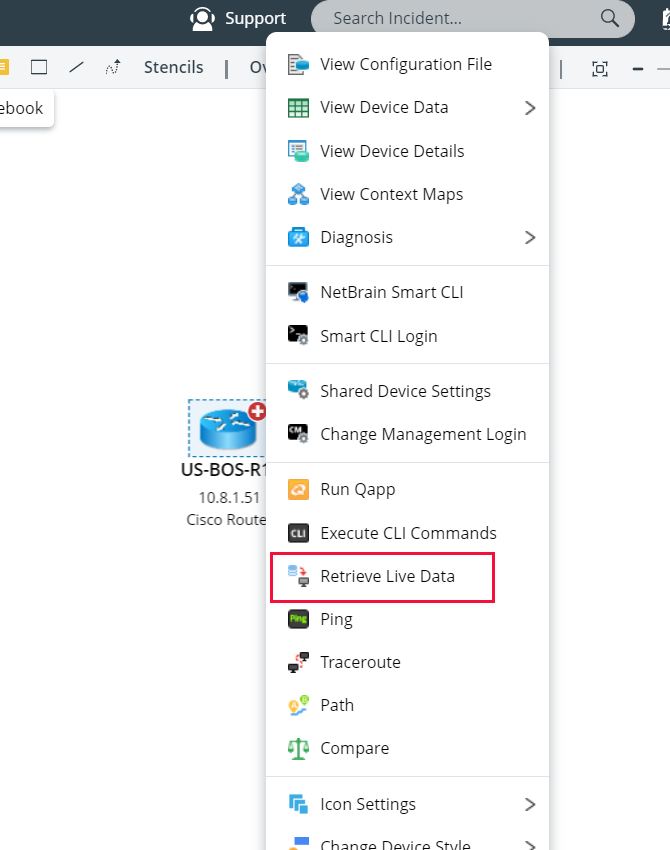

   Tip: To batch retrieve live data for various data types, click Retrieve Live Data from the right-click menu of a map. See Retrieving Live Data for more details.
