Call a Parser

You can call Parsers in many modules of your NetBrain system, such as Qapp, Data View Template and Schedule Parser. This section introduces how to apply a Parser in the following modules:

• Calling a Parser in Instant Qapp
• Calling a Parser in Qapp Editor

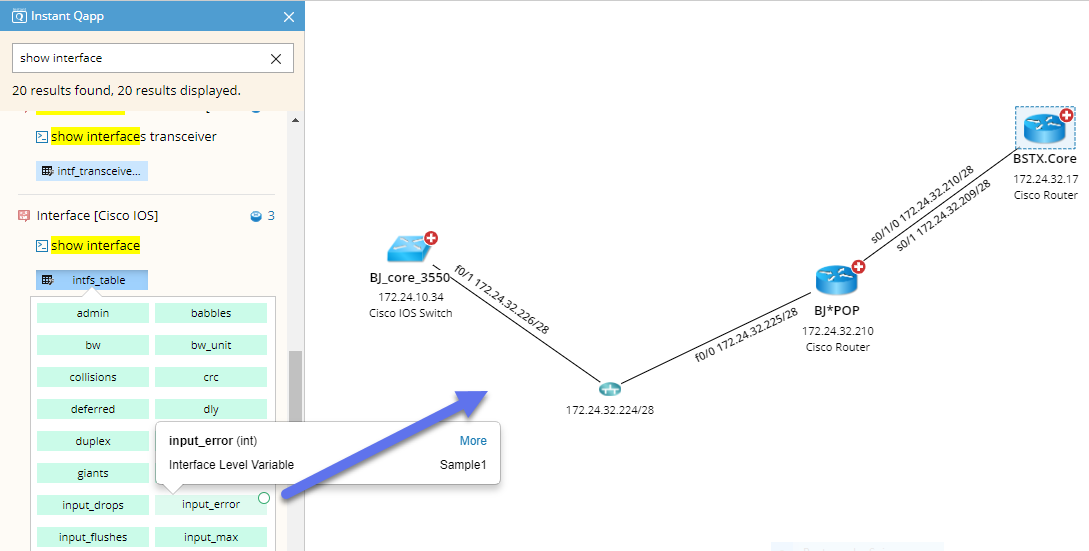

Calling a Parser in Instant Qapp

You can call a Parser and its variables and drag the variables to a map for data viewing.

1. Search for a specific Parser in the map search bar.
2. Drag a variable to the devices on the map.
3. The real-time value of the variable will be displayed once retrieved.


See Searching for CLI Commands and Mapping Matched Results for more details.

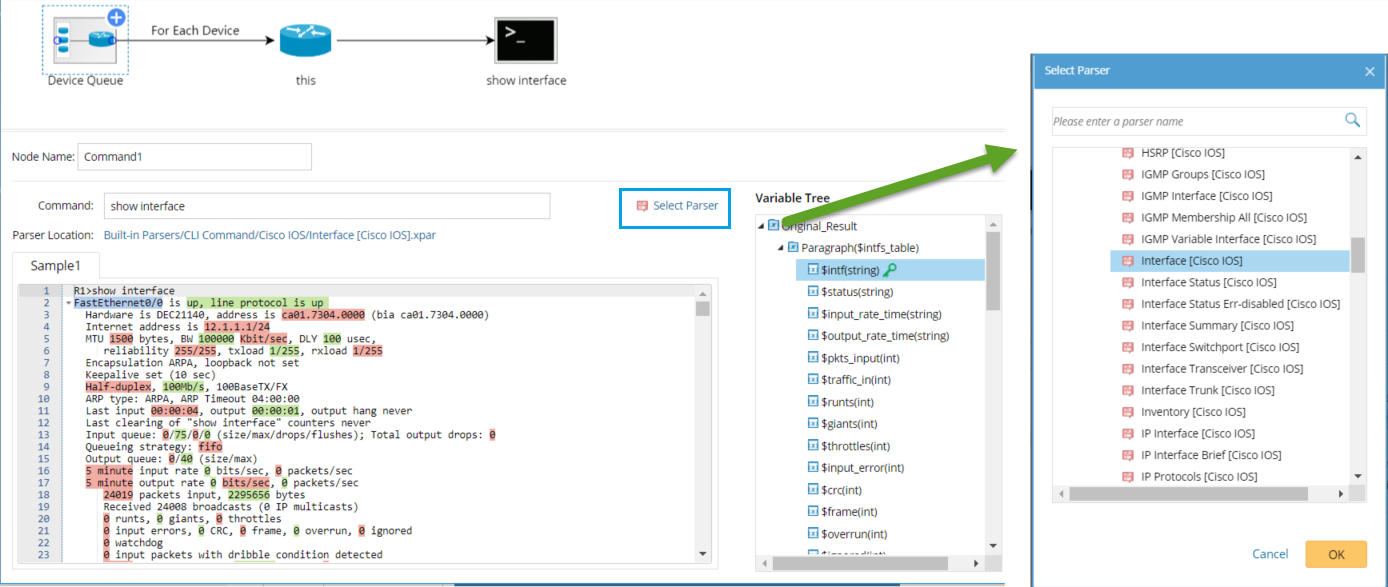

Calling a Parser in Qapp Editor

You can call a Parser and its variables when creating a Qapp: in the Command node of a Qapp, click Select Parser. The variables of the selected Parser will be auto-loaded in the variable tree.

See also:

• Parser
• Variable
