Map Page

One map can contain multiple map pages. For example, you may create a map page for the L2 topology and another for the L3 topology. When you save a map, all map pages will be saved in one map file.

Tip: On one map page, you can draw the links of different topology types, such as IPv4 Layer 3 topology and Layer 2 topology. You can use the Extend Neighbors or Auto Link function to draw neighbors or links on a map.

You can perform the following operations based on your needs to manage map pages.

• Adding a map page

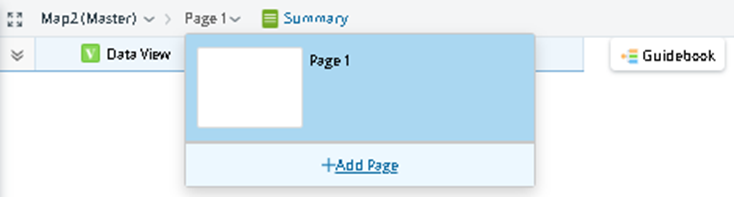

  1. Click the page title at the upper-left corner of the Map (for example, Page 1). The thumbnails of all map pages are listed.
  2. Click Add Page to create a new blank page named Page 2.


  3. Draw devices on the new page. See Draw Devices on Map for more information.
  4. Click the   icon on the Map Toolbar to save the changes.
• Duplicating a map page

1. Click the map title (for example, Page 1) at the upper-left corner of the Map. By default, the thumbnails of all map pages are listed.

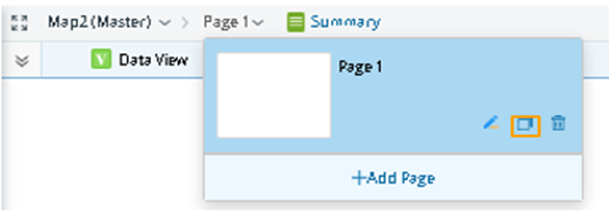

2. Point to the target page and click the  icon. A new map page with the same contents is created and opened automatically.


3. Click the  icon on the Map Toolbar to save the changes.

• Renaming a map page

1. Click the map title (for example, Page 1) at the upper-left corner of the Map. By default, the thumbnails of all map pages are listed.
2. Point to the target page, and then click the  icon.

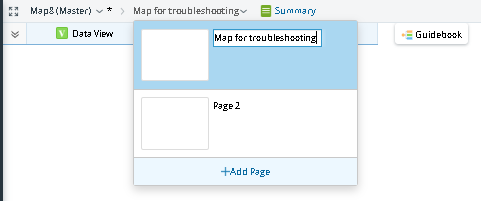

3. Enter the new name for the map page (for example, “Map for troubleshooting”) and then click the map page to open it.


4. Click the  icon on the Map Toolbar to save the changes.

• Deleting a map page

1. Click the map title (for example, Page 1) at the upper-left corner of the Map. By default, the thumbnails of all map pages are displayed.
2. Point to the target map page and click the  icon.
3. Click Yes when a confirmation dialog box prompts.
4. Click the  icon from the Map Toolbar to save the changes.
