Comparing Historical Device Data

The historical data of the following data types for each device is supported to be compared from the Device Details pane:

• Configuration file
• Data tables
• CLI commands

Comparing a Single Data Type from Device Details Pane

Take the configuration file, for example:

1. In the Device Details pane, select the Configuration File tab. The full configuration file of the device is displayed by default.
2. Click the  icon under the Configuration File tab, and the comparison result displays directly.



Comparing All Data Types

From Device Details Pane, you are allowed to add a Compare Runbook Node to a Runbook to compare all data type

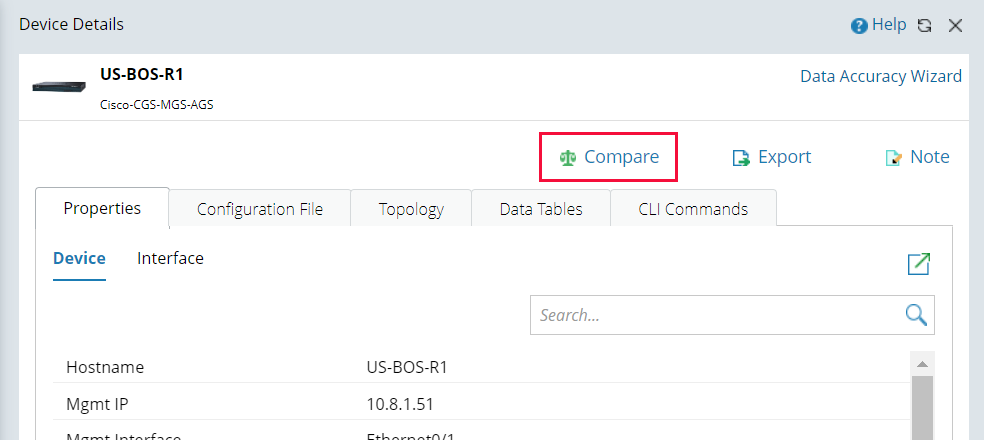

1. In the Device Details pane, click  to add a Compare Runbook Node to the current Runbook or a new Runbook.

2. See more details for Compare Node in Comparing Network Data Changes.
