VMware vCenter Network Visual Manager

The NetBrain system provides end-to-end visibility for VMware vCenter network resources and their physical and virtual relationships. With NetBrain, you can quickly understand a vCenter environment in the following aspects:

• The network objects in your vCenter networks, such as ESXi hosts, VM hosts, and vSwitches.
• The detailed property information about any vCenter network node.

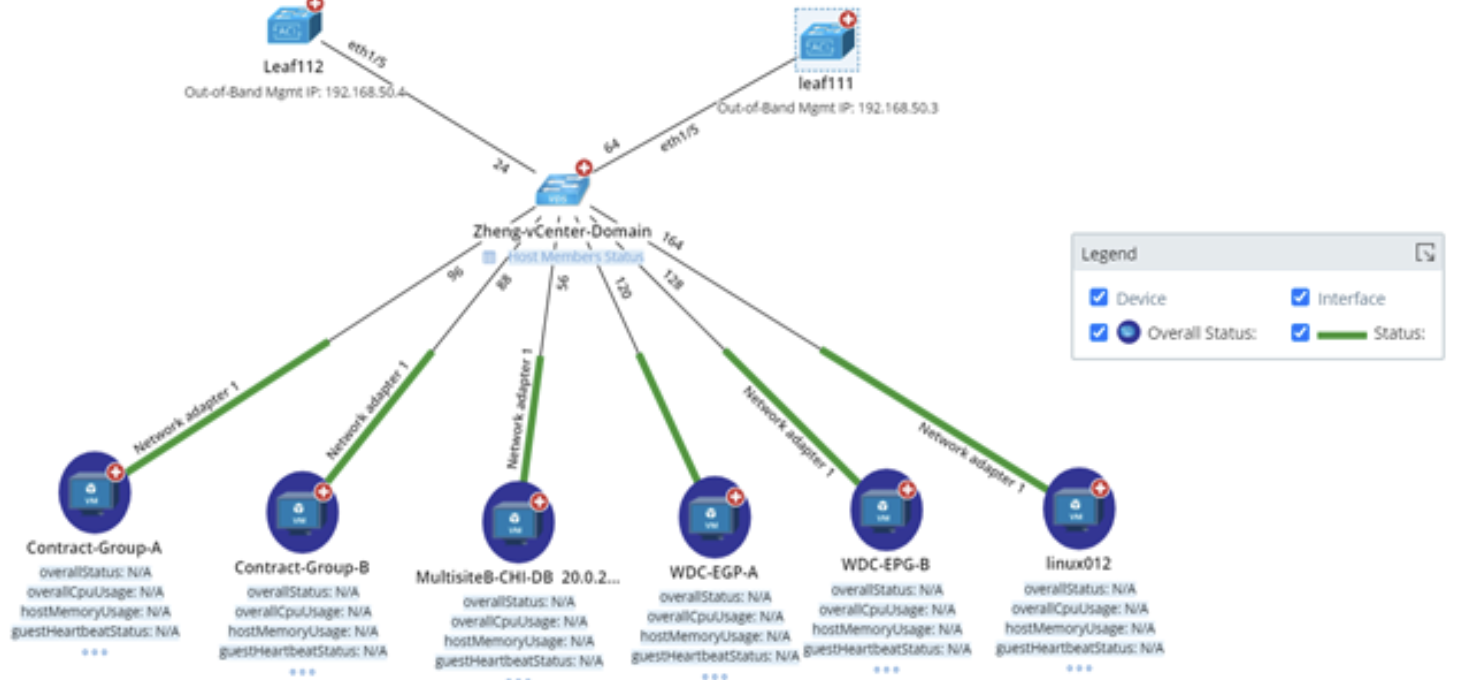

• The network design between vCenter network nodes, such as Layer 3 connection of VM hosts and their gateway devices, and the (parent/child) relationship between an ESXi host and vSwitch/VMs under the host.

For more details, see Visualize VMware vCenter Networks.
