Traceroute

Using Traceroute, you can discover and visualize the routing path between two devices within a domain, or between a Front Server and a device.

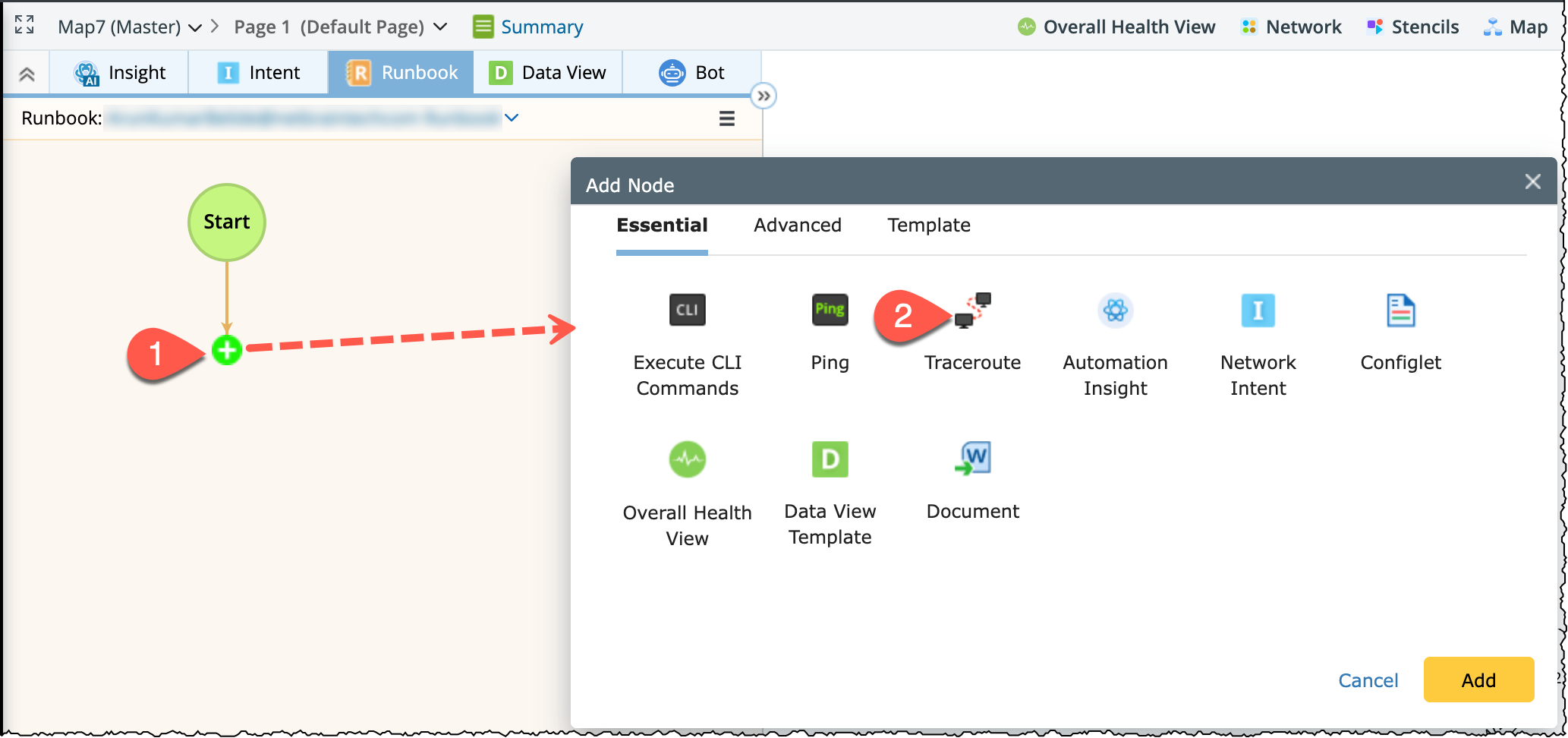

1. In a runbook, open the Add Node dialog.
2. Select Traceroute from the list of available nodes and add it to the runbook.



3. Configure Source Device (From):

   In the From field, enter a hostname (e.g., BJ_L2_Core_3) to specify the source device or click the field to select aFront Server or a device from the domain.

   Tip: When you select Auto Front Server, the Front Server configured in the Shared Device Settings of the destination device will be used. All configured Front Servers are auto-populated in the list. To select a different Front Server, choose from the list.

   Tip: When selecting a device, its management interface is used as the default traceroute source. You can choose another interface if required.

4. Configure Destination Device (To):

   In the To field, enter a hostname (e.g., BJ*POP) to specify the destination device or click the field to select a destination device from the domain.



   Tip: You can set the frequency to recur the execution repeatedly. By default, the Run Once is selected.

   Tip: You can click the icon to add more From-To pairs. If the run setting is configured for repeat run, then all the From-To pairs will follow the same interval for repeat runs.

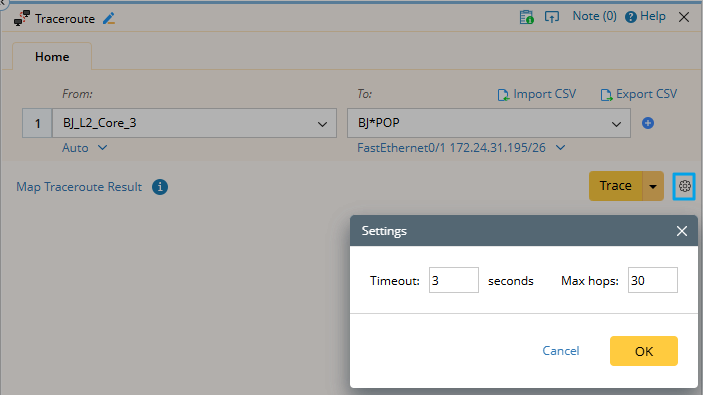

5. (Optional) Configure Advanced Settings: Click the icon to configure the following advanced settings, and then click OK.

• Timeout: Maximum time to wait for a response.
• Max hops: Maximum number of hops to reach the destination the destination.



6. Start Traceroute: Click Trace to begin the traceroute process.

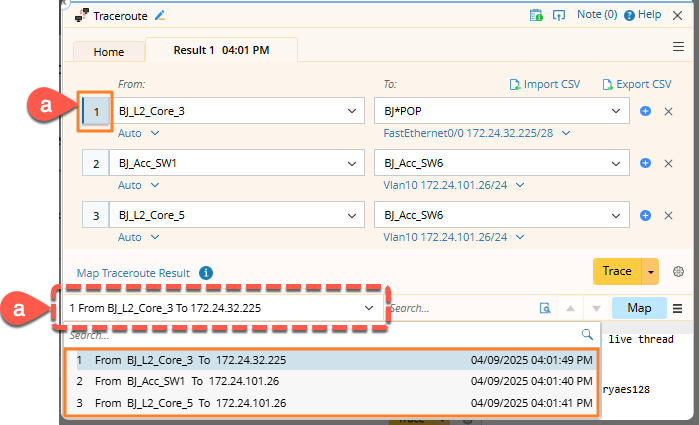

   1. View results using the drop-down list to switch between From–To pairs.
   2. Click the item number to view detailed results for a specific pair.

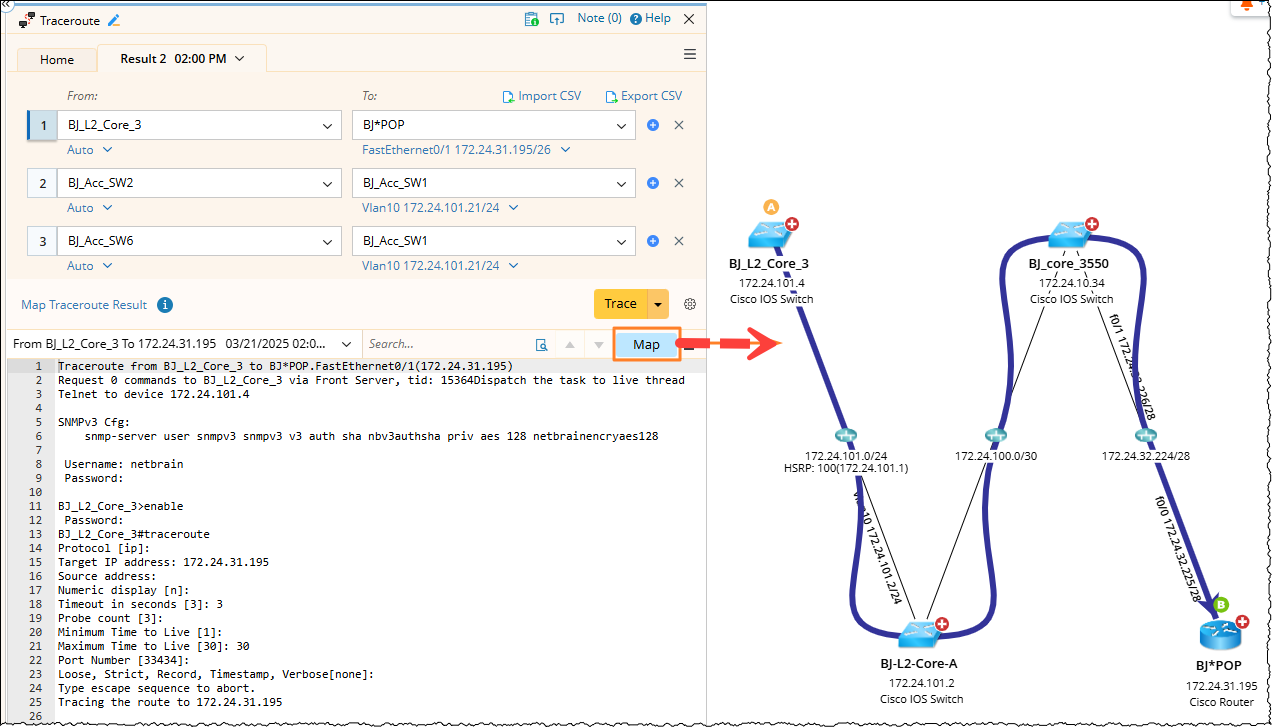

7. Visualize the Routing Path: Click Map to display the traceroute path on the map interface.

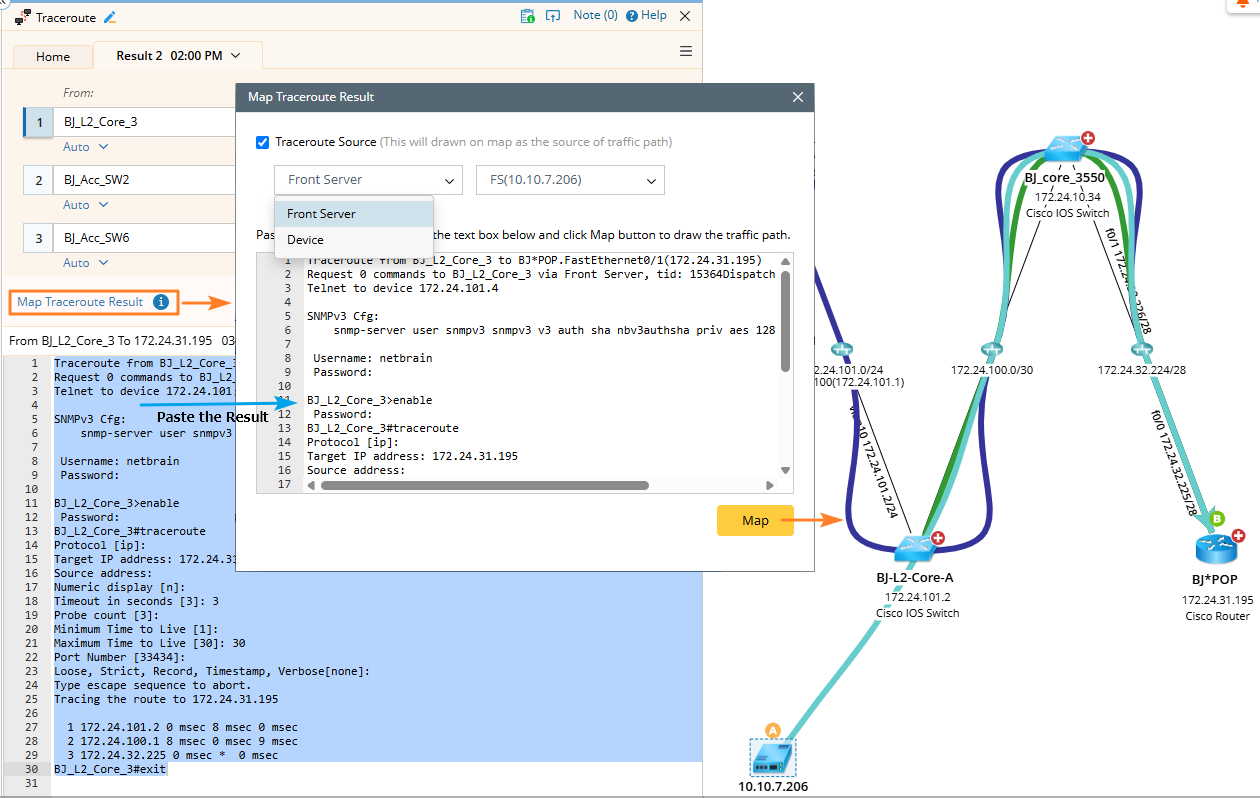

   Tip: To map any traceroute result, you can click Map Traceroute Result, select a source and paste the traceroute result.

   Tip: To save an action node and its input for reuse, point to it and click the  icon to select Save as Favorite.

8. (Optional) Save the Node for Reuse: Hover over the Traceroute node and click the icon to choose Save as Favorite for future reuse.
