Add Paths to Path Browser

When you calculate a path and save it, the path will be automatically added to the Path Browser. Additionally, you can also manually add paths in the Path Browser through the following steps:

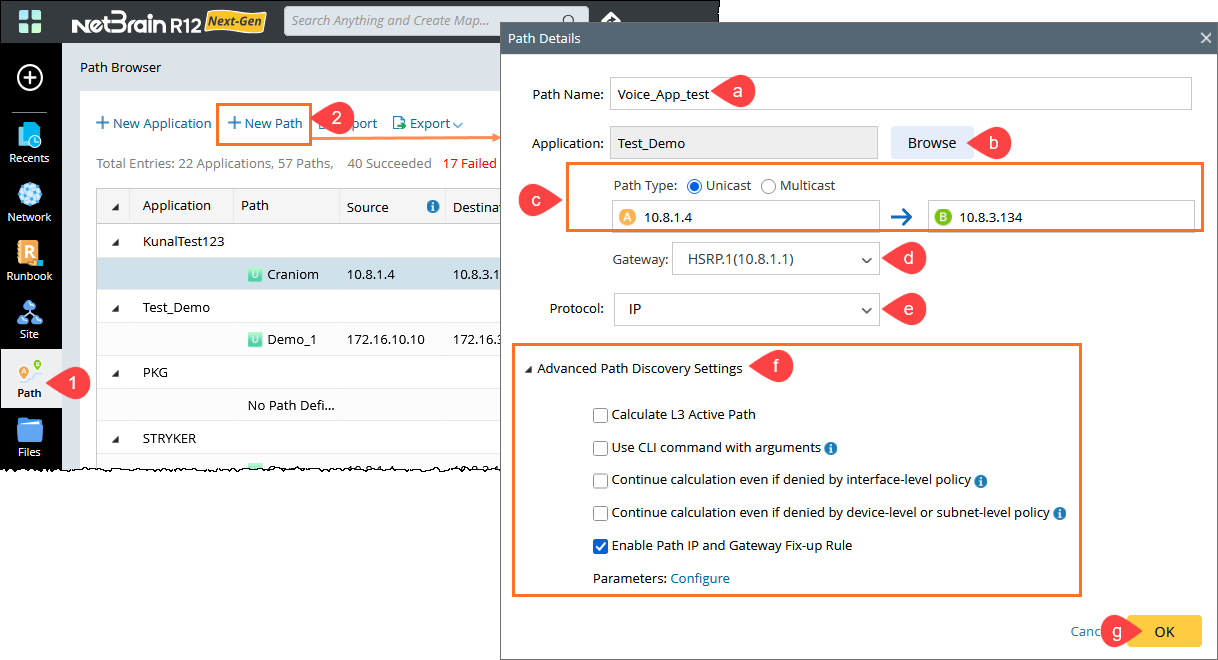

1. On the sidebar, click Path to open Path Browser.
2. Click + New Path to open the Path Details window.

   1. Enter a Pah Name.
   2. Click Browser to select an application for the path.
      If the desired application is not available, the path is saved under Untitled Application by default. To assign the path to a specific application, you must first create an Application.
   3. Enter the source/destination IP address.
   4. The related Gateways will be auto-identified as per your inputs. You can select the target one from the Gateway list if a device has multiple gateways.
   5. Specify the path Protocol to be used.
   6. Define the Advanced Path Discovery Settings. For more information, see Path Settings.
   7. Click OK.

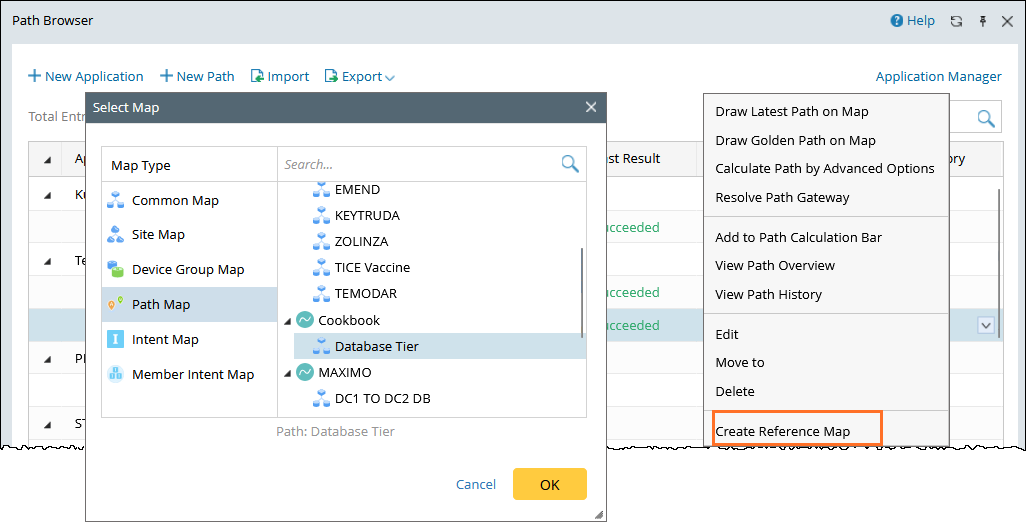

3. (Optional) Right-click this path and select Create Reference Map to associate the path with related maps to better express network problems.

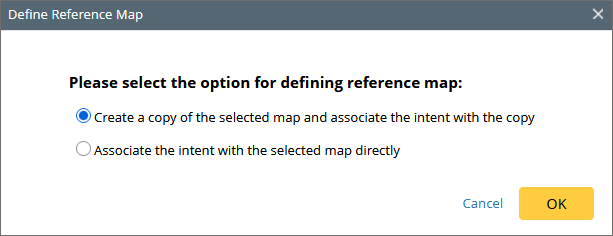

When creating a Reference Map, select one of the following options:

• Create a copy of the selected map and associate the Intent with the copy (Default option): this option will create a copy of the selected reference map, and the path will be associated with the copy of the map. You own the Editing Rights of the copy of the map.
• Associate the Intent with the selected map directly: this option will directly associate the path to an existing map. You may only have the View Only privilege of the reference map.


Note: If the path has already been associated with a reference map, you can change to another reference map or delete the reference map based on your needs.

See also:

• Recalculating a Path
