View Diagnosis Tree (Pre-Execution)

After Follow-up NIs are defined, you can browse the Diagnosis Tree (Pre-Execution) of home NI to view the entire multi-staging diagnosis design, which consists of :

• Home NI
• All NI Diagnosis
• All Follow-up Intents

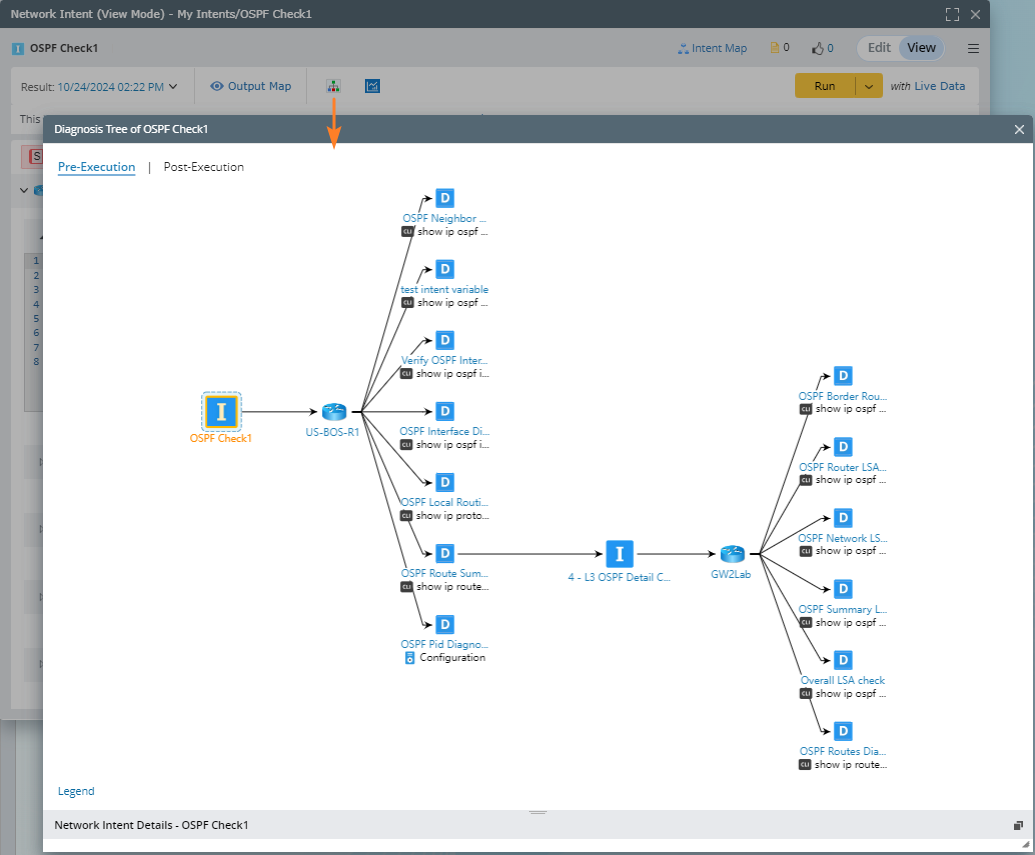

Enter the NI Edit Mode and click the Diagnosis Tree icon to open it.

Note: You can only view the diagnosis tree in Pre-Execution mode before the Follow-up diagnosis is executed.

Display Logic of the Diagnosis Tree (Pre-Execution)

The display logic of the Diagnosis Tree (Pre-Execution) is as follows:

• An NI can have multiple diagnoses, and each diagnosis generates a diagnosis node. These diagnosis nodes are always displayed regardless of whether the follow-up intent is defined in the diagnosis.
• Follow-up intents or Stop nodes defined in each diagnosis are displayed in parallel on different branches.
• You can drag the selected node and zoom in/out to view the tree.
