Diagnosis Tree

The diagnosis tree has two modes: Diagnosis Tree (Pre-Execution) and Diagnosis Tree (Post-Execution). The Pre-Execution mode is automatically generated according to the defined follow-up NI and the Post-Execution mode is not available before this intent is executed.

• Diagnosis Tree (Pre-Execution): It can reflect the logic of the diagnosis and the troubleshooting design.

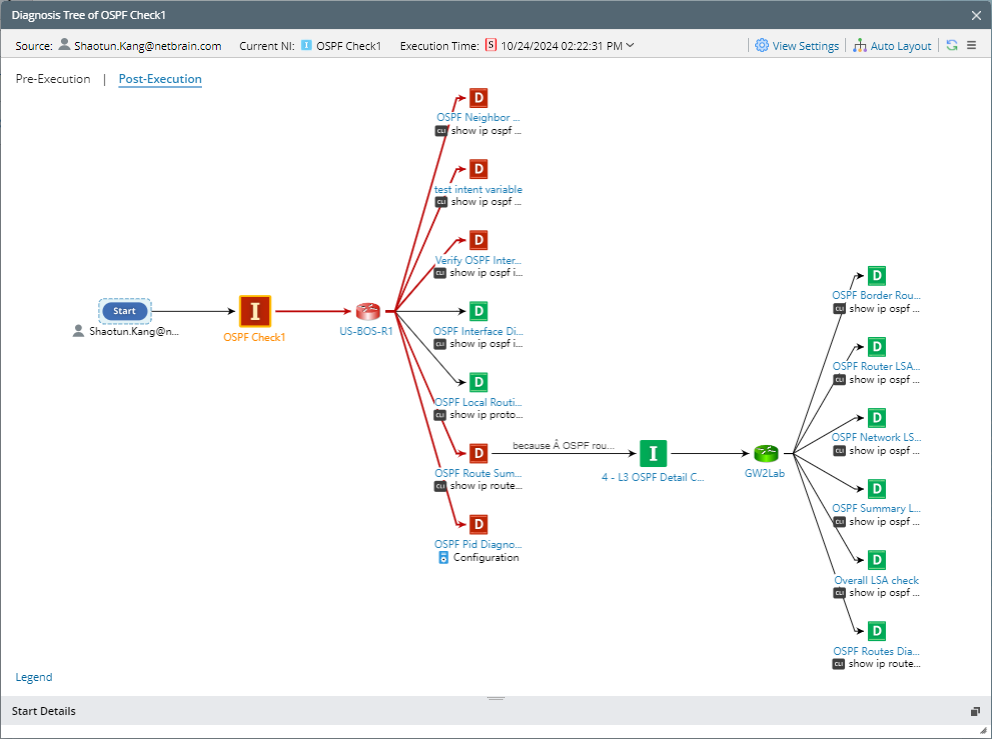

• Diagnosis Tree (Post-Execution): Diagnosis Tree (Post-Execution) shows the execution status of follow-up diagnosis based on the designed Diagnosis Tree (Pre-Execution).
