Use NIC as Follow-up Diagnosis

In real-world troubleshooting scenarios, a diagnosis usually has a follow-up diagnosis, and the follow-up diagnosis may take the output of the upstream diagnosis as the input. Users can use NIC as the follow-up diagnosis for this scenario by defining which member NIs of the follow-up NIC are executed via the output of the upstream NI. For example, for each entry changed in OSPF neighbors, uses can do a “Ping to state changed neighbor” in follow-up NIC with macro variable and pass the obtained value to command: ping $neighbor_ip.

1. In the NI Edit Mode, click the icon at the upper-right corner and select Replication Settings to Define Macro Variables to define the seed NI for NIC.


2. Generate member NIs through NIC. See Network Intent Cluster for more details about how to generate the member NIs.


3. In the NIC, define the neighbor IP in the eigen value as Signature Variables.


4. Add NICs (member NIs) as the follow-up diagnosis. Execute ping OSPF neighbor command when the state of the OSPF neighbor is not FULL.


5. Match member NIs through Signature Variable and Member Device in the NIC.


6. Execute the intent, and check the result in the NI View Mode.



Diagnosis Tree of Follow-up NIC

• Pre-Execution: The NIC node will be displayed in the Diagnosis Tree (Pre-Execution) after adding the follow-up NIC.


• Post-Execution: The matched member NIs in the follow-up NIC will be displayed in the Diagnosis Tree (Post-Execution).

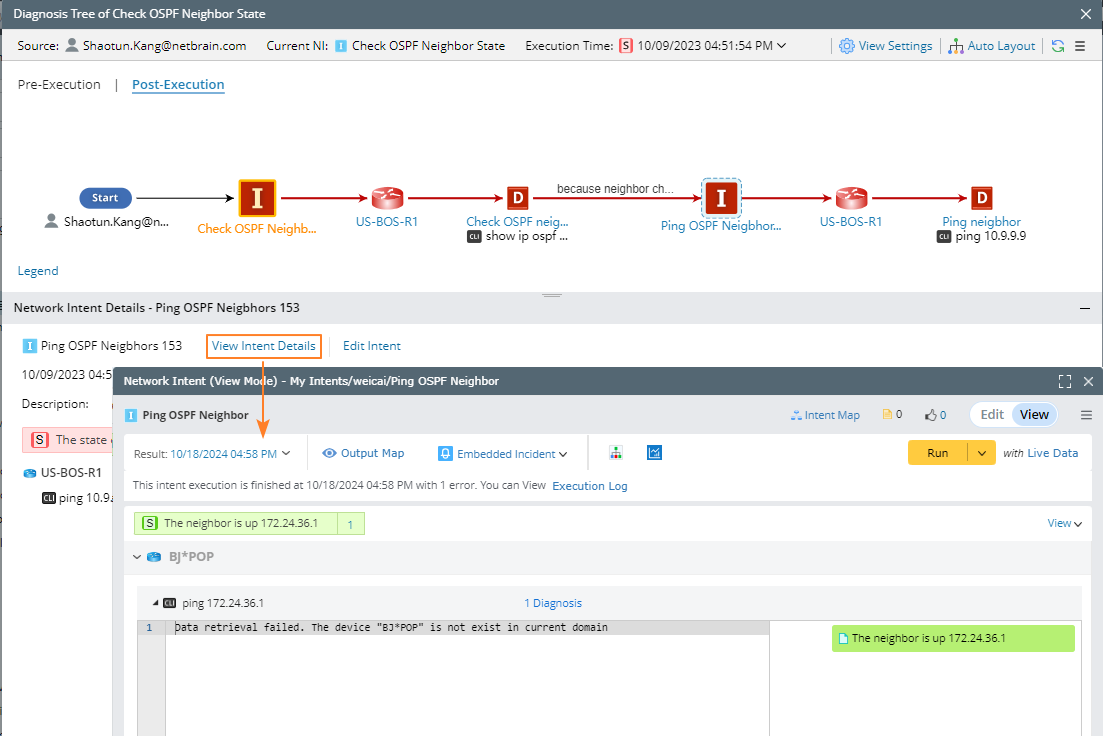

  You can also double-click the matched member NI to open its Details pane. Click View Intent Details to open the matched member NI.
