Tag Automation Intent/Map Columns

A network asset in ADT may be associated with multiple Intents and maps, for example, ADT asset can associate with Performance Monitor, Security Check, or QoS Check intents for an application path. Automation tags are used to classify the intents/maps in ADT columns so that the different intents/maps can be used respectively in different network scenarios of events.

Automation tags are used to mark the intent or map intent column so that the intents can be found in the TAF or follow-up intent process.

Tag Automation Column

Open the Tag Current Column dialog from the drop-down menu of the target automation column, then enter the tags.

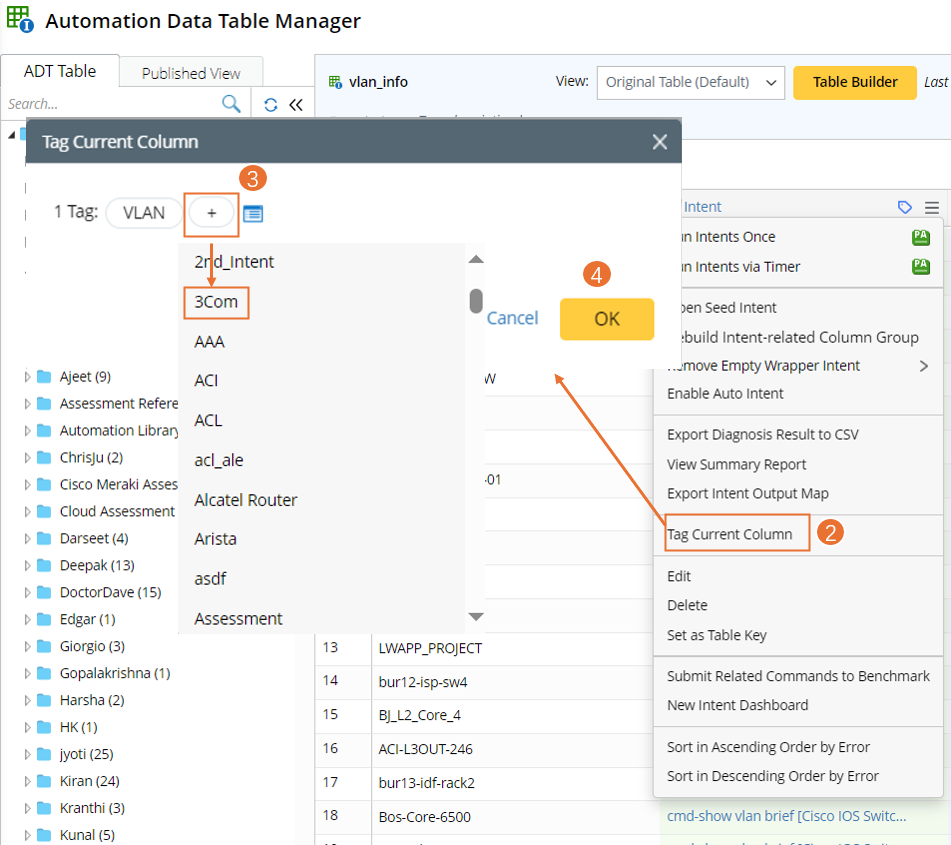

1. Open the target ADT in ADT Manager.
2. From the drop-down column of the automation column, select Tag Current Column.


3. In the pop-up dialog, click the icon to select tags (for example, tag "3Com") from the drop-down list.

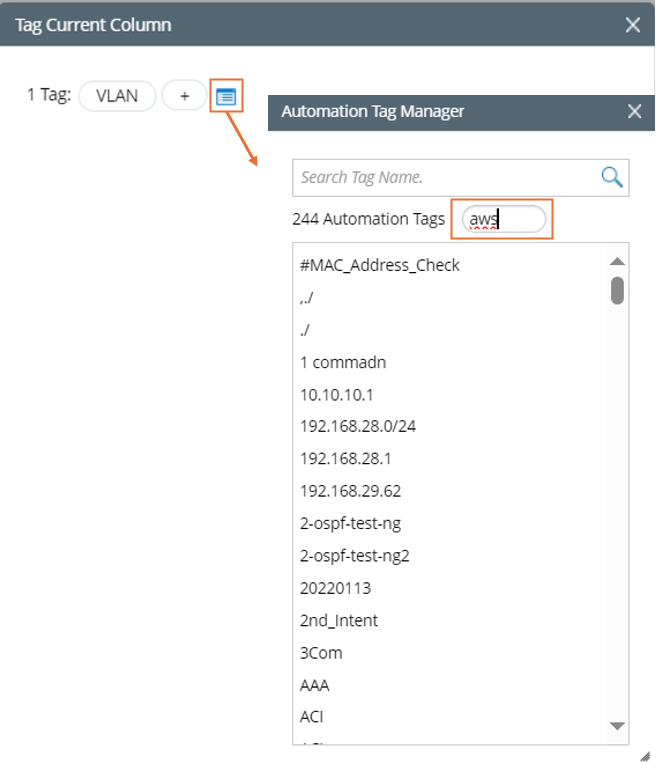

   1. If you need a new tag, click the  icon in the Tag Current Column window, then click +Add Tag to add a new tag.


4. Click OK to add the tags.

Tag Map Column or Map Automation Column

Tag Current Column dialog from the drop-down menu of the target map column or map automation column, then enter the tags.

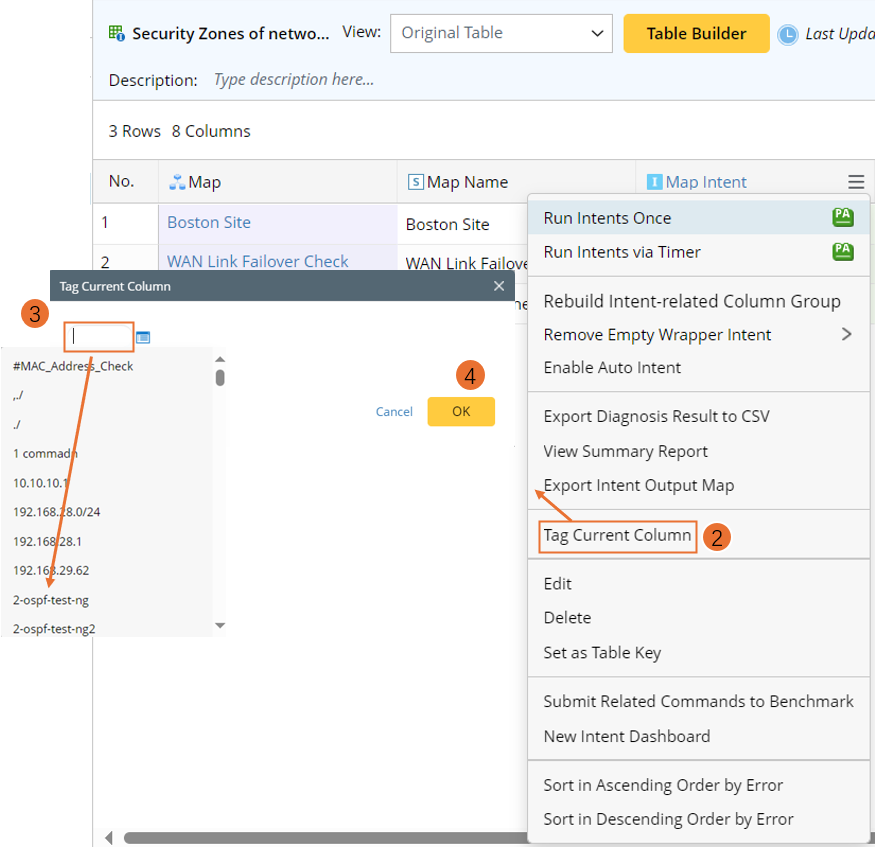

1. Open the target ADT in ADT Manager.
2. From the drop-down column of the automation column, select Tag Current Column.

3. In the pop-up dialog, click +Add to select tags from the drop-down list.

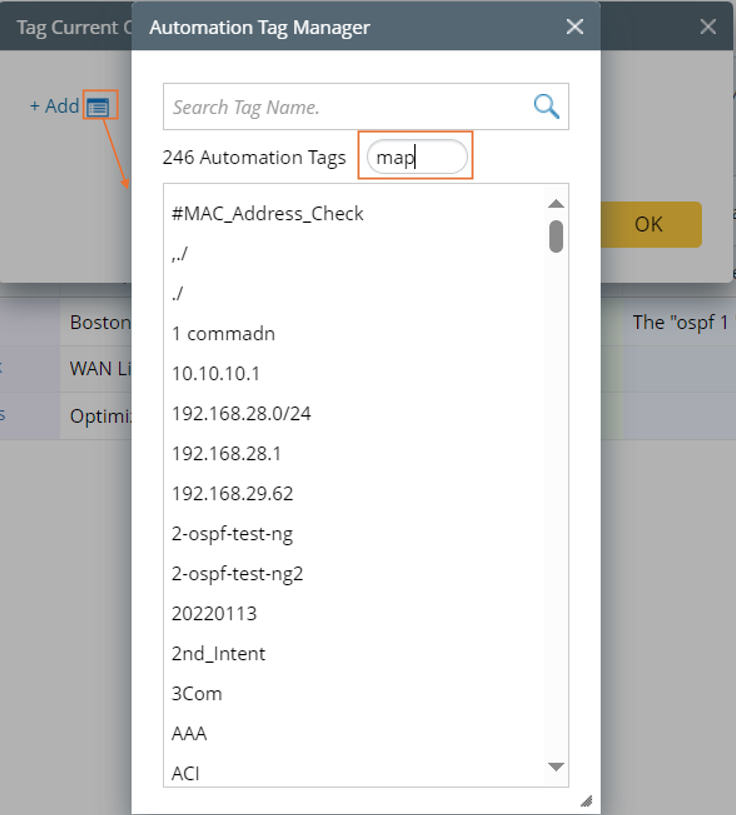

   1. If you need to use a new tag that is not included in the tag list, you can add a new tag to the Automation Tag Manager: click the icon, then click +Add Tag in the pop-up Automation Tag Manager window. Input the tag.


4. Click OK to add the tags.
