Site Map

A Site map is a container map that diagrams flexible device members in a site, which are visible to all users. The site map has the following two types:

Overview Map — shows the overall architecture of your whole network logically and physically. It has the following two views:

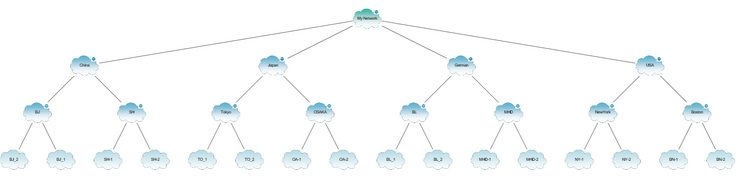

• Hierarchy View — shows the logical relationships between different sites in your domain, including container sites and leaf sites.


• Topology View — shows the connections between different leaf sites in your domain.


Site Map — shows the connections between leaf sites in a container site or devices in a leaf site. It has the following two types:

• Container Site Map — shows the connections between sites under a container site on the Layer 3 page (default page) and the connections between the site and its neighbor sites on the neighbor page.
• Leaf Site Map — shows the topologies of devices under a leaf site on the Layer 3 page (default page) and Layer 2 page and the connections between the site and its neighbor sites on the neighbor page.
