Select and Apply Parser

1. Click and open the drop-down menu of the parser.


2. Select a parser and view the parsed result. See Where Are the Parser From for more details.

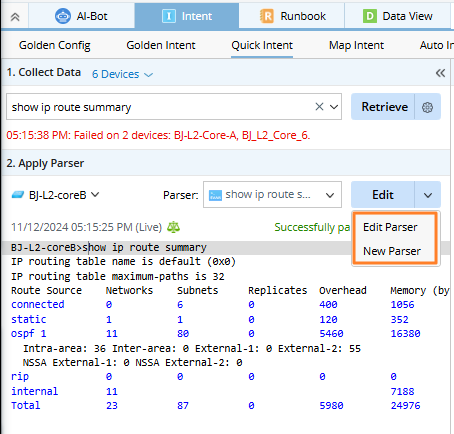

3. If the parser is not the required one, select the Edit Parser or New Parser from Edit drop-down menu to modify the current parser or create a parser. And you can decide to edit the parser for the current device or for all applicable devices.


4. You can also compare the results with the current baseline.



Where Are the Parser From

The parsers are from the following sources:

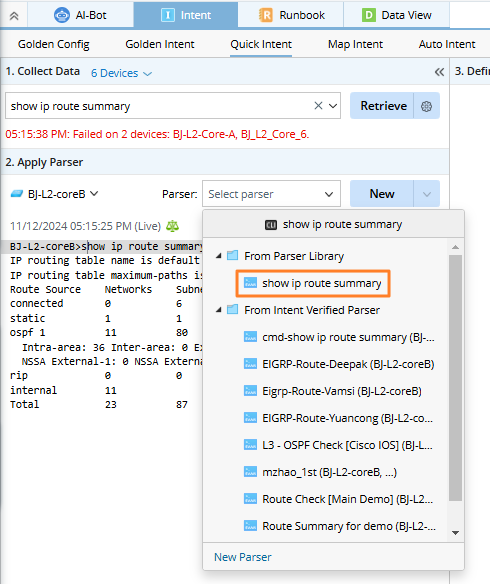

• Parser Library: List the parsers matching the selected devices and commands/configurations.
• Intent Verified Parser: The parsers in this folder have been tested by NIT decode engine, and the parsers matching by the devices which have the same commands/configurations as the selected data are displayed here.

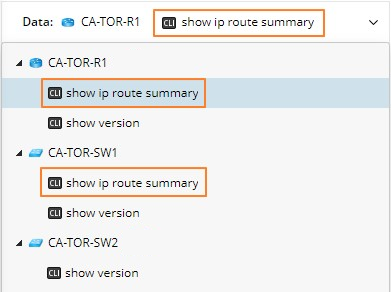

  For example: Devices CA-TOR-R1 and CA-TOR-SW1 are matching devices as they have the selected command show ip route summary, but the device CA-TOR-SW2 is not.



• Temporary Parser: You can create new parsers as needed and such parsers are listed in Temporary Parser folder. Perform “Save as” to save the temporary parser as permanent parser.
