Retrieve Device Data

You have two methods to obtain the device data:

• CLI: Use CLI commands to retrieve data.
• Config: Retrieve data from device configurations without entering command.

Example: Use CLI command to retrieve device data.

1. Select or input a CLI command.

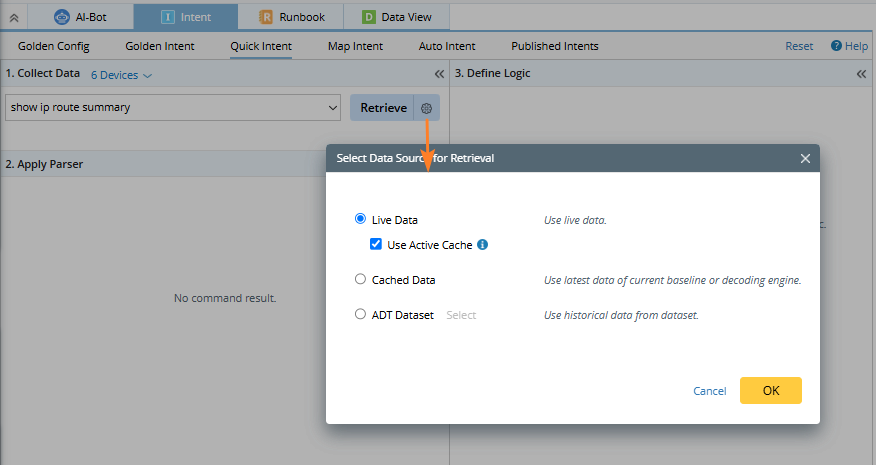

2. Click the  icon to set the data source. You can set the data resource as Live data/Cached data/ADT dataset.


   • If cached data is selected, the latest data will be displayed, which contains the current baseline or NIT decoding results.
   • Use ADT dataset option to use historical data from dataset.


3. Click Retrieve.

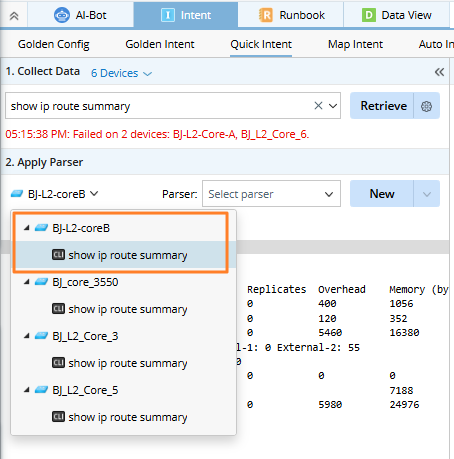

4. After successfully retrieving the data, you can select a pair of device and command to view the data.
