R12.1-JA-2025June05

Search for Maps

  1. Enter one of the following search terms in the search bar:
  • Map name
  • Map page name
  • Device hostname or management IP address
  • Interface name or IP address
  • Map note
  1. Press the Enter key on your keyboard to start searching. The search results are displayed with the matched keyword highlighted.
    Information

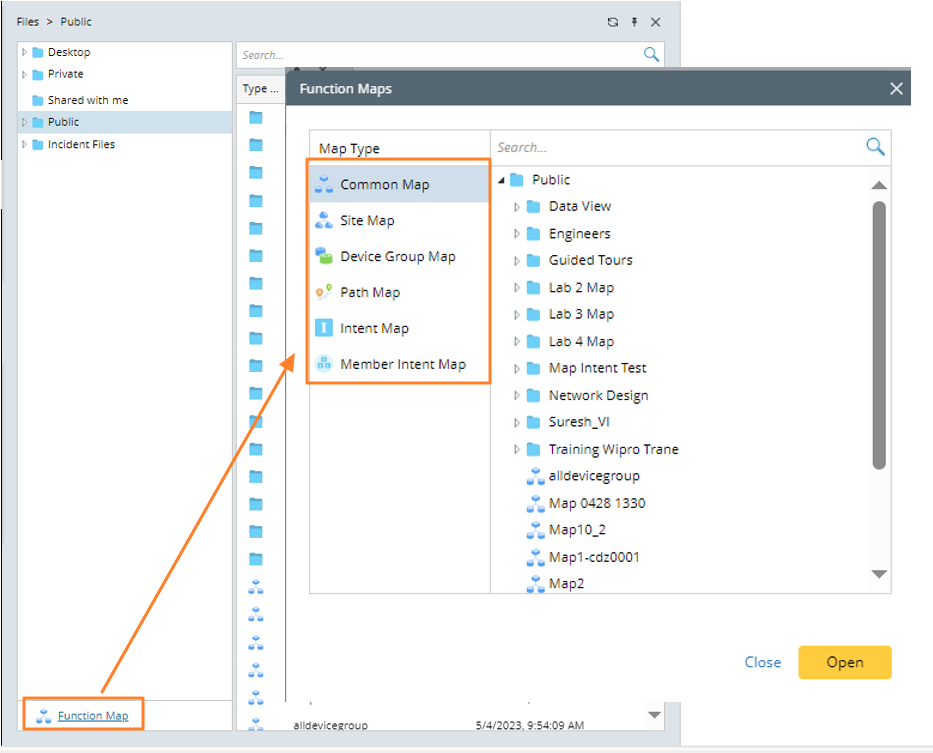

    Note: The list includes various maps, but only the "common map" supports searching. For the rest of the maps in the list, users cannot perform searches within them to find specific information.

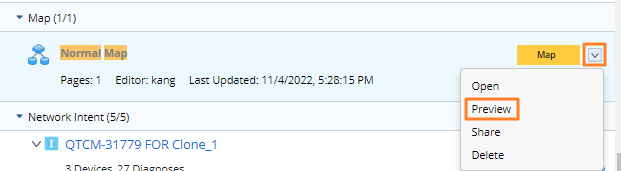

  2. Point to a map result and then click the  icon and select Preview to preview the map.

    Information Tip: You can open the map by either clicking the "Map" button or selecting "Open" from the dropdown menu .
    Information Tip: To share the map, point to the map entry and click the  icon to select Share.
