Manage All Intent Variables

• Intent Variable
  • Global Variable
  • Compound Variable
  • Built-in Data Table
• Automation Data Table
• Task Variables
• Golden Neighbor Table

Intent Variable

1. Navigate to the Variable Manager > Intent Variable. The Intent Variable tab is displayed by default.
2. You can manage intent variables and device variables here.

• For Global Variable node: Adding and managing global variables.


• For Device node: Adding device compound variable and compound table are supported.

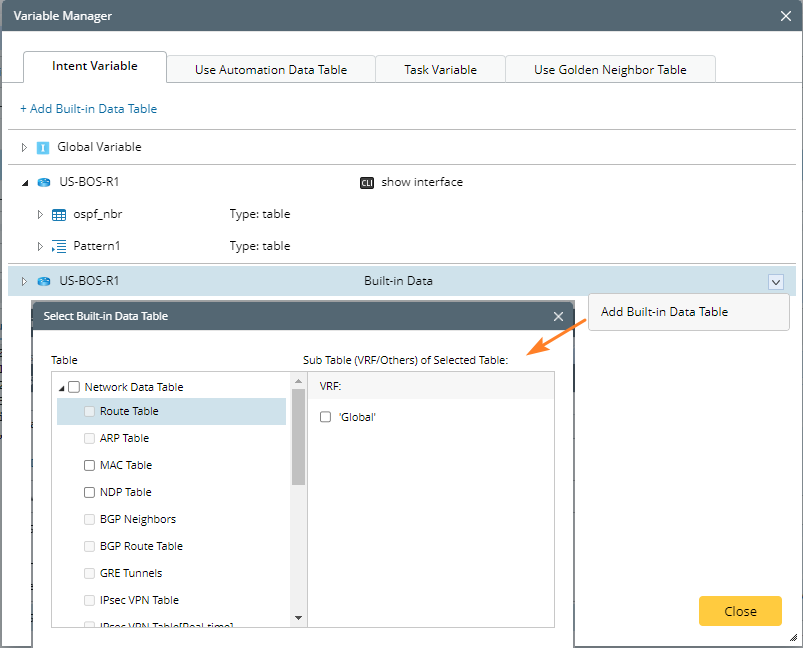

• Built-in Data node: Each device has a root node called Built-in Data and users can add built-in data table (such as device route table and NCT) here. After the built-in data is added, manage the data on this tab.

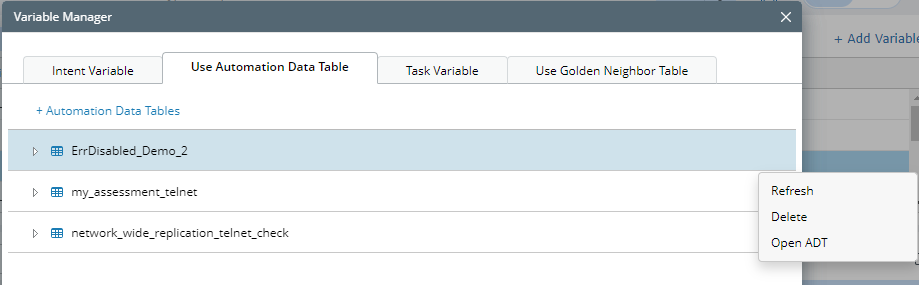

Automation Data Table

If you want to use an ADT in the current NI, add it here.

Task Variable

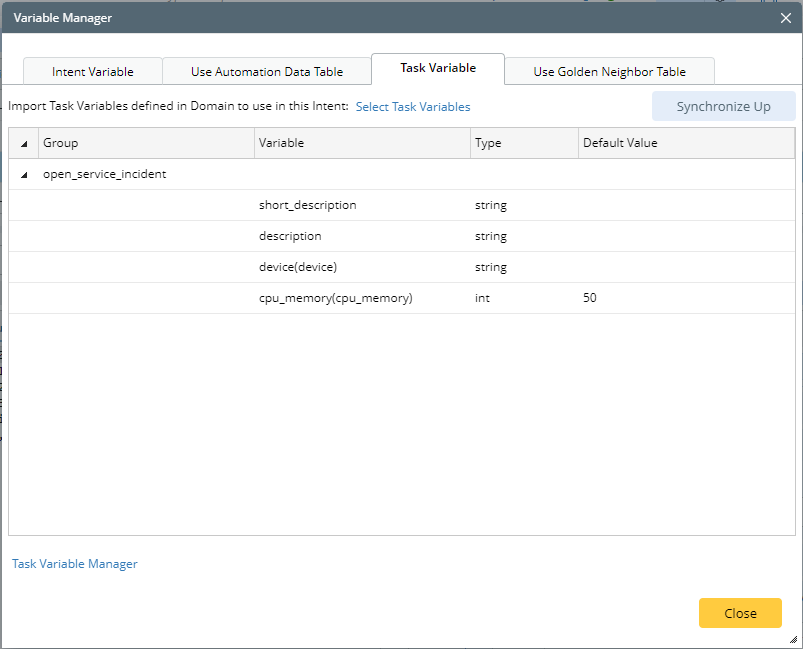

You can import task variables on this tab, then use them for intent definition, and you are also allowed to navigate to Task Variable Manager by clicking Task Variable Manager at bottom-left. See Intent Task Variable for more details.

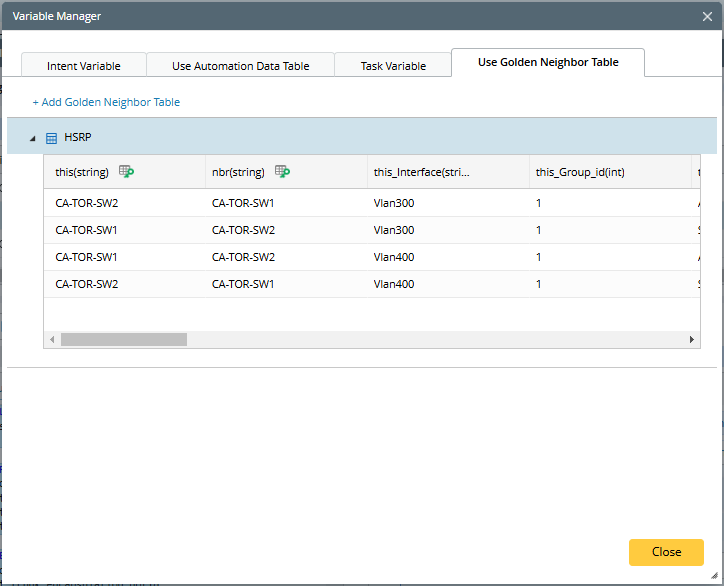

1. Add golden neighbor table to intent.


2. Loop this table to compare the HSRP priority between the device and its neighbor.
