Insert a Table

The Table stencil allows you to create structured content with enhanced layout and editing features.

• Drag and drop individual rows or columns to rearrange them.
• Resize rows and columns to improve content fit without disrupting the overall layout.
• Existing tables are automatically converted to the updated format to support improved layout and editing features.



1. Upon choosing the Table from Stencils menu, adjust the numbers for columns/rows in the popped-up window Insert Table and click OK to add table on the map.

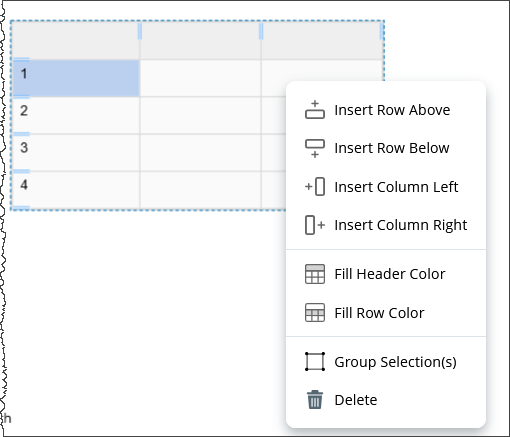

2. The following functionalities (as shown in the image) are available in the Table right click menu.


   • Insert Row above/Below and Insert Column Left/Right: Addition of Rows and Column options appear further when hovering the mouse.

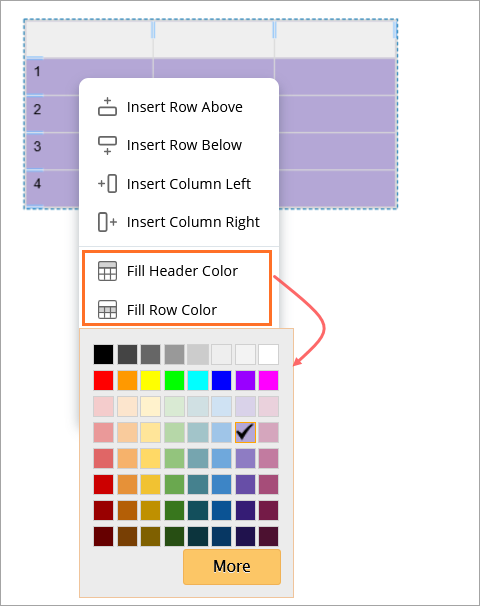

   • Fill Header Color and Fill Row Color: Select any of the two options and a color palette will appear on screen, choose the color to fill the cells.

3. Table cell right-click menu: Double click on a cell to open the editing mode and right-click to view cell properties menu:

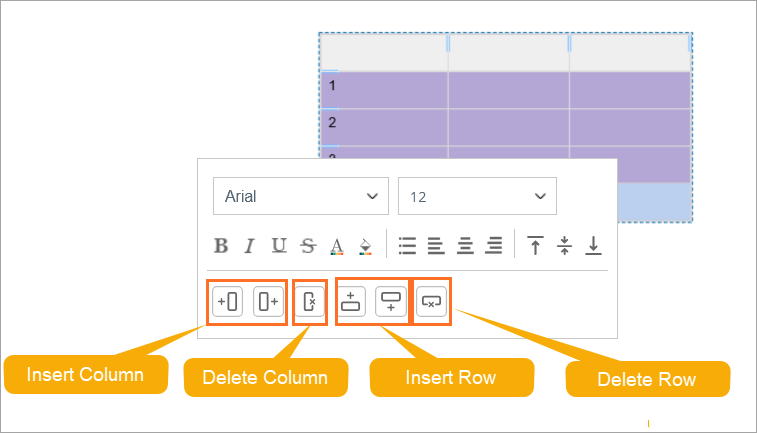

   • Insert or Delete a Column or Row.

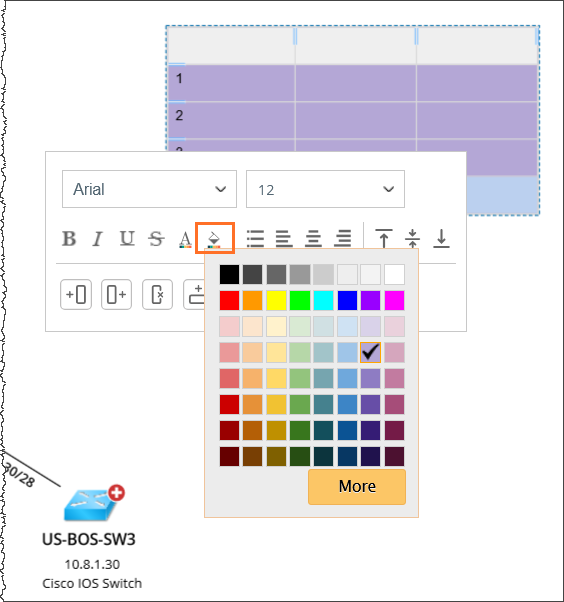

   • Modify Color to the cell background: Click on the icon to open the color palette.

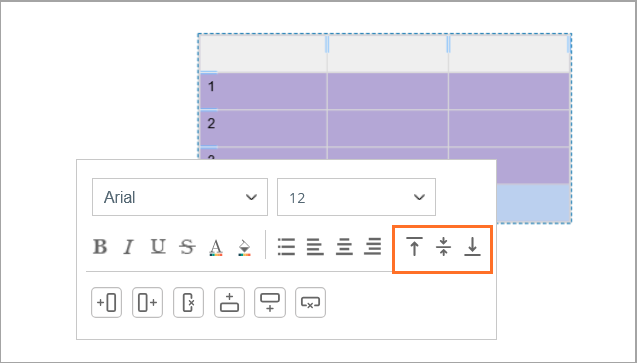

   • Adjust vertical alignment of the text in the cell: Top, Middle, Bottom


4. You can modify the multiple cells in batch:
   1. Hold Ctrl and select the desired cells.
   2. Right-click to open the cell properties menu.
   3. Edit font, color, alignment, and other properties as needed.
