Azure PaaS Services Support

Azure Platform as a Service (PaaS) provides a framework that developers can build on to develop or customize a variety of cloud-based applications. NetworkBrain can show the visibility about various PaaS services like database and topology between different Service Endpoint, Private Endpoint and various PaaS services. Also, the path feature can show the end-to-end traffic flow hop by hop from Azure or On-Prem server to the destination PaaS service, which can be used for issue troubleshooting and network traffic analysis, planning, and optimization.

Note: The feature has been available since version IE10.1.7.

Feature Scope

1. Supported PaaS Services and network object/node:


   #	Icon	Name
   1		Azure Service Endpoint
   2		Azure Private Endpoint
   3		Azure Private Link Services
   4		Azure Storage Account
   5		Azure Cosmos DB
   6		Azure Database for MySQL
   7		Azure Database for PostgreSQL
   8		Azure Database for MariaDB
   9		Azure Database for SQL Server



2. Supported sub-features:

• Device/Node Details
• Context Map
• Data View Template (DVT)
• Path


Feature Usage

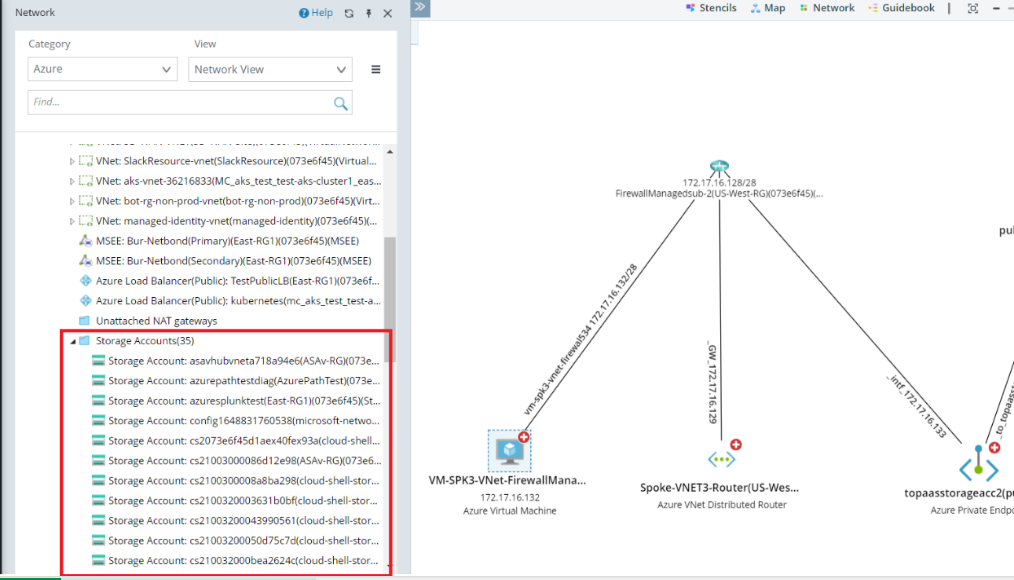

• Browse the node and topology on the map.



• Path shows up the end-to-end traffic flow, which is critical to diagnose the network reachability or service availability hop by hop with key information like route and security check details.



• Use enhanced sub-features including analyzing Device/Node Details, Context Map, Data View Template (DVT), Configuration File, and so on. For example, right-click the node icon on the map and select View Configuration File, find the basic key information for the current node retrieved by one or multiple APIs.
