Apply Default Data Source to Automation

Use Default Data Source in Intent Settings

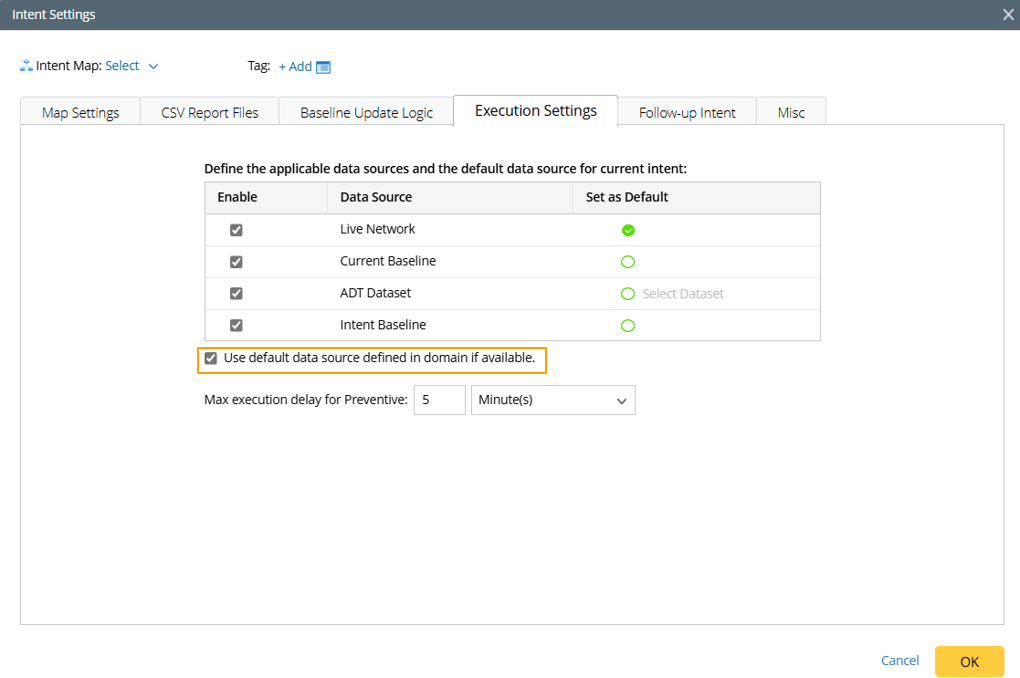

In Intent Settings in intent definition, you can set the default data source at domain level as the data source for intent execution. By default, each intent is set to use the default data source in domain for intent execution, provided it is enabled in Domain Management. You can also uncheck the Use default data source defined in domain if available checkbox and a specific the data source for intent execution.

Here are several rules of Date Source in Intent Settings

• In Playground system, the default data source defined at the domain level is automatically used for intent execution. However, these settings can be modified as needed.
• In a non-Playground system, the default data source in domain is not enabled by default. Users must manually enable it at the domain level if they wish to use it for intent execution.
• When intent is cloned, the cloned intents inherit the data source settings of the seed intent.

Note: In Golden Intent > Staging > Define tab, the Intent Settings follow the above logic in Intent.

Use Default Data Source in Intent Execution

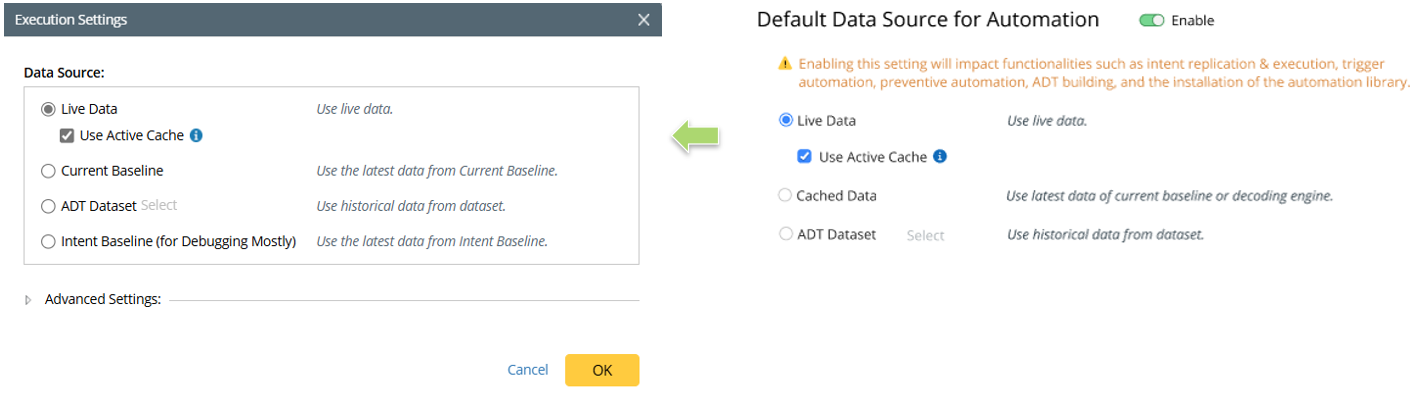

In Intent Execution Settings, the default data source configured at domain level directly affects the data source used for intent execution by applying the domain-level default data source to the Execution Settings.

Note: The Current Baseline option in Intent Execution Settings corresponds to the Cached Data option in the domain-level default data source settings.

The following lists the features related to Intent Execution Settings, where default data source can be automatically used for intent execution.

• Quick Intent – Execution Settings
• Intent Cluster – Run Intents in Batch
• PAF via ADT
• TAF – Execution Settings
• Runbook – Run Intent Node
• Schedule Run Intent
• Run intent in AI Bot Manager
• Golden Engineering Studio > Schedule
• Golden Config – Remediate

Use Default Data Source in Intent Replication

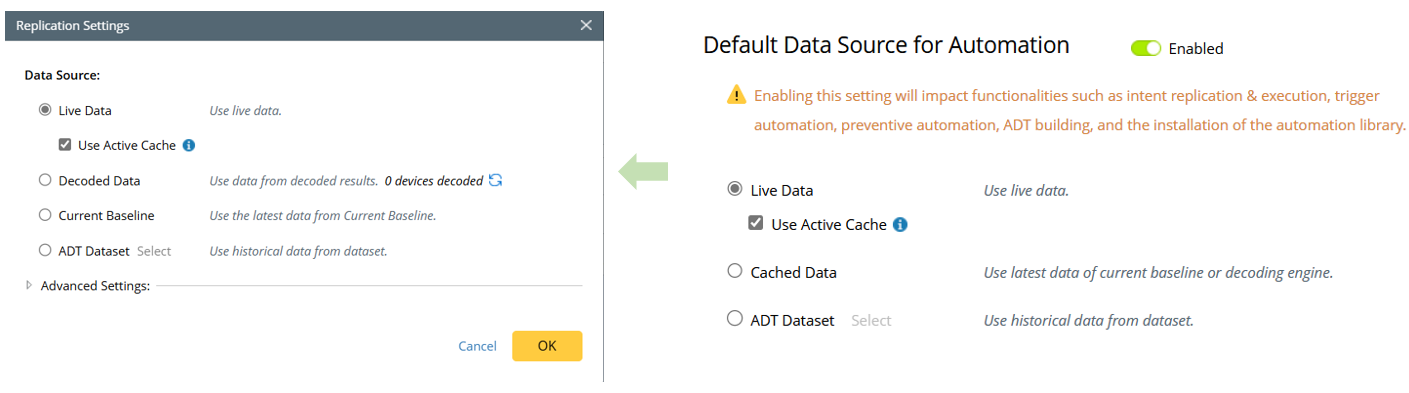

 In Intent Replication Settings, the default data source configured at the domain level is automatically applied to intent execution settings, if enabled.

Note: The Current Baseline option in Replication Settings corresponds to the Cached Data option in the domain-level default data source settings; Auto option corresponds to Live Data in domain-level default data source settings; Use config file from current baseline checkbox option corresponds to the Use Active Cache option in domain-level default data source settings.

The following lists the features related to Intent Replication Settings, where default data source can be automatically used for intent replication.

• Triggered Automation – Replication Settings
• Auto Intent - Retrieve
• Path Intent – Create via Auto Intent
• Define ADT Column Group – NIT from ADT (device-based)
• Define ADT Column Group – NIT from ADT (path-based)
• Define ADT Column Group – NIT (device-based)
• Define ADT Column Group – NIT (path-based)
• Path Intent – Create via NIT
• Map Intent – Create via NIT
• Intent Cluster - Test Replication
• Auto Intent Wizard – Test Replication
• Intent Replication Wizard (step 3 Replication Settings)
• Intent Cluster – Create Member Intent
• Golden Intent > Staging > Build tab.
• Assessment Rule > Golden Intent Generator > Re-generate

Use Default Data Source in Decoding Settings

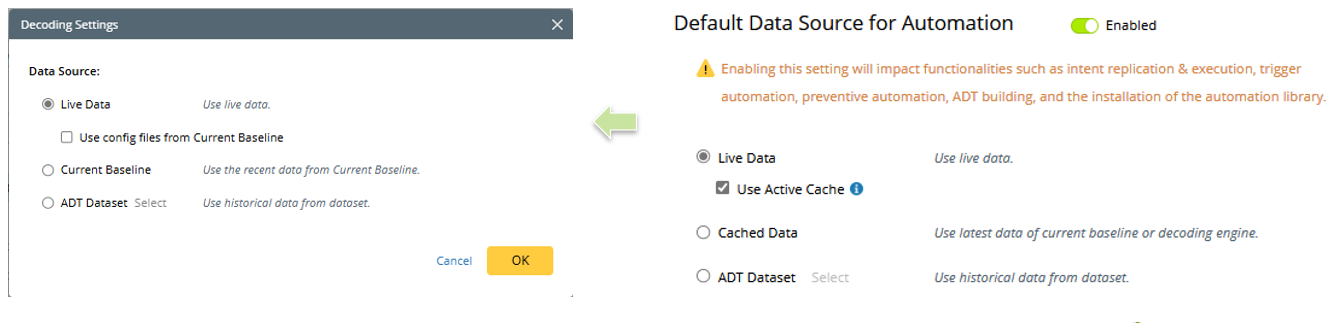

Decoding Settings are configured when installing NIT in IBA center. In Decoding Settings, the selected data source will be saved. The existing decoding settings are not influenced. The default data source configured at the domain level will be automatically applied to new decoding settings when enabled.

The following lists the features related to data retrieval, where default data source can be automatically used for decoding.

• Auto Intent Wizard – Decoding Settings
• Install NIT in IBA Center- Decoding Settings
• Build Configlet in Runbook – Configlet node

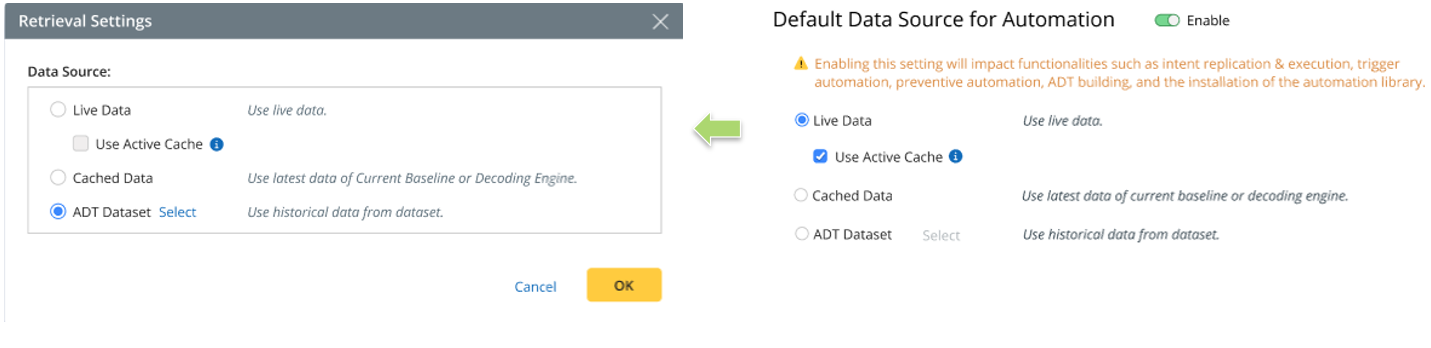

Use Default Data Source for Data Retrieval

The default data source in domain can apply to data retrieval if enabled.

The following lists the features related to data retrieval, where default data source can be automatically used for data retrieval.

• Quick Intent – Retrieve
• Parser Editor - Retrieve
• Runbook – Execute CLI Commands Node
• Golden Config Discovery – New Config Parser
• Golden Feature – Run
• Assessment Rule > Golden Intent Generator > New Parser
• Golden Assessment – Discover Reference Device and Group > New Config Parser
• Assessment Library > Generate Golden Assets
