Viewing Device Health Report

When working on a map, you may run into various anomalies of devices, such as a live access issue, a topology issue, or a path calculation failure across a device. Device Health Report provides device-level health status to help with map success.

You can analyze the report from the aspects such as Basic Information, Topology, and Path. See Device Health Report Details for more information.

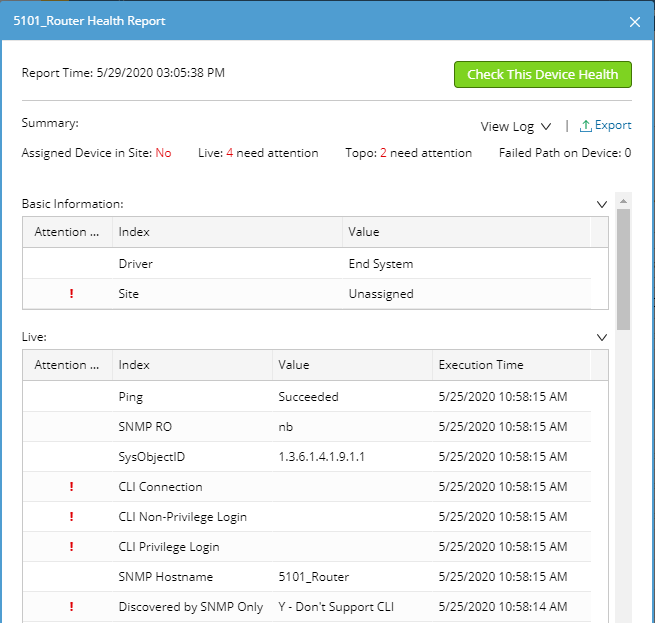

1.On a map page, right-click the target device and select Diagnosis > View Device Health Report.

Note: You can also click the start menu  and select Device Health Report to generate a report about all devices in the current domain.

2.Click Check This Device Health to generate a report for the current device.

Note: The attention () is a reminder to ask for your attention. If remedy action is not necessary, you can ignore it.

Device Health Report Details

The table lists the summary information of the report.

Category

Index

Condition Calls for Attention

Basic Info

Driver

N/A

Site

The device has not been assigned to a site.

Live

▪Ping

▪CLI Connection

▪CLI Non-Privilege Login

▪CLI Privilege Login

The value is Failed.

▪Discovered by SNMP Only

▪Missed Device

▪Hostname Changed

The value is Y.

▪SNMP RO

▪SysObjectID

▪SNMP Hostname

▪First Discovery Time

▪Last Discovery Time

N/A

Data Saved in Current Baseline

▪Configuration File

▪Route Table

▪ARP/MAC/NDP/STP Table

▪BGP Advertised-route Table

▪ARP Switch Table and so on

N/A

Topology

▪IPv4 L3 Topology - Isolated Device

▪IPv6 L3 Topology - Isolated Device

▪L3 VPN Tunnel - Isolated Device

▪L2 Overlay Topology - Isolated Device

The value is Y.

L2 Topology - NDP Collected

The value is N.

▪L2 Topology - Isolated Device

▪L2 Topology - Transparent Device

The value is Y.

▪IPv4 L3 Topology - Summary

▪IPv4 L3 Topology - Duplicated IP

▪IPv6 L3 Topology - Summary

▪IPv6 L3 Topology - Duplicated IP

▪L2 Topology - Summary

▪L3 VPN Tunnel - Summary

N/A

Path

Path/Application name

The path across the device fails.
