Using OVA File to Install NetBrain Database Server

The following sections describe how to deploy and configure the virtual appliance of NetBrain Database Server on VMware ESXi by either of the following ways:

Using vSphere Web Interface

Using vSphere Client

Using vSphere Web Interface

1.Download the netbrain-database-appliance-8.0.ova file and save it in your local folder.

Tip: Contact NetBrain Support Team to get the download link.

2.Complete the following steps to deploy NetBrain Database Server onto VMware ESXi 6.0/6.5 through the vSphere Web Interface.

Note: Using Chrome or Firefox is highly recommended.

1)Right-click Host in the Navigator pane and then select Create/Register VM.

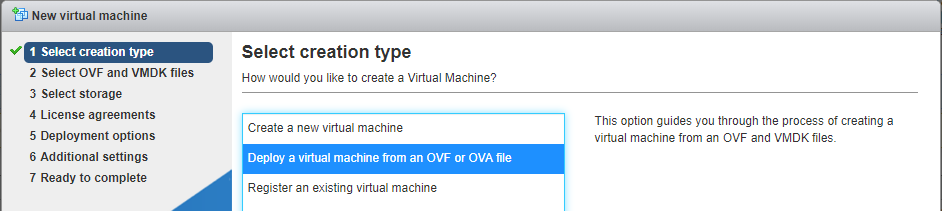

2)Select Deploy a virtual machine from an OVF or OVA file as the way to create a virtual machine, and then click Next.

3)Enter a name for the virtual machine, drag the database server installation file to the blank area, and then click Next.

4)Select a datastore to save the configuration files and all virtual disks of the virtual machine, and then click Next.

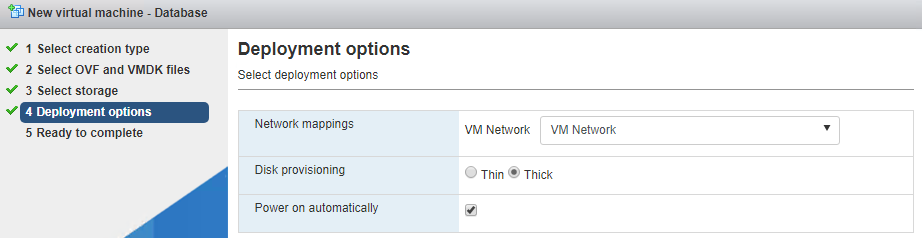

5)Configure the deployment options, and then click Next.

Network mappingspecify the network connectivity between the virtual machine and the physical machine.

Disk provisioningspecify the provisioning format for a virtual machine.

oThinonly a certain amount of storage space on a datastore is provisioned to virtual disk files when the virtual machine is created.

oThick (recommended)— all the space designated for the virtual disk files on a datastore is reserved when the VM is created.

Power on automaticallyselect the check box to make the virtual machine powered on automatically after the deployment.

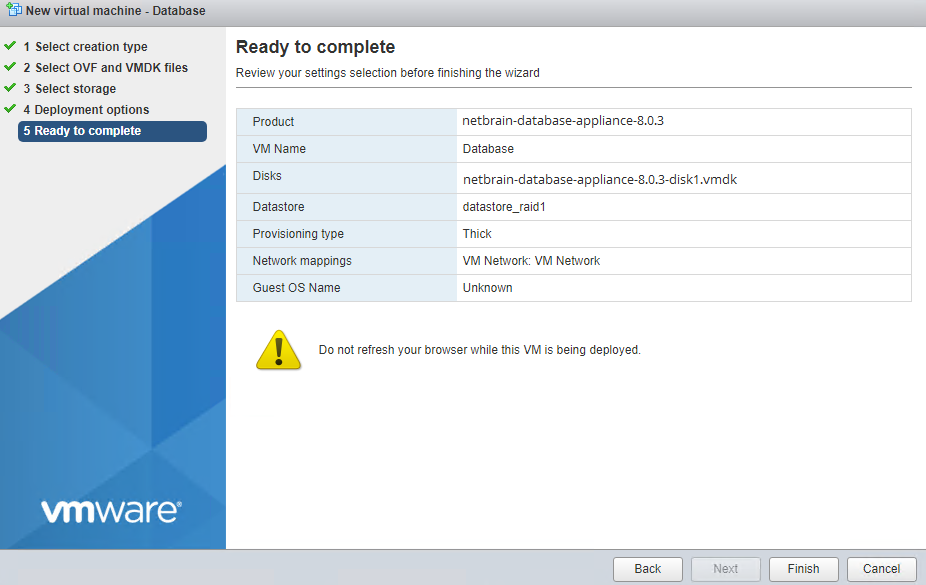

6)Review the deployment settings and click Finish.

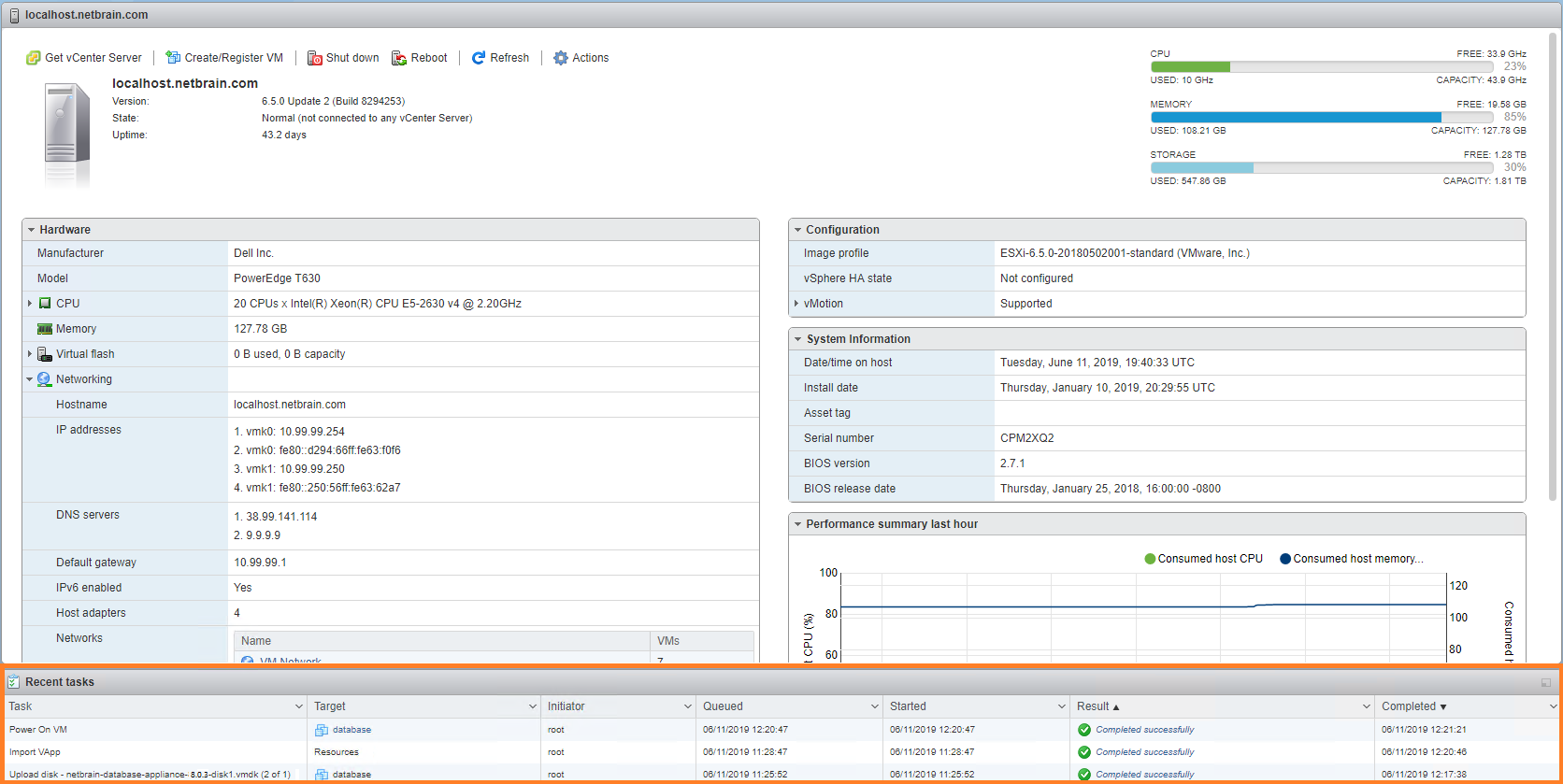

7)A new task for creating the virtual machine appears in the Recent tasks pane.

3.On the Virtual Machines tab, select the virtual machine you created, and then click Console > Open browser console to open a console window.

4.Configure the Virtual Appliance.

Using vSphere Client

1.Download the netbrain-database-appliance-8.0.ova file  and save it in your local folder.

Tip: Contact NetBrain Support Team to get the download link.

2.Complete the following steps to deploy NetBrain Database Server onto VMware ESXi by using vSphere Client.

1)Click File > Deploy OVF Template from the ribbon toolbar.

2)Click Browse to specify the location of the netbrain-database-appliance-8.0.ova file, and then click Next.

3)Review the details of the OVF template, and click Next.

4)Review the name of the virtual machine, and then click Next.

5)Specify the format to store the virtual disk, and then click Next.

Thick Provision Lazy Zeroed (recommended) — all the storage space on a datastore is provisioned to the virtual disk files when the virtual machine is created. When the virtual machine writes new data to the disk for the first time, the blocks containing older data on the storage device are cleared.

Thick Provision Eager Zeroed all the storage space on a datastore is provisioned to the virtual disk files when the VM is created. Blocks on the physical storage device are formatted with zeros to overwrite any older data.

Thin Provision — only a certain amount of storage space on a datastore is provisioned to the virtual disk files when the VM is created.

6)Review the deployment settings and click Finish.

7)A dialog box prompts after the deployment is completed successfully. Click Close.

Tip: To make the virtual machine automatically powered on after the deployment, you can select the Power on after deployment check box and skip step 3.

3.Click the icon from the toolbar to start the virtual machine manually if it is not powered on automatically.

4.Configure the Virtual Appliance.

Configuring the Virtual Appliance

Note: Make sure the time on the virtual machine is synchronous with the Internet time server.

1.Enter the username root and password admin at the VMware console to log in to the NetBrain Database Server.

CentOS Linux 7 (Core)
Kernel 3.10.0-1127.el7.x86_64 on an X86_64

netbrain-data-server login: root
Password:
Last  Login: Sat Sep 16 12:33:05 on tty1
[[email protected] ~]#

2.Configure a static IP address for your NetBrain Database Server as follows.

1)Run the ifconfig command to find your network interface name. In the following example, the network interface name is ens32.

Example:

[[email protected] ~]# ifconfig
ens32: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet6 fe80::e80:8f64:655c:4c32  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:6e:55:29  txqueuelen 1000  (Ethernet)
        RX packets 124 bytes 8200 (0.0 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 13 bytes 2334 (2.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
         inet 127.0.0.1  netmask 255.0.0.0
         inet6 ::1  prefixlen 128  scopeid 0x10<host>
         loop  txqueuelen 1  (Local Loopback)
         RX packets 0  bytes 0 (0.0 B)
         RX errors 0  dropped 0  overruns 0  frame 0
         TX packets 0  bytes 0 (0.0 B)
         TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

2)Run the vi /etc/sysconfig/network-scripts/ifcfg-<interfacename> command to edit the configuration file of the network interface and save the changes. <interfacename> is the network interface name you find in step 1). For how to modify the configuration file, refer to Editing a File with VI Editor.

Example: vi /etc/sysconfig/network-scripts/ifcfg-ens32

TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens32
UUID=8c9772d4-99cd-4fb6-bf8a-c6d808ada124
DEVICE=ens32
ONBOOT=yes
ZONE=public
IPADDR=10.10.3.142
PREFIX=22
GATEWAY=10.10.7.254
DNS1=10.10.10.7

3)Run the systemctl restart network command to restart the network service.

4)Run the ifconfig command to check whether the IP configuration takes effect. If it does not take effect, restart the server, and then run the ifconfig command to check the IP configuration again.

3.Create a snapshot of the virtual machine in case you want to restore from a backup.

4.Run the ./configure_netbrain.sh command under the /root directory to install NetBrain Database Server components.

1)Read the license agreement, and then type YES and press the Enter key.

2)Type I ACCEPT and press the Enter key to accept the license agreement.

[[email protected] ~]# ./configure_netbrain.sh

Please read the End User License Agreement (“EULA”) for the license type (perpetual or subscription)
purchased in the order form at https://www.netbraintech.com/legal-tc/ carefully. I have read the
subscription EULA, if I have purchased a subscription license, or the perpetual EULA, if I have
purchased a perpetual license, at the link provided above. Please type “YES” if you have read the
applicable EULA and understand its and understand its contents, or “NO” if you have not read the
applicable EULA. [YES/NO]: YES

Do you accept the terms in the subscription EULA, if you have purchased a subscription license, or
the perpetual EULA, if you have purchased a perpetual license? If you accept, and to continue with
the installation, please type "I Accept" to continue. If you do not accept, and to quit the
installation script, please type "CANCEL" to stop. [I ACCEPT/CANCEL]: I ACCEPT

3)Configure the following parameters of NetBrain Database Server one by one with an interactive command line.

Install NetBrain Linux components.
The values in brackets are the default values of the parameters. To keep the default value for the current parameter, press the Enter key.
Please enter the IP address of this machine [10.10.3.142]:
Please create NetBrain service name [admin]:
Please create NetBrain service password: Admin
Please re-enter NetBrain service password to confirm: Admin
Use SSL on NetBrain Database Services [no]:
Use customized server ports? [no]
Please enter the URL (must end with /) to call NetBrain Web API service for the Service Monitor
[http(s)://<IP address or hostname of NetBrain Application Server>/]: http://10.10.3.141/

Note: Keep notes of the username and password, because it will be used later.

4)After these parameters are configured, the key configurations for each component are listed for your further confirmation. To continue the installation with the current configurations, press the Enter key; to change any configurations, type no.

Note: The configure_netbrain.sh command can only be executed once and cannot be executed after this step. To re-run the command, you have to restore the snapshot you created.

MongoDB IP address:             10.10.3.142
MongoDB port:                   27017
MongoDB username:               admin
MongoDB password:               ******
MongoDB uses SSL:               no

License Agent port:             27654
License Agent uses SSL:         no

Elasticsearch address:          10.10.3.142
Elasticsearch port:             9200
Elasticsearch username:         admin
Elasticsearch password:         ******
Elasticsearch uses SSL:         no

RabbitMQ address:               10.10.3.142
RabbitMQ port:                  5672
RabbitMQ username:              admin
RabbitMQ password:              ******
RabbitMQ uses SSL:              no

Redis address:                  10.10.3.142
Redis port:                     6379
Redis password:                 ******
Redis uses SSL:                 no

NetBrain Web API service URL:   http://10.10.3.141/ServicesAPI

Do you want to continue using these parameters? [yes]

Tip: The messages and logs generated during the virtual appliance configurations are recorded in the /var/log/netbrain/ova/config.log directory, which can be used for tracing and troubleshooting issues.

5.Run the following commands to verify the status of the MongoDB, License Agent, Elasticsearch, RabbitMQ, Redis (stunnel if SSL is enabled), and Service Monitor Agent individually.

     - systemctl status mongod

[[email protected] ~]# systemctl status mongod
  mongod.service - MongoDB service
   Loaded: loaded (/usr/lib/systemd/system/mongod.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:10 EDT; 2min 4s ago
  Process: 6136 ExecStart=/bin/mongod -f /etc/mongodb/mongod.conf (code=exited, status=0/SUCCESS)
 Main PID: 6375 (mongod)
   Memory: 902.3M (limit: 17.1G)
...

- systemctl status netbrainlicense

[[email protected] ~]# systemctl status netbrainlicense
 netbrainlicense.service - NetBrain license agent service
   Loaded: loaded (/usr/lib/systemd/system/netbrainlicense.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:10 EDT; 2min 4s ago
 Process: 16490 ExecStart=/usr/bin/netbrainlicense/licensed -f /etc/netbrainlicense/licensed.conf (code=exited, status=0/SUCCESS)
 Process: 16488 ExecStartPre=/bin/chmod o+r /sys/class/dmi/id/product_uuid (code=exited, status=0/SUCCESS)
 Main PID: 16492 (licensed)
   Memory: 15.0M
...

- systemctl status elasticsearch

[[email protected] ~]# systemctl status elasticsearch
 elasticsearch.service - Elasticsearch
   Loaded: loaded (/usr/lib/systemd/system/elasticsearch.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:10 EDT; 2min 4s ago
     Docs: http://www.elastic.co
 Main PID: 5922 (java)
   Memory: 4.6G
...

- systemctl status rabbitmq-server

[[email protected] ~]# systemctl status rabbitmq-server
 rabbitmq-server.service - RabbitMQ broker
   Loaded: loaded (/usr/lib/systemd/system/rabbitmq-server.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:20 EDT; 2min 58s ago
 Main PID: 4509 (beam.smp)
   Status: "Initialized"
   Memory: 96.5M
...

- systemctl status redis

[[email protected] ~]# systemctl status redis
 redis.service - Redis
   Loaded: loaded (/usr/lib/systemd/system/redis.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:01 EDT; 3min 27s ago
 Main PID: 52318 (redis-server)
 Memory: 7.7M
...

- systemctl status netbrainagent

[[email protected] ~]# systemctl status netbrainagent
 netbrainagent.service - NetBrain Service Monitor Agent Daemon
   Loaded: loaded (/usr/lib/systemd/system/netbrainagent.service; enabled; vendor preset: disabled)
   Active: active (running) since Sat 2019-05-04 23:19:09 EDT; 5min ago
 Main PID: 4520 (python3)
   Memory: 73.5M
...

Parameters

Refer to the following table for the parameters of the NetBrain Database Server.

Parameter

Default Value

Description

Data path

/var/lib/netbrain

The directory to save data of all NetBrain Linux components. You can press the Enter key to keep the default path or type a new one.

Log path

/var/log/netbrain

The directory to save logs of all NetBrain Linux components. You can press the Enter key to keep the default path or type a new one.

IP address of this machine

<current IP address automatically obtained from the machine>

The IP address of this server. It will be used for establishing connections with NetBrain Application Server. You can press the Enter key to keep the default value or type a new one.

Note: 127.0.0.1 is not supported.

Note: If you configured multiple network cards on this machine, type the designated IP address to be bound.

NetBrain service username

admin

The admin username and password created for MongoDB, Elasticsearch, RabbitMQ, Redis, Front Server and Service Monitor.

Note: The username and password cannot contain any of the following special characters, and their lengths cannot exceed 64 characters.
{ } [ ] : " , ' | < > @ & ^ % \ and spaces

Note: The username and password cannot be empty and it cannot start with ! or #.

Note: Keep notes of the NetBrain service username and password because they will be used for validating the connections with:
 - MongoDB, Elasticsearch, RabbitMQ, and Redis when installing NetBrain Application Server
 - Front Server Controller when setting up the system
 - Service Monitor Agent when communicating with Web API Server

NetBrain service password



Use SSL on NetBrain Services

no

Whether to enable SSL on NetBrain Database Server. To enable SSL, type yes.



Certificate file path



The file name of the certificate file that contains the public key.

Note: It is required only if Use SSL on NetBrain Services is enabled.

Private Key file path



The file name of the private key file.

Note: It is required only if Use SSL on NetBrain Services is enabled.

Certificate Authority file path



The name and directory of the chain certificate authority (CA) file, which is used to authenticate the CA issuing the SSL certificates.

Note: It is required only if Use SSL on NetBrain Services is enabled.

Use customized server ports?

no

Whether to use customized port number for each Linux component. To customize ports, type yes.

MongoDB port

27017

The port number that the MongoDB service listens to. You can press the Enter key to keep the default port or type a new one.

Note: Make sure the port is not used by other applications. The value cannot be modified anymore after it is specified.

Note: Keep notes of the customized port because it will be used for validating the connections with MongoDB when installing NetBrain Application Server.

License Agent port

27654

The port number that the License Agent service listens to. You can press the Enter key to keep the default port or type a new one.

Note: Make sure the port is not used by other applications. The value cannot be modified anymore after it is specified.

Note: Keep notes of the customized port because it will be used for validating the connections with License Agent when installing NetBrain Application Server.

Elasticsearch port

9200

The port number that the Elasticsearch service listens to. You can press the Enter key to keep the default port or type a new one.

Note: Make sure the port is not used by other applications. The value cannot be modified anymore after it is specified.

Note: Keep notes of the customized port because it will be used for validating the connections with Elasticsearch when installing NetBrain Application Server.

Rabbitmq port

5672

The port number that the RabbitMQ service listens to. You can press the Enter key to keep the default port or type a new one.

Note: Make sure the port is not used by other applications. The value cannot be modified anymore after it is specified.

Note: Keep notes of the customized port because it will be used for validating the connections with RabbitMQ when installing NetBrain Application Server.

Redis port

6379 (non-SSL)
7000 (SSL)

The port number that the Redis service listens to. You can press the Enter key to keep the default port or type a new one.

Note: Make sure the port is not used by other applications. The value cannot be modified anymore after it is specified.

Note: Keep notes of the customized port because it will be used for validating the connections with Redis when installing NetBrain Application Server.

URL to call NetBrain Web API service for the Service Monitor

http(s)://<IP address or hostname of NetBrain Application Server>/

The URL to call NetBrain Web API service. For example, http://10.10.3.141/ or https://www.YOURCOMPANY.com/.

Note: If SSL will be enabled with https binding created for the system website in IIS Manager, type https in the URL.

Note: When you type https in the URL, the CA verification will not be performed during the installation by default. To verify the CA certificate, complete the following steps after the installation:

1)Run the cd /etc/netbrain/nbagent command to navigate to the /etc/netbrain/nbagent directory.

2)Run the vi agent.conf command to edit the agent.conf file as follows and save the changes. For more details on how to edit the file with the vi editor, refer to Editing a File with VI Editor.

Modify the value of the enable_ssl_validation parameter to True.

Remove the pound sign (#) in front of the cert_path parameter, and then enter the path of the CA certificate file.

Example:

# enable ssl validation (default:False)
enable_ssl_validation: True
cert_path: /etc/ssl/smca.pem

3)Upload the CA certificate file under the specified path.
