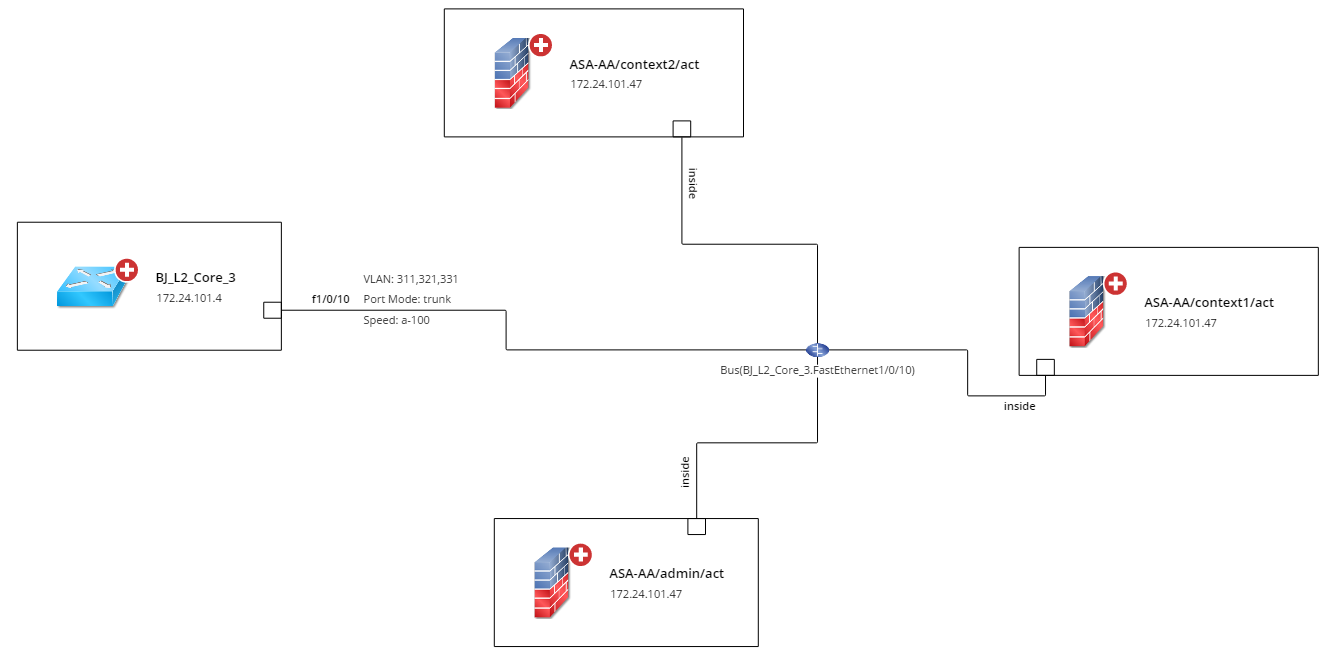

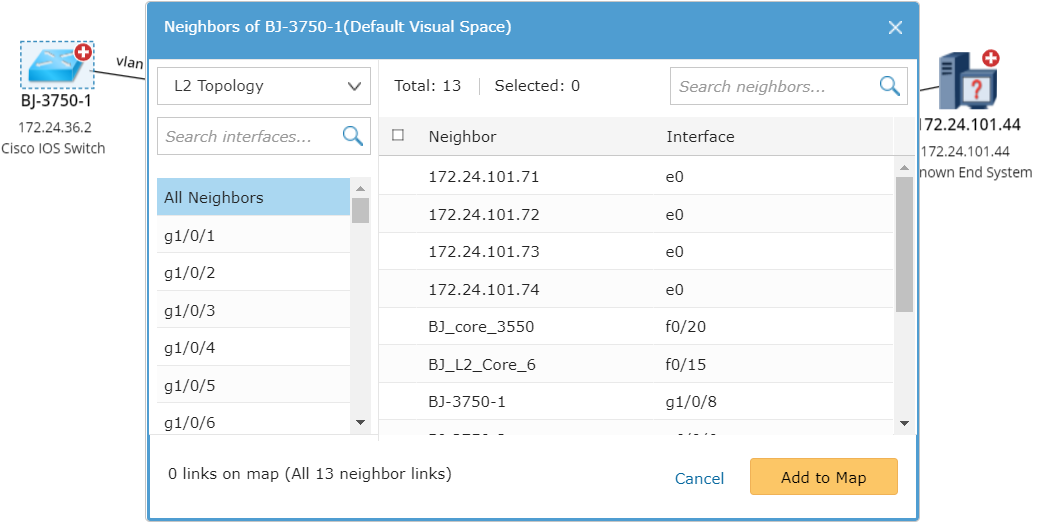

Layer 2 topology links can be drawn on the same map page with layer 3 topology links, by extending neighbors or auto link.
1.Search for the target device by IP address or hostname in the search bar. See Searching for Devices for more details.
2.Drag the device icon from the search result to your NetBrain desktop. The device will be diagrammed on a map.
▪To switch between logical ports or physical ports in port channels, right-click the blank area and then select Port Channel > Show All logic Ports/Show All Physical Ports. To switch to a specific link, right-click the link.
▪To highlight VLAN on the map, right-click the blank area to select Run Qapp from the drop-down menu, and then select the Highlight VLAN under the Highlighting category.
▪To view the detailed interface information about a device, right-click the device and then select View Device Details. Click Interface under the Property tab.
