Managing Hostname-Changed Devices
Contents
The system uses hostname as the unique identifier for each device in a live discovery, so the device which has hostname change will be treated as a new one and re-added to a domain. It will lead to duplicated IPs and reduce topology accuracy.
Complete the following steps to identify and manage the devices with hostname change.
1.Log in to the Domain Management page.
2.In the Domain Management page, click Fine Tune on the Start Page or select Operations > Fine Tune from the quick access toolbar.

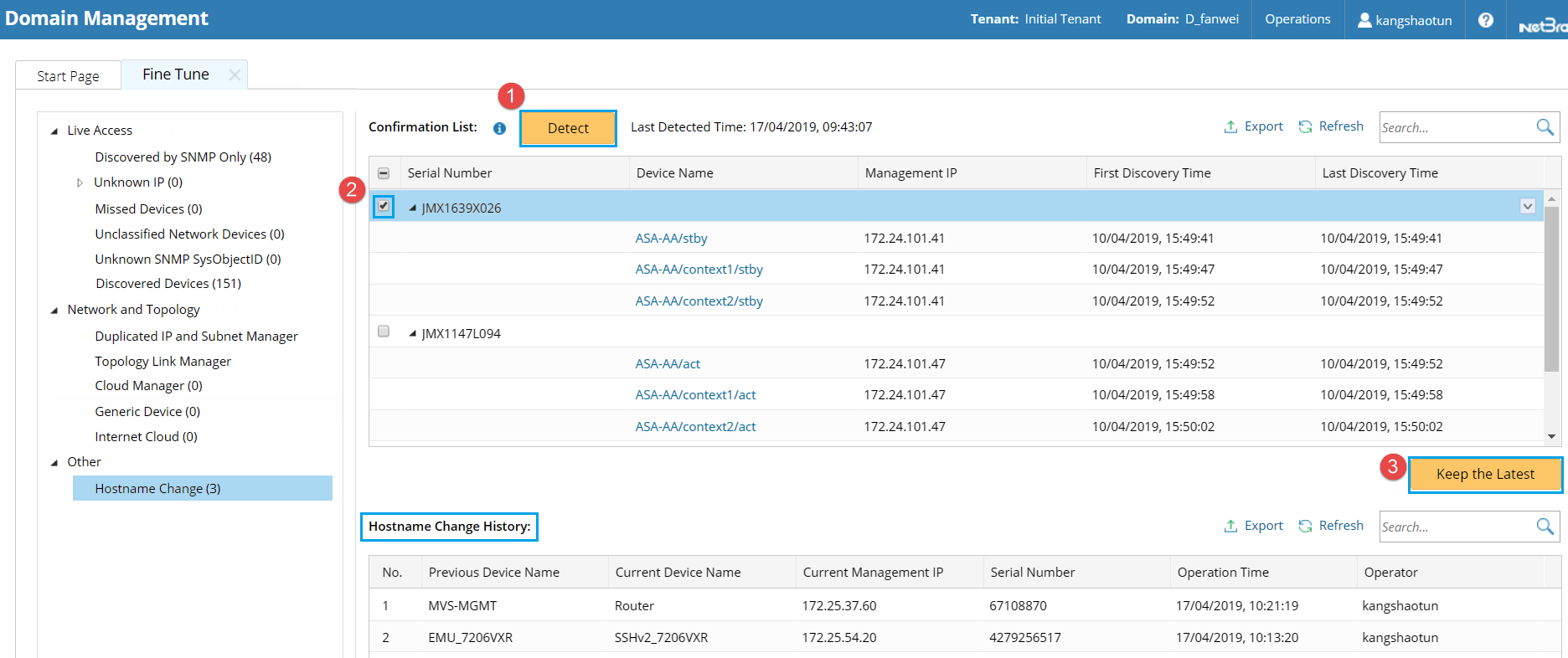

3.In the Fine Tune tab, click Hostname Change in the left pane.
1)Click Detect to list the devices with the same serial number but different hostnames.
2)Review the devices in the Confirmation List and select the check box for target serial numbers.
3)Click Keep the Latest. The old hostnames saved in some features will be updated to the new ones. See Updated Feature/File for more information about what has been updated.
Note: The Keep the Latest operation is irreversible.
Updated Feature/File
Feature/File |
Description |
|---|---|
Config File |
The configuration file of the device will be updated to the new one. |
One IP Table |
The old device name will be updated to the new name. |
GDR |
▪Device: The data of the new device will overwrite the data of the old one. ▪Interface: Keep the interface information of the old device, and delete the information of the new device. |
Share/Private Device Settings |
The data of the new device will overwrite the data of the old one. |
Device Group |
Old device hostnames in the device group will be updated to the new hostnames. |
Site |
Old device hostnames in the site will be updated to the new hostnames. |
MPLS CE List and VRT |
Old hostnames of CE devices will be updated to the new hostnames. |
Topology |
Rebuild the topology manually to ensure its accuracy after clicking Keep the Latest. |
Map |
The old device names will be changed to the new names after updating the map. |
Site Map |
The old device names will be changed to the new names after updating the map. |
Default Data View |
The default data views of the old and new device will be deleted, and the rebuilding of the data view will be triggered when the next time the map is open. |
Data View |
Old device hostnames in data view will be updated to the new hostnames. |
Customized Device Icon |
If the users customize the device icons for the devices with old hostnames, the correspondence remains unchanged between the customized icons and the devices with new hostnames. |
Context Map |
Old hostnames in the context map will be updated to new hostnames. |
Other Features |
The data saved in some other features will also be updated. |
