Example: Create a voice context for one of the main voice flows in your company.
1.Click Network on the taskbar.

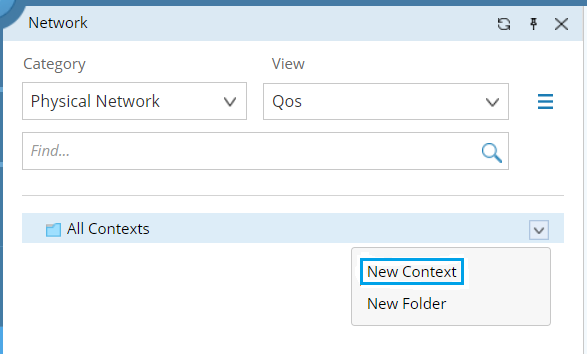

2.Under the Physical Network category, click the View drop-down list, then right-click the All Views to create a new view type QoS.

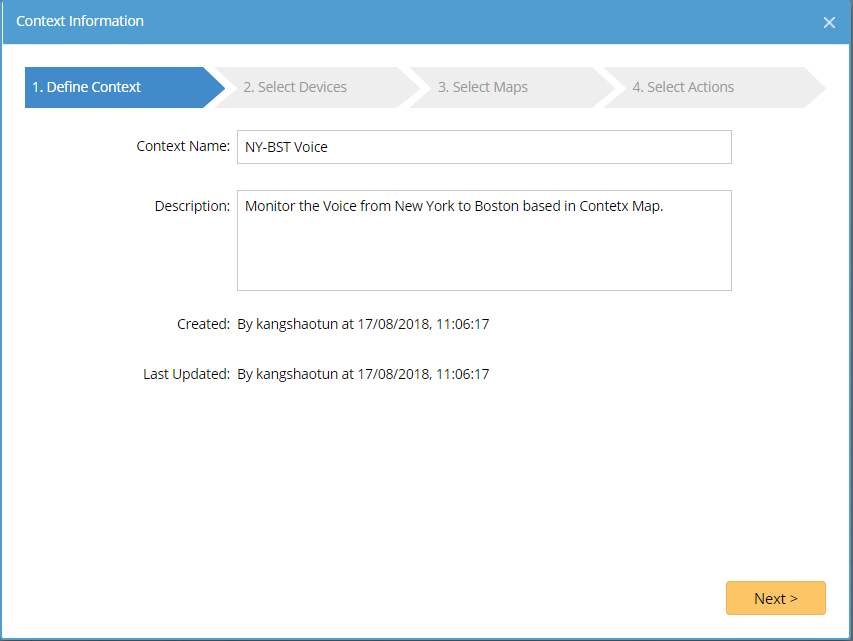

4.In the pop-up Context Information dialog, proceed with the following steps to define the context information.

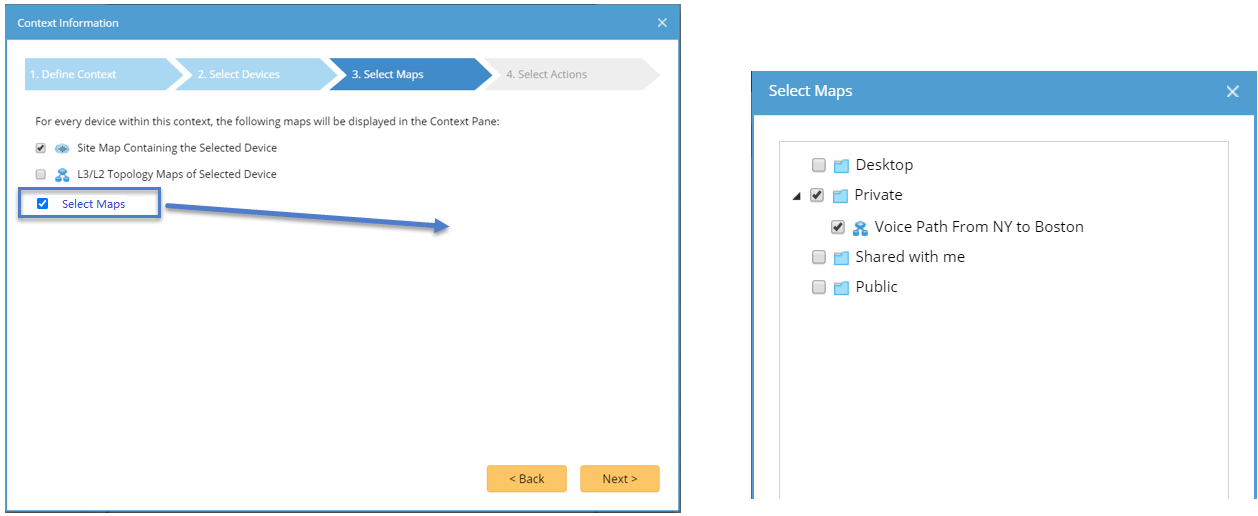

3)Select context maps. The optional maps contain site maps and Layer 3 or Layer 2 topology maps relevant to the target devices. You can also select a predefined map as needed. In this case, you can calculate the voice flow path from NYC to Boston and add it as a context map. Click Next.

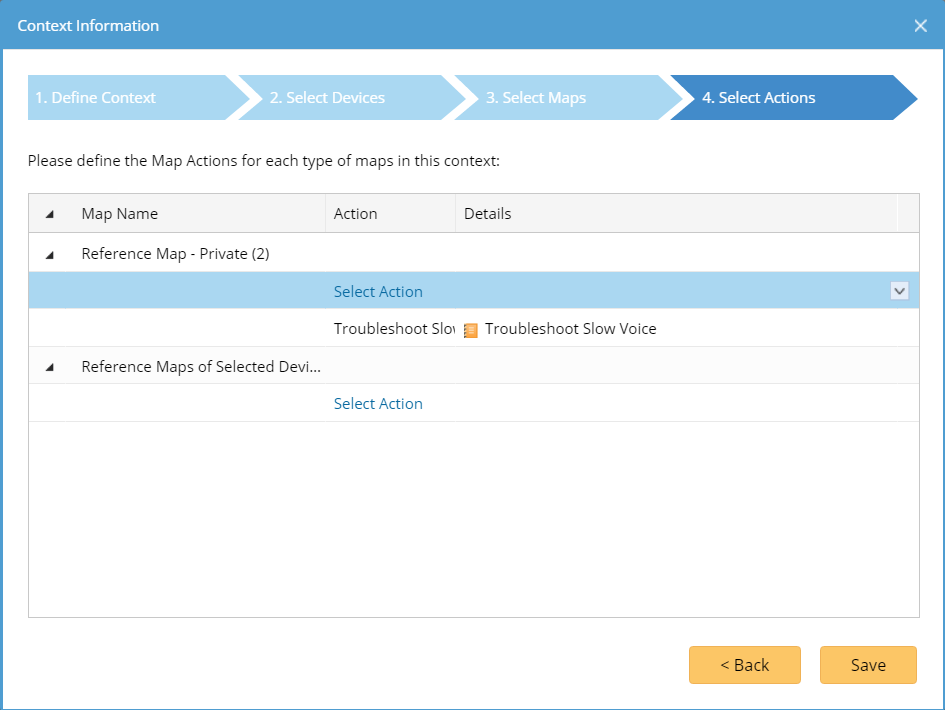

4)Select context actions. You can define actions for a specific map and a class of map (such as site map and device group map). In this example, select the runbook template Troubleshoot Slow Voice (to monitor QoS interface parameters and highlight QoS configuration and QoS Interface Queuing Strategy). Then click Save.
