Knowledge Cloud is a centralized resource base housing various types of regular/customized NetworkBrain resources. NetworkBrain IE system can download any NetworkBrain resources (that apply to your specific IE version) from Knowledge Cloud constantly. These resources, once downloaded, will be deployed automatically in your IE system.

There are three ways to perform a resource update in your IE system.

▪Auto-update Resources (Recommended) — the system will fetch the latest resources from Knowledge Cloud constantly (twice per day between 12AM and 3AM, 12 PM and 3 PM at local time zone) in a fully automatic manner. See Auto-updating Resources for more details.

▪Manually Trigger Resource Update — manually initiate the auto-updating process and apply the latest resources (if any) immediately to the system. See Manually Triggering Resource Update for more details.

▪Manually Import Resources — manually upload the latest resource package into the system when your servers are not allowed to access the Internet. See Manually Importing Resources for more details.

Auto-Updating Resources

1.Log in to the System Management page.

2.In the System Management page, select Operations > Resource Update.

3.Select the Auto Update from NetBrain check box.

Tip: If your Web Server has no Internet access, you can click Proxy Settings to set up a proxy server to access the internet.

Manually Triggering Resource Update

1.Log in to the System Management page.

2.In the System Management page, select Operations > Resource Update.

3.Click Check Update Now to see if there is any available new resource package and apply the updates to the system if any.

Note: Once the button is clicked, any available updates will be downloaded and installed automatically.

Tip: If your Web Server has no Internet access, you can click Proxy Settings to set up a proxy server to access the internet.

Manually Importing Resources

1.Log in to the System Management page.

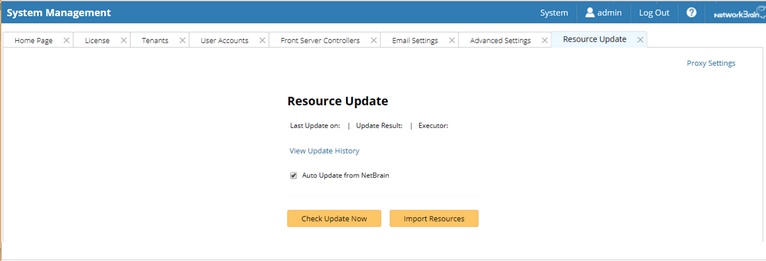

2.In the System Management page, select Operations > Resource Update.

3.Check the last update time and result to see if your resources need an upgrade.

Tip: To check historical update records and results, click View Update History.

4.Click Import Resources, select the new resource package you obtained from NetBrain Support Team.

Resource List

The following resources can be auto-updated by Knowledge Cloud:

▪Driver/Device Type/Vendor Model Table

▪Qapp/Gapp/Parser Library

▪Runbook Template/(Default) Data View Template

▪Device Group/Device Icon/Image/Media Type/Topology Link Type (IPv4, IPv6, etc.)

▪GDR Properties/Interface Type Translation

▪Tech Spec/Schema/Visual Space/Network Tree Category and View

▪Platform Plugin/Global Python Scripts (including Path Scripts)

▪SPOG URL/API Adapter

▪Variable Mapping/Global Variable

▪Golden Baseline Dynamic Analysis Logic
