You can compare the current CLI result with historical results and Golden Baseline stored in your NetworkBrain system to view changes and historical details.

▪Comparing with Golden Baseline

▪Comparing Historical Results

Comparing with Golden Baseline

Proceed with the steps below to compare the current CLI command result with Golden Baseline to view the changes and view the historical details.

1.Apply a parser in the CLI Command node. The system automatically compares the data retrieved by the parser with Golden Baseline and generates alerts and highlights for any data unit that deviates from the Golden Baseline in the result pane.

2.Click a variable in the result pane to open the Data Details pane and view the historical data of the variable over a period.

3.Select variables, define alerts, and click Start to periodically display the live variable values on the map.

Comparing Historical Results

Compare any two historical CLI results to view what has changed:

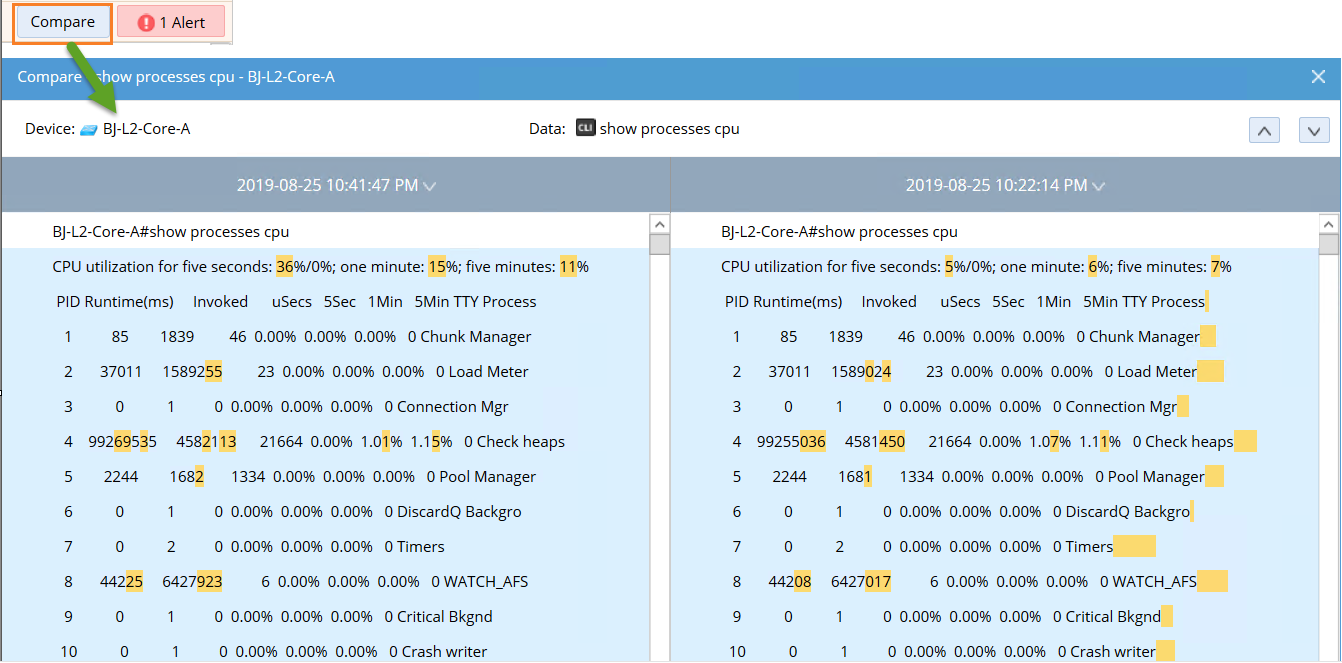

1.Click Compare in the CLI command node.

2.Select the time point for comparison. The system will compare the differences between the command results at the two-time points. The differences are highlighted.
