You can call parsers in many modules of your NetworkBrain system, such as Qapp, Data View Template and Schedule Parser. This section introduces how to apply a parser in the following modules:

▪Calling a Parser in Instant Qapp

▪Calling a Parser in Qapp Editor

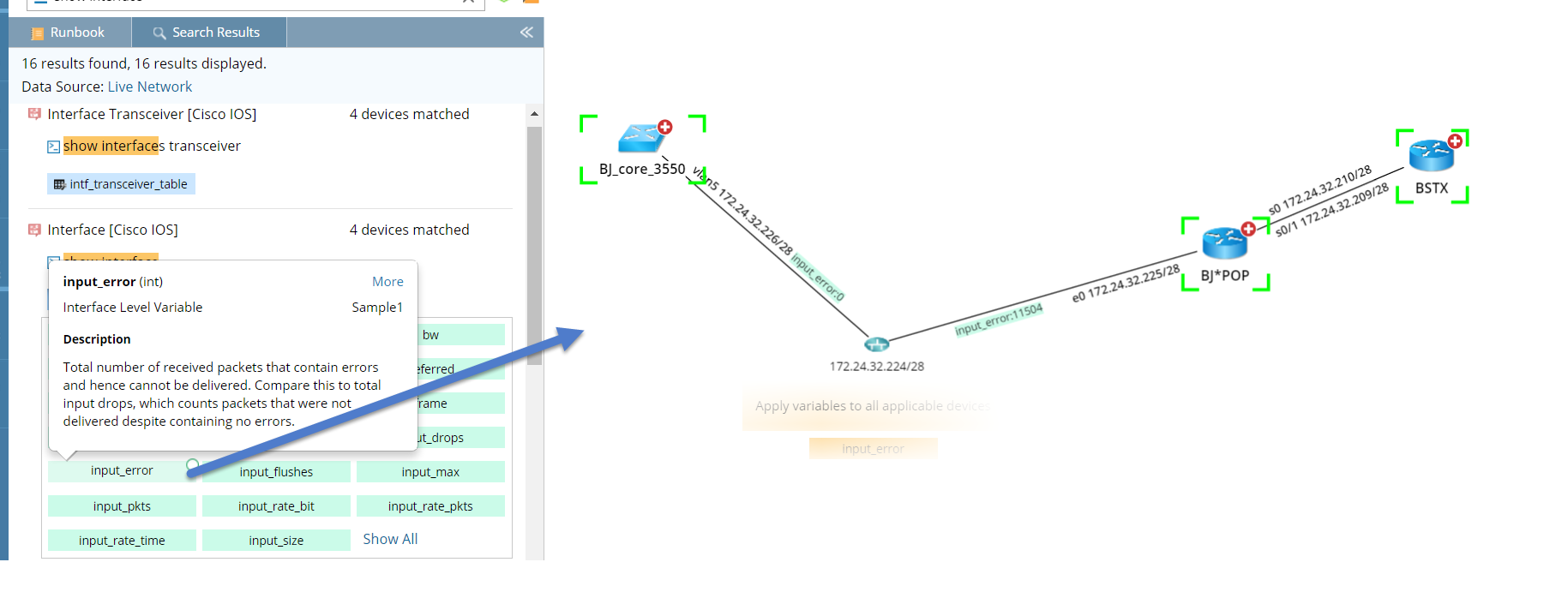

Calling a Parser in Instant Qapp

You can call a parser and its variables and drag the variables to a map for data viewing.

1.Search for a specific parser in the map search bar.

2.Drag a variable to the devices on the map.

3.The real-time value of the variable will be displayed once retrieved.

See Searching for CLI Commands and Mapping Matched Results for more details.

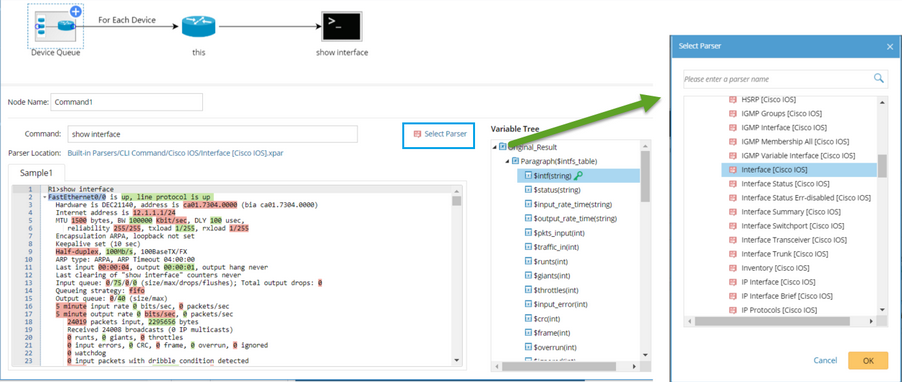

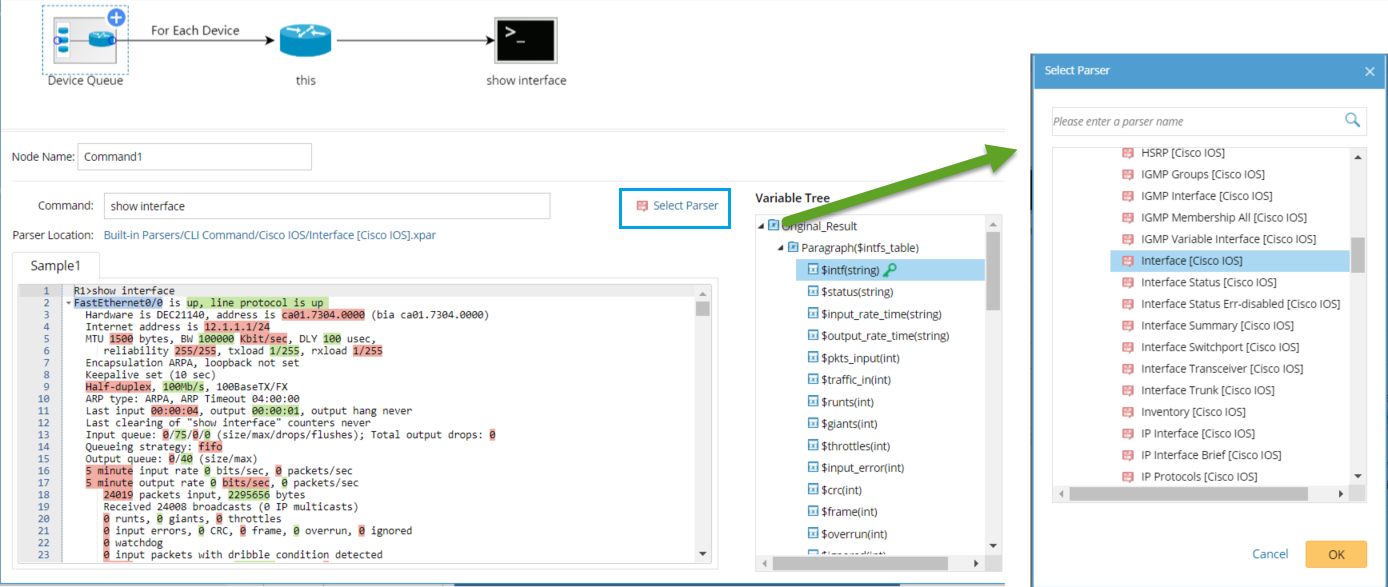

Calling a Parser in Qapp Editor

You can call a parser and its variables when creating a Qapp: in the Command node of a Qapp, click Select Parser. The variables of the selected parser will be auto-loaded in the variable tree.



See also:

▪Parser

▪Variable
