Design reader provides you with quick access to view device configurations on a map.

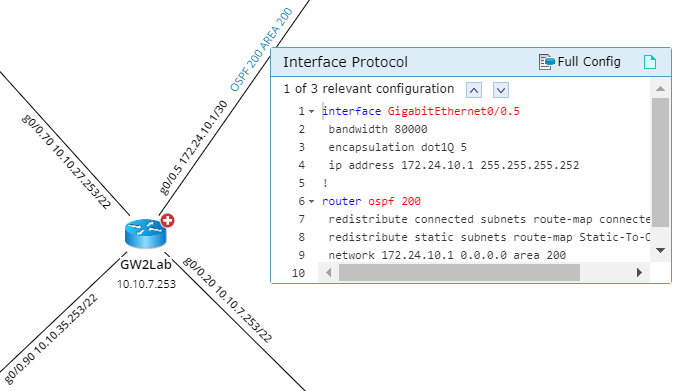

1.Rotate your wheel button forward to zoom in to display more data units. Point to a link label, for example, interface protocol. A tip box opens with the relevant configuration displayed.

Tip: To pin the design reader tip on the map, click in the pane. To move the design reader tip, point to the tip header, hold your left mouse button and then drag.

2.If multiple matched results are found in the configuration file, click the icon to view more relevant configurations.

3.To add the configurations to the current map as a note, see Creating Device Notes on Map for details.

4.To browse the full configuration of the device, click Full Config.
